C11 (Rev. 8) User Manual

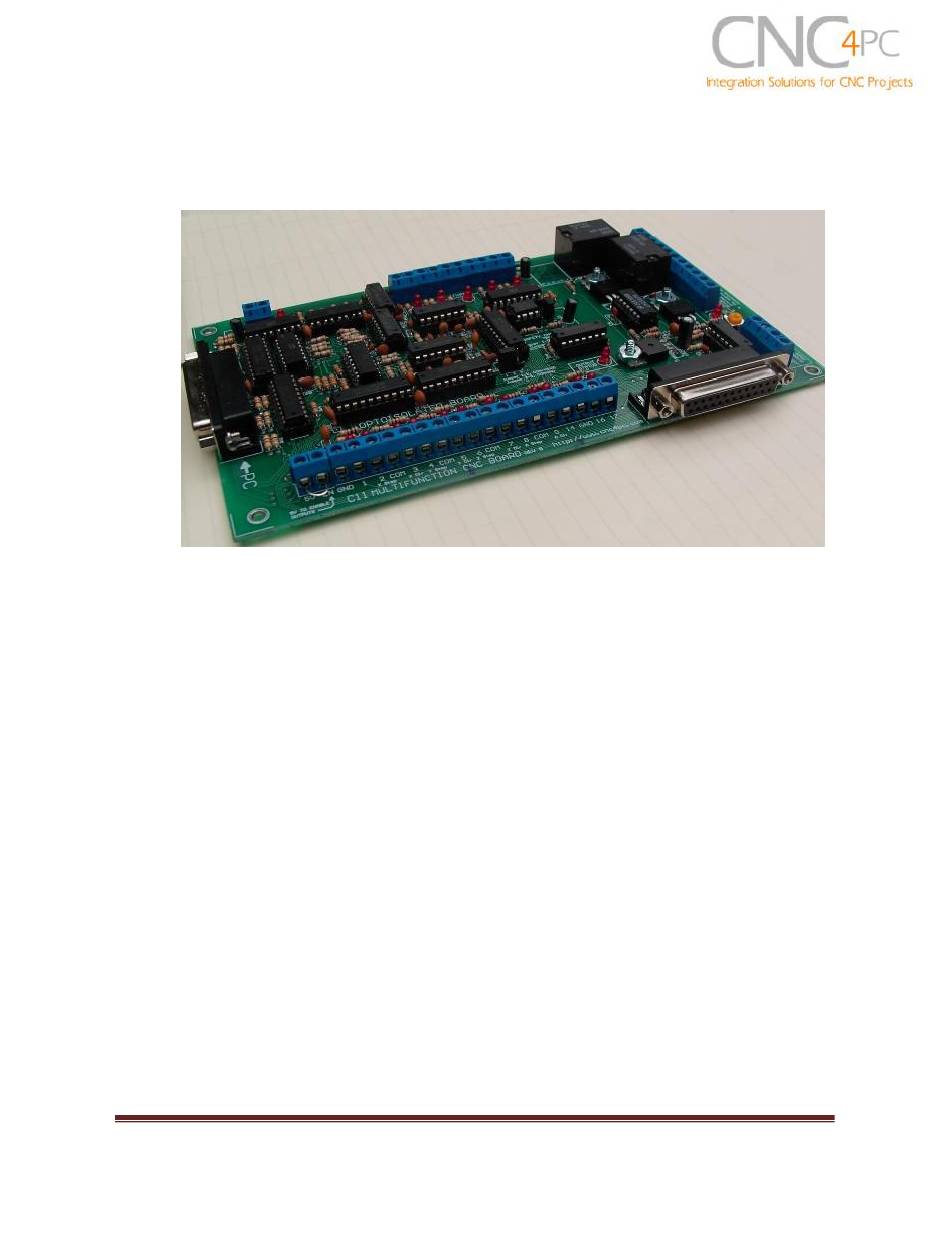

C11- MULTIFUNCTION CNC BOARD Rev. 8
1. Overview
This card has been designed to provide a flexible interface and functions to your
computer projects, by using the parallel port control software. This board provides
a faster way to connect devices and reduce the possibility of wiring errors.
2. Features
• Fully optosiolated
The card isolates connections to
protect your computer from short-
circuit.
An
opto-isolator
integrated circuit that transmits the
signal through an encapsulated LED
and phototransistor. When the signal
is
on,
the
LED
phototransistor captures it and relays
the signal. The signals are transmitted
through light and not through physical
connections. In this way, a power
surge has no way of reaching your
computer. That is the reason why this
card has two power connections. One
Revision: 02/12/2008
User manual Rev. 1
is
an
lights
up,
the
http://cnc4pc.com/TechDocs/C11R8_User_Manual.pdf
power connection is power powering
the circuit that interacts with the PC,
the other connection is for powering
the circuit that interacts with your
CNC system. Extra precautions have
been taken when designing this
circuit, by taking into consideration
the extremely high voltages that
stepper drivers can achieve and lack
of experience that some users could
have in wiring circuits of this kind.
This board keeps the grounds of the
PC isolated from the grounds of the
rest of your CNC circuit.
1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C11 and is the answer not in the manual?

Questions and answers

Related Manuals for CNC4PC C11

Summary of Contents for CNC4PC C11

  • Page 1 C11 (Rev. 8) User Manual C11- MULTIFUNCTION CNC BOARD Rev. 8 User manual Rev. 1 1. Overview This card has been designed to provide a flexible interface and functions to your computer projects, by using the parallel port control software. This board provides a faster way to connect devices and reduce the possibility of wiring errors.
  • Page 2 C11 (Rev. 8) User Manual provided with an extra pin (EN) that • Support for up to 150 KHz allows control card optoisolation step externally by enabling or disabling direction signals. outputs. The card must have +5vdc New on this revision is that the...
  • Page 3 C11 (Rev. 8) User Manual GND according to your needs. There • Has extra DB25 female is a jumpers that allows you to select connection for output. +5VDC or GND for the COM pins. You can use this card to optoisolate...
  • Page 4 C11 (Rev. 8) User Manual 1. Specifications. DIGITAL INPUT SPECIFICATIONS Numbers of inputs On-state voltage range 2 to 5V DC Minimum on-state input current 1.1 mA Typical on-state current 1mA @ 5V DC Maximum off-state voltaje 0.8V Maximum off-state current 1.1 mA...

  • Page 5: Functional Block Diagrams

    C11 (Rev. 8) User Manual 2. Functional Block Diagrams 4.1 Output simplified functional block diagram Fig. 1 Simplified functional block diagram for the output. An initial buffer is used considering the low current a parallel port can sink and source. Using an RC Low Pass filter followed by a Schmitt Trigger gate help to reduce the effect of the noise from driver or other devices, eliminating the high frequency components of the noise and generating a fast changing signal.

  • Page 6: Wiring Diagrams

    C11 (Rev. 8) User Manual 3. Wiring diagrams Different kind of sensors and switches can be connected to inputs board, but this board support only TTL signal, so if you need to connect devices that generates 12V or 24V signal in some cases is necessary add external resistors.
  • Page 7 C11 (Rev. 8) User Manual Fig. 5 Wiring diagram to connect in parallel NPN open collector proximity sensors. Fig. 6 Wiring diagram to connect NPN proximity sensors with internal pull up resistor. Revision: 02/12/2008 http://cnc4pc.com/TechDocs/C11R8_User_Manual.pdf 7/18...
  • Page 8 Board R Value (12V) R Value (24V) C11 Rev. 8 470Ω 1KΩ Table 1. R value to Connect PNP open collector proximity sensor with the C11. Fig. 8 Wiring diagram to do an “Auto Tool Zero” Revision: 02/12/2008 http://cnc4pc.com/TechDocs/C11R8_User_Manual.pdf 8/18...

  • Page 9: Special Functions

    C11 (Rev. 8) User Manual 4. Special Functions 4.1 Safety Charge Pump “SCHP”. (Pin 17) This board takes advantage of Mach ability to send a specific frequency through one of the pins of the parallel port when the program is in control of the system.
  • Page 10 C11 (Rev. 8) User Manual Selecting the SCHP operation mode. There is a jumper that allows you active or deactivate de SCHP. 1-2: SCHP OFF 2-3: SCHP ON Note: When the Safety Charge Pump is ON and there is a valid signal present, on the terminal for pin 17, you will get a high.
  • Page 11 C11 (Rev. 8) User Manual Wiring: Before connecting anything, please be sure to read your VFD’s manual and make sure you understand all the safety issues. Please check the wiring guide and wiring samples here: http://cnc4pc.com/Tech_Docs/C6R5_WG.pdf http://cnc4pc.com/Tech_Docs/C6R5_WS.pdf Configuring the Control Software: It is strongly recommend you read your control software’s manual.
  • Page 12 C11 (Rev. 8) User Manual Fig. 11. Spindle Setup screenshot. Go to Config / Motor Tuning / Spindle. On Steps per unit put 1,000, set velocity to maximum. For Acceleration, choose the acceleration that you feel comfortable with. Start slow, increase acceleration as you test your system. Under Step Pulse length, use a number from 3 to 5, but start with 3.
  • Page 13 C11 (Rev. 8) User Manual After configuring the Mach, these steps should be followed. Step 1. Ensure that all external power sources are set to OFF. Step 2. Connect the power supply to the Power Inputs Connectors (X1). Step 3. Turn on the external supplies Step 4.

  • Page 14: Using The Com Configuration Jumper

    C11 (Rev. 8) User Manual Using the COM configuration jumper. This is for selecting the value to expect +5vdc. There is a jumper get at the COM terminals found that allows you to select +5VDC or next step direction GND for the COM pins.

  • Page 15: Troubleshooting

    C11 (Rev. 8) User Manual 7. Troubleshooting. SYMPTOM 1: THE BOARD DOES NOT REACT TO THE SIGNAL. POSSIBLE CAUSE POSSIBLE SOLUTIONS Pin conflict or mach3 configuration. Go to the device manager in windows, It is possible that the port address...
  • Page 16 C11 (Rev. 8) User Manual SYMPTOM 2: THE ANALOG OUTPUT DOES NOT REACH THE 10VDC. POSSIBLE CAUSE POSSIBLE SOLUTIONS Insufficient pulse width. It is possible In Mach X, go to Config / Motor Tuning / that the signal pulse width is not Spindle.
  • Page 17 C11 (Rev. 8) User Manual SYMPTOM 5: A I/O PIN MIGHT NOT BE WORKING. POSSIBLE CAUSE POSSIBLE SOLUTIONS A chip may have gone bad. These These chips are inexpensive and readily buffers could act as fuses for the available. You can order them here: signals, and they can go bad because http://www.cnc4pc.com/Store/osc/index.
  • Page 18 Arturo Duncan are not liable for any accidents resulting from the improper use of these devices. The C11 is not fail-safe device, and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
