Max Unicast Addresses
Note: Bridge port is fixed and cannot be modified. If you want to change it, delete
the profile and create a new one.

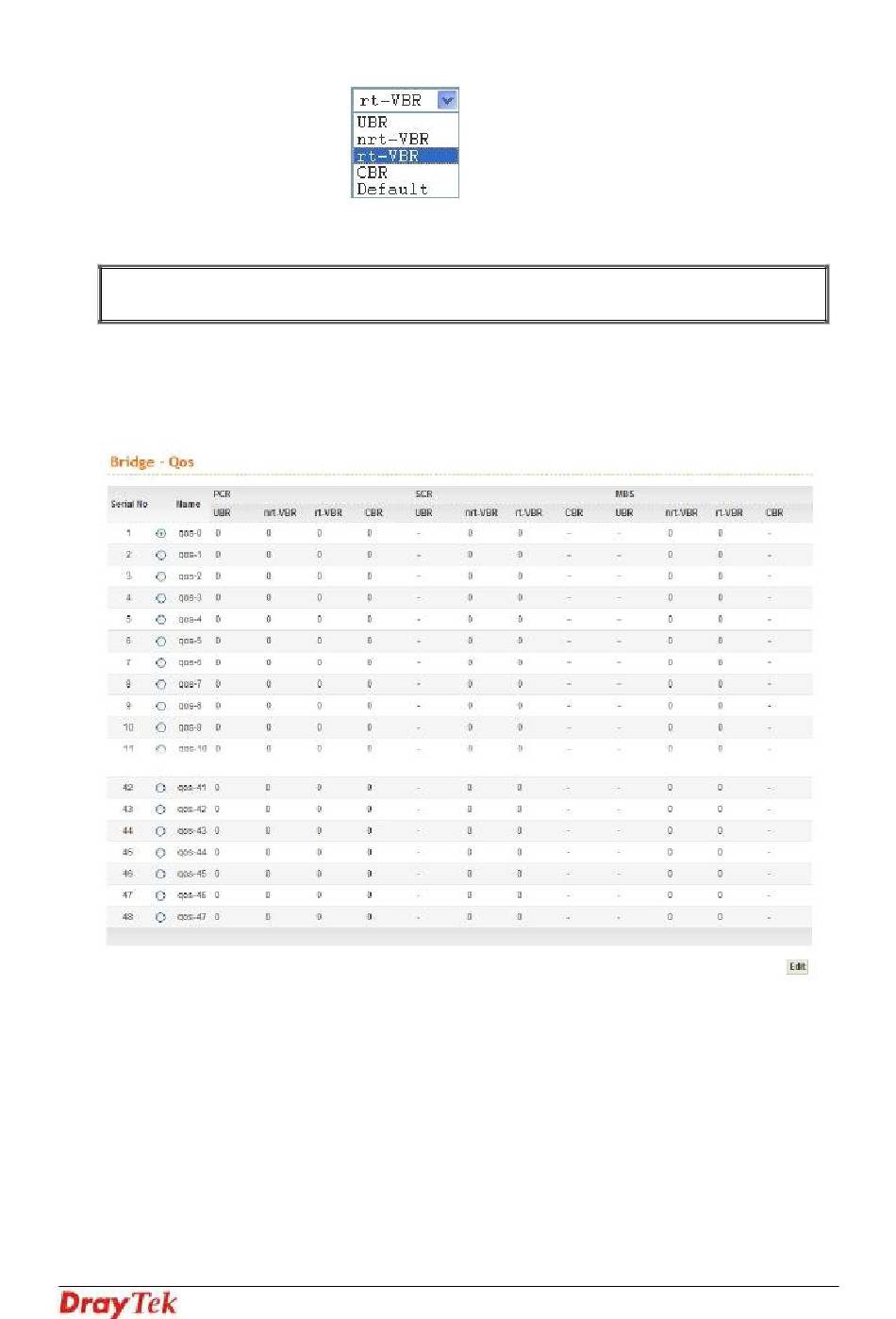

3.4.3 Qos Profile

A profile with a set of parameters is used to quantify the quality of service provided.
Serial No
Name
PCR/SCR/MBS
Edit
Configure max learned unicast addresses number. The
default value is 64.Uplink port(193) default value is 256.
Display the number of the profiles that system offered.
1 – 48 represents port 1 to port 48.
Display the QoS profile name for each port.
Display the values of UBR, nrt-VBR, rt-VBR and CBR
for PCR/SCR/MBS.
PCR represents Peak Cell Rate.
SCR represents Sustainable Cell Rat.
MBS represents Maximum Burst Size.
Click this button to modify the selected Qos profile.
49 User's Guide
