Firmware upgrade can be done from a console port, too. The following example was run
on a Windows environment.
1.
Download the newest firmware from the DrayTek Website (www.draytek.com.tw)
or FTP site (ftp.draytek.com) on your computer first.
Connect the RJ45 connector of console cable to the console port on Vigor device and
2.
the DB9 connector of the console cable to the RS232 port on the PC.

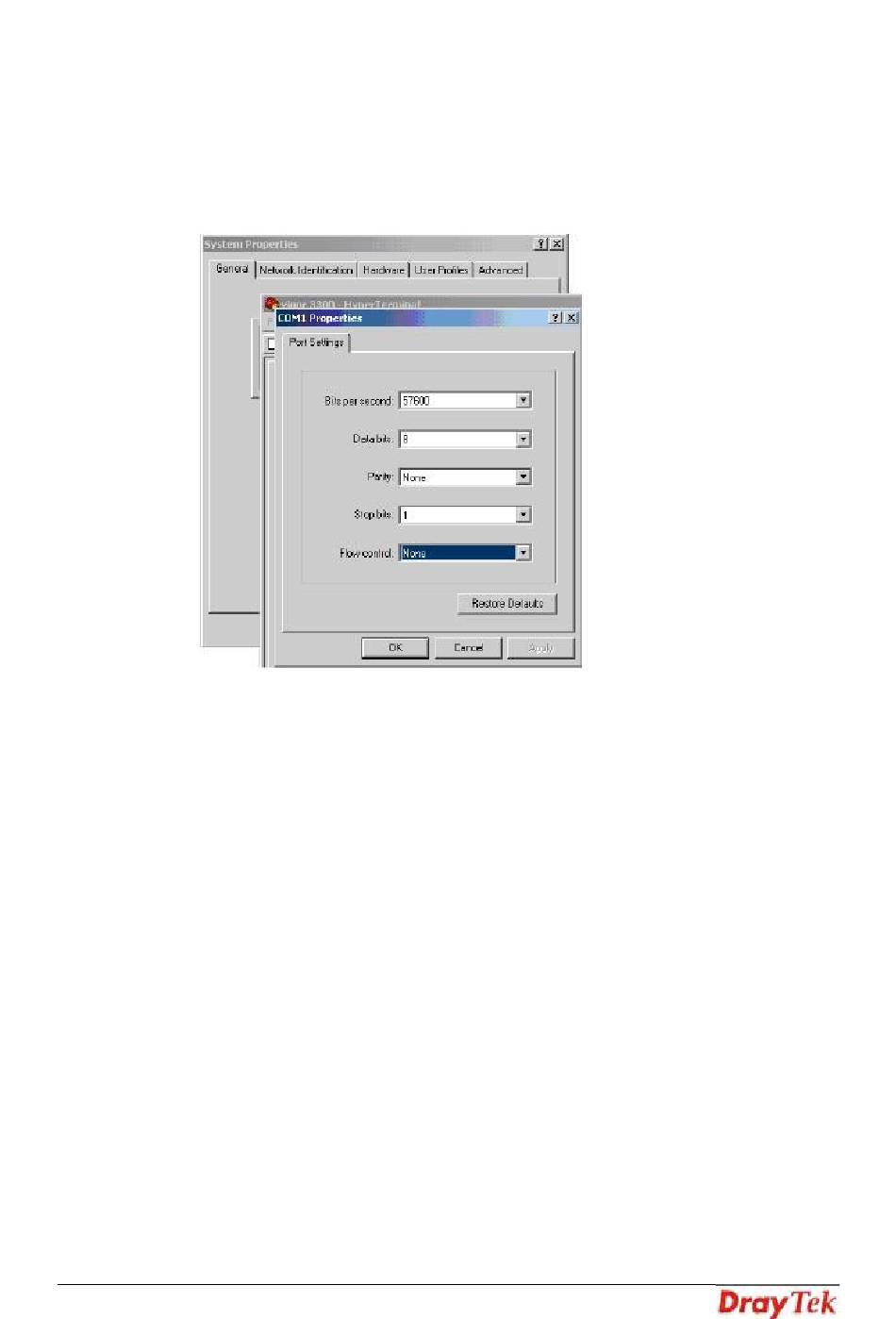

The default setting of the console port is "baud rate 57600, no parity, and 8 bit with
1 stop bit."
Power on Vigor device, then press ENTER before the system reboots completely.
3.
4.
Open Hyper Terminal on the PC.
will display the following message:
User's Guide
Now, the device can accept a TFTP download and
32
