MPOA
Channel
ATM
DSL
Create
Delete
Creating a PVC

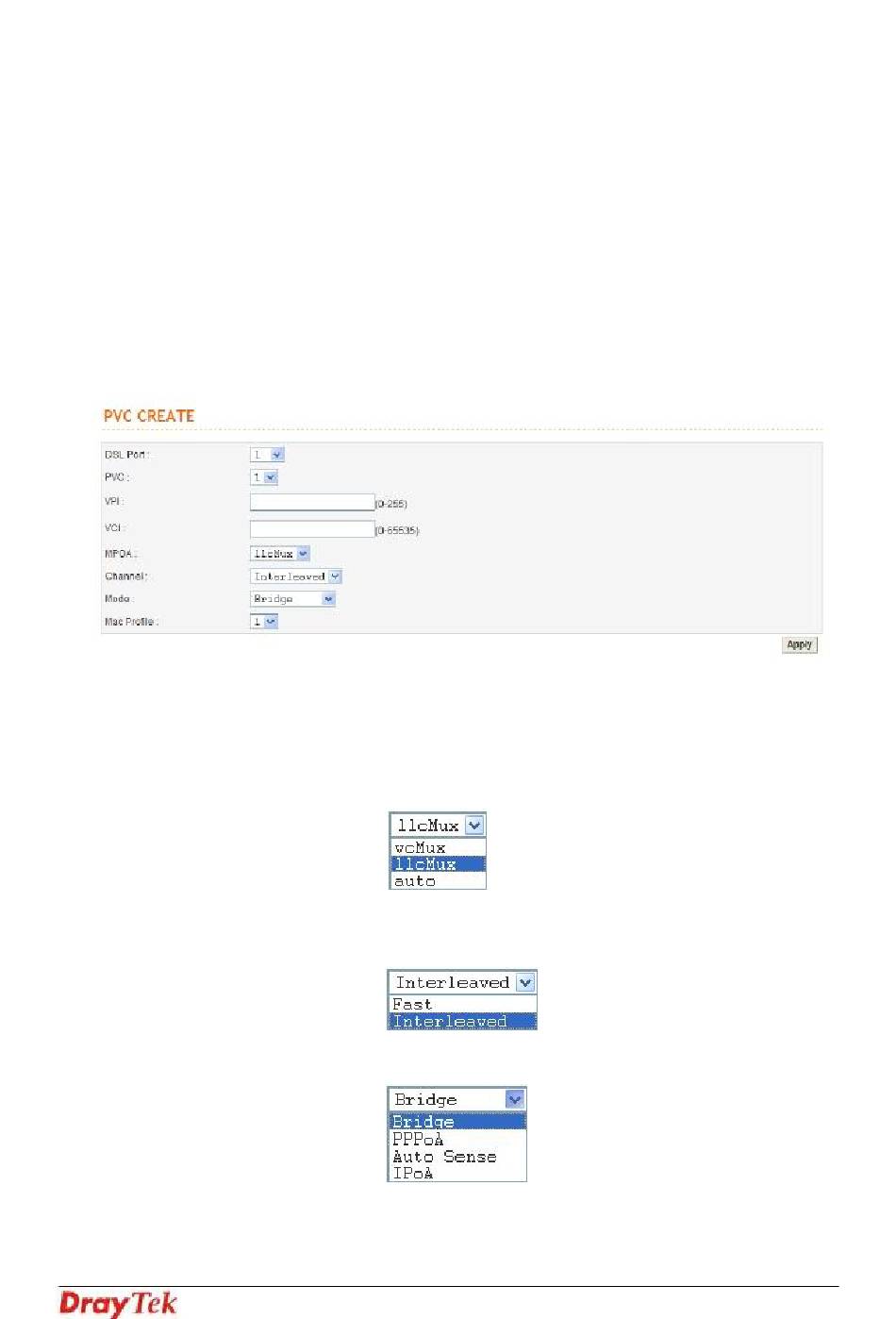

Click Create to generate a new PVC profile. Below shows the detailed web page:
DSL Port 1 – 48
PVC 1 – 8
MPoA
Channel
Mode
Mac Profile
Display the data encapsulation method used over the
AAL5.
Display the physical ADSL line mode.
Display the ATM interface name.
Display the DSL interface name.
Click this button to create a new PVC profile.
Click this button to delete the selected PVC profile.
Choose the number (DSL port) to make all the
configuration will be applied to the created PVC.
Use the drop down menu to choose the PVC number.
Use the drop down menu to choose the data
encapsulation method to be used over the AAL5.
It is used to select the ADSL physical line mode. Fast
and Interleaved represent different algorithms for
DSL data transmission.
Use the drop down menu to choose the type (protocol)
for this PVC.
It will be available when IPoA mode is selected. Use
the drop down menu to choose a number of MAC
43 User's Guide
