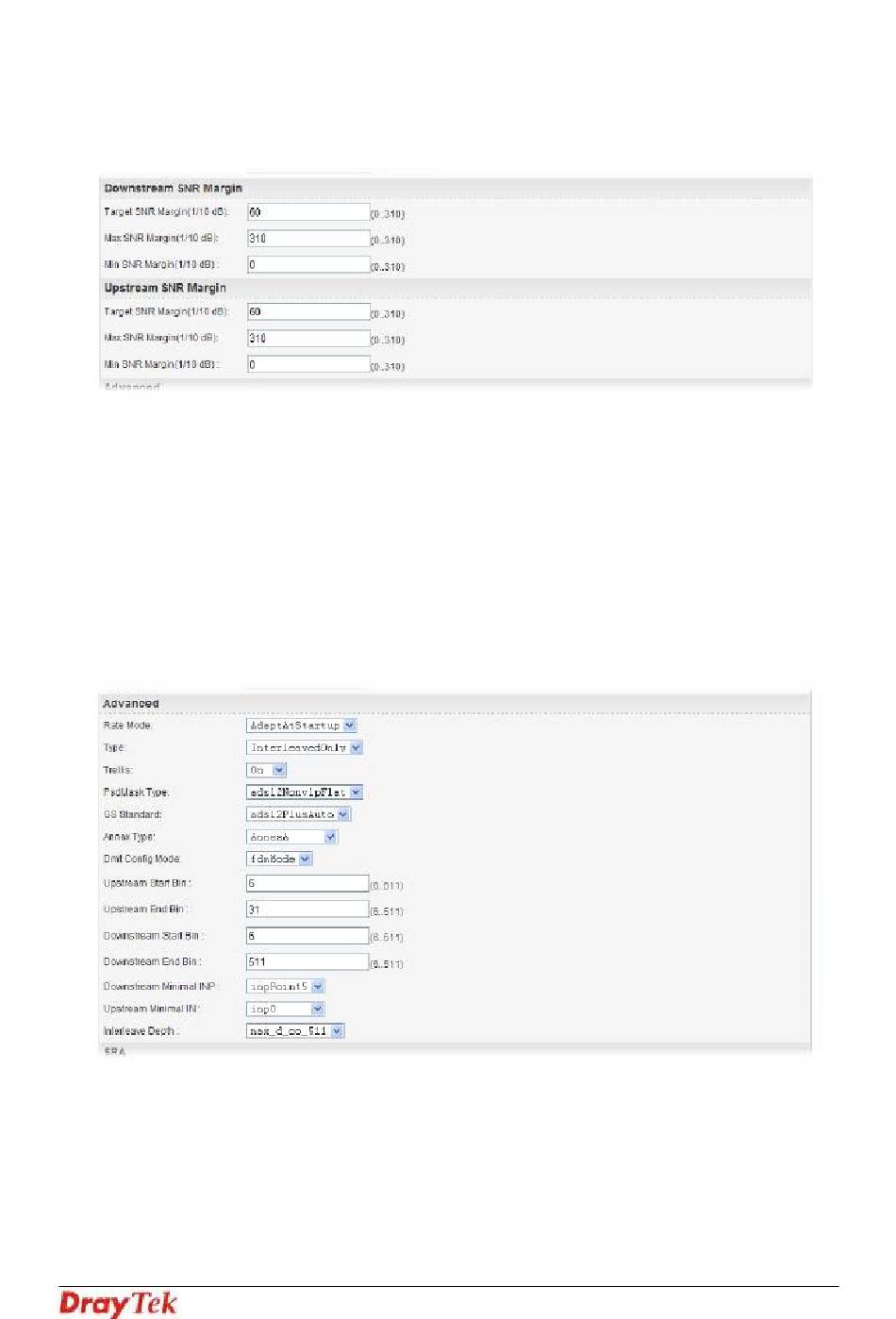

Downstream/Upstream SNR Margin
Rate Mode
Type
Trellis
PsdMask Type
Fast Max TX Rate (bps) - Configure Maximum Transmit
rate for 'Fast' channel, in bps.
Fast Min TX Rate (bps) - Configure Minimum Transmit
rate for 'Fast' channel, in bps.
DSL Downstream/Upstream (Singal to Noise Ratio)SNR
related parameter:
Target SNR Margin - the modem must achieve with a BER of
10 to the power 7 or better to successfully complete
initialization for Noise Margin.
Max SNR Margin - Configure Maximum Signal/ Noise Margin
for rate downshift or upshift.
Min SNR Margin – Configure Minimum Signal/ Noise Margin
for rate downshift or upshift.
Defines what form of transmit rate adaptation is
configured on this device.
It is used to configure the ADSL physical line mode.
This parameter enables/disables trellis coding.
This parameter selects the PSD mask option to be used.
