Bridging Mode
Egress Port
Untag Port
Editing VLAN

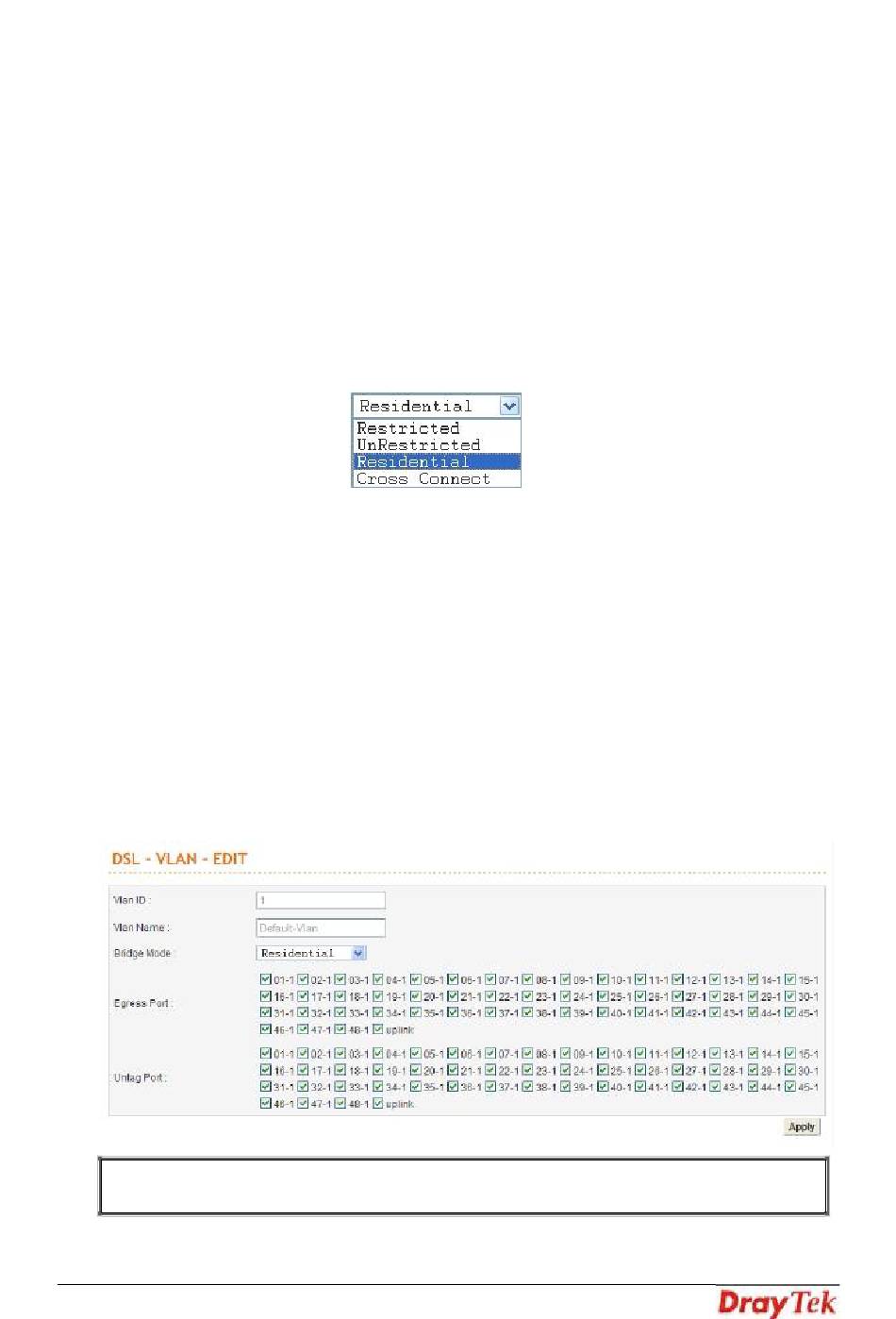

Click the radio button of the VLAN profile you want to edit. Next, click Edit to open it.
Below shows the detailed web page.
Note: Vlan ID and Vlan Name are fixed and cannot be modified. If you want to
change it, delete the profile and create a new one.
User's Guide
Choose the mode for the selected VLAN used.
Restricted –Switching of traffic from one CPE to another
CPE is prohibited. In case traffic coming from one CPE /
downlink is meant for another CPE / downlink, it is
dropped - effectively achieving VLAN isolation between
CPEs / stacked DSLAMs.
Unrestricted - Allow traffic passing between any two
devices in the same VLAN.
Residential - All traffic originating from the CPE ports
are sent towards the uplink paths – without any destination
address MAC lookup.
Cross Connect - There is no learning and lookup, and
there are at most two member ports for it.
The set of ports are permanently assigned to the egress list
for this VLAN by management.
Choose the egress port to be applied under such VLAN
profile.
The set of ports should transmit egress packets for this
VLAN, as untagged.
Choose the untag port to be applied under such VLAN
profile.
