2.4.3 Scenario – Cascade Installation
For Master device and Slave device, at least there are 48 ADSL CPE routers can be
connected to outside Internet via the Master device.

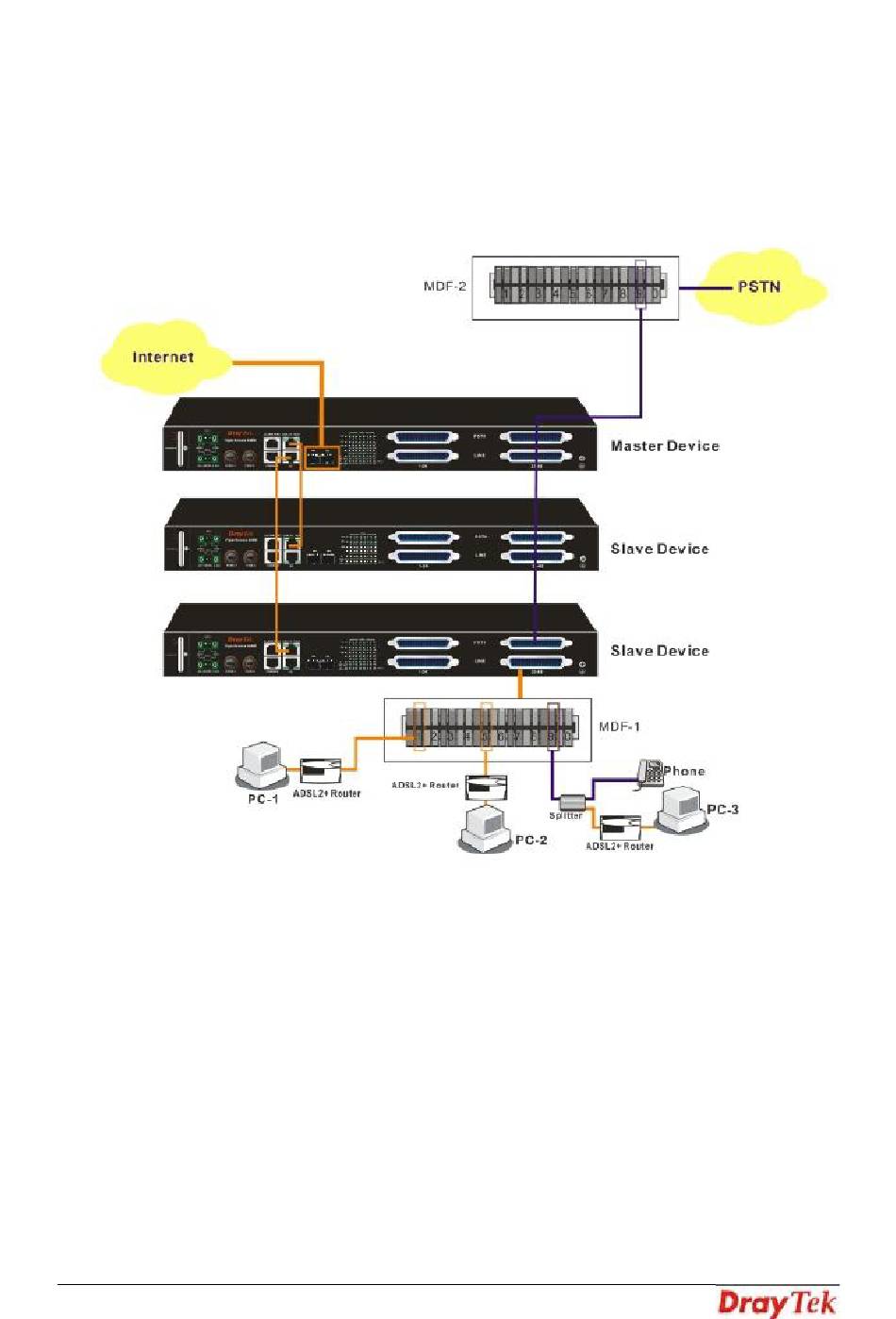

The following picture shows the sample connection for A48 devices. Here we take PC-1,
PC-2 and PC-3 as the examples that connecting to the Slave device directly and wanting
to access the Internet through the Master device.
In the above picture, the user of PC-3 wants to use phone and access the Internet at the
same time; yet PC-1 and PC-2 just want to access the Internet through the Slave and
Master devices. As for the connection, please follow the steps below:
1. Connect PC-3 to number 9 of MDF-1, PC-2 to number 5 of MDF-1 and PC-1 to
number 1 of MDF-1.
Connect the MDF-1 to Line port of the Slave device.
2.
3. Connect the Phone port of the Slave device to the matching connector (in this case,
it is number 9, be careful and not to misconnect) to MDF-2 which will be connected
to PSTN. This step is just useful for PC-3 for the user wants to call out through the
connected Slave device.
Slave devices can be connected to G1 or G2 port of the Master device with Ethernet
4.
cable.
Connect the Master device and ISP with Fiber cable through G3 or G4 port.
5.
