2.4.2 Scenario – Standalone
A48 is used standalone for it cannot manage any slave device. In such condition, it can
connect and control 24 ADSL CPE routers with DB-21 cable through MDF connection.

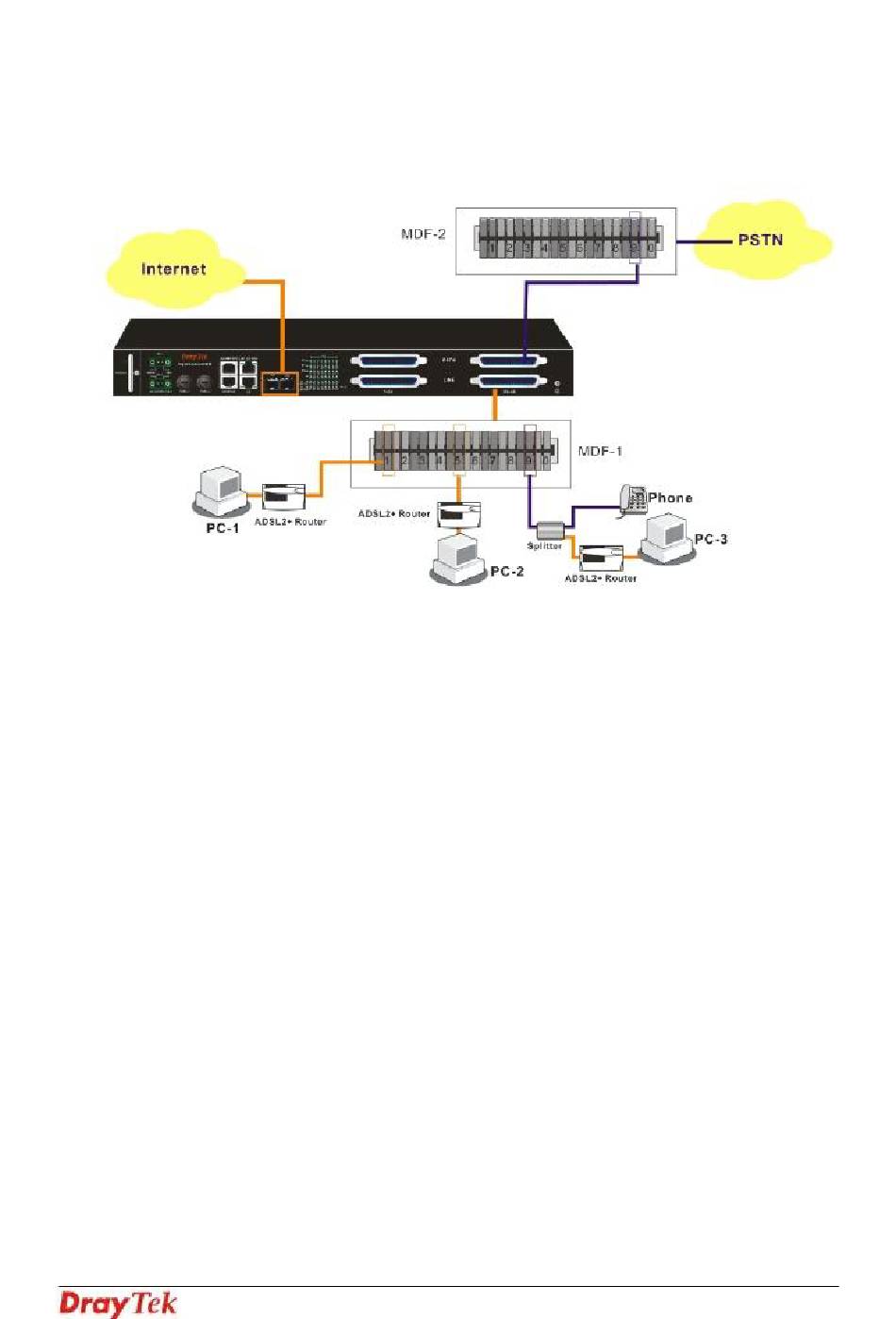

In the above picture, the user of PC-3 wants to use phone and access the Internet at the
same time; yet PC-1 and PC-2 just want to access the Internet through the A48 device. As
for the connection, please follow the steps below:
1. Connect PC-3 to number 9 of MDF-1, PC-2 to number 5 of MDF-1 and PC-1 to
number 1 of MDF-1 with Ethernet cable.
Connect the MDF-1 to Line port of the A48 device.
2.
3. Connect the Phone port of the A48 device to the matching connector (in this case, it
is number 9, be careful and not to misconnect) to MDF-2 which will be connected to
PSTN. This step is just useful for PC-3 for the user wants to call out through the A48
device.
Connect the device and ISP with Fiber cable through G3-G4 port.
4.
5. With such connection, all the users of the PCs can access the Internet through
G3-G4 connector of the device. Yet only PC-3 can call out with a telephone set
directly.
The device can connect 24 ADSL CPE routers which supported by the DB-21 cables. If
you want to expand the usage for more users, we recommend you to purchase A48
device.
