Short haul SX multi-mode
interface

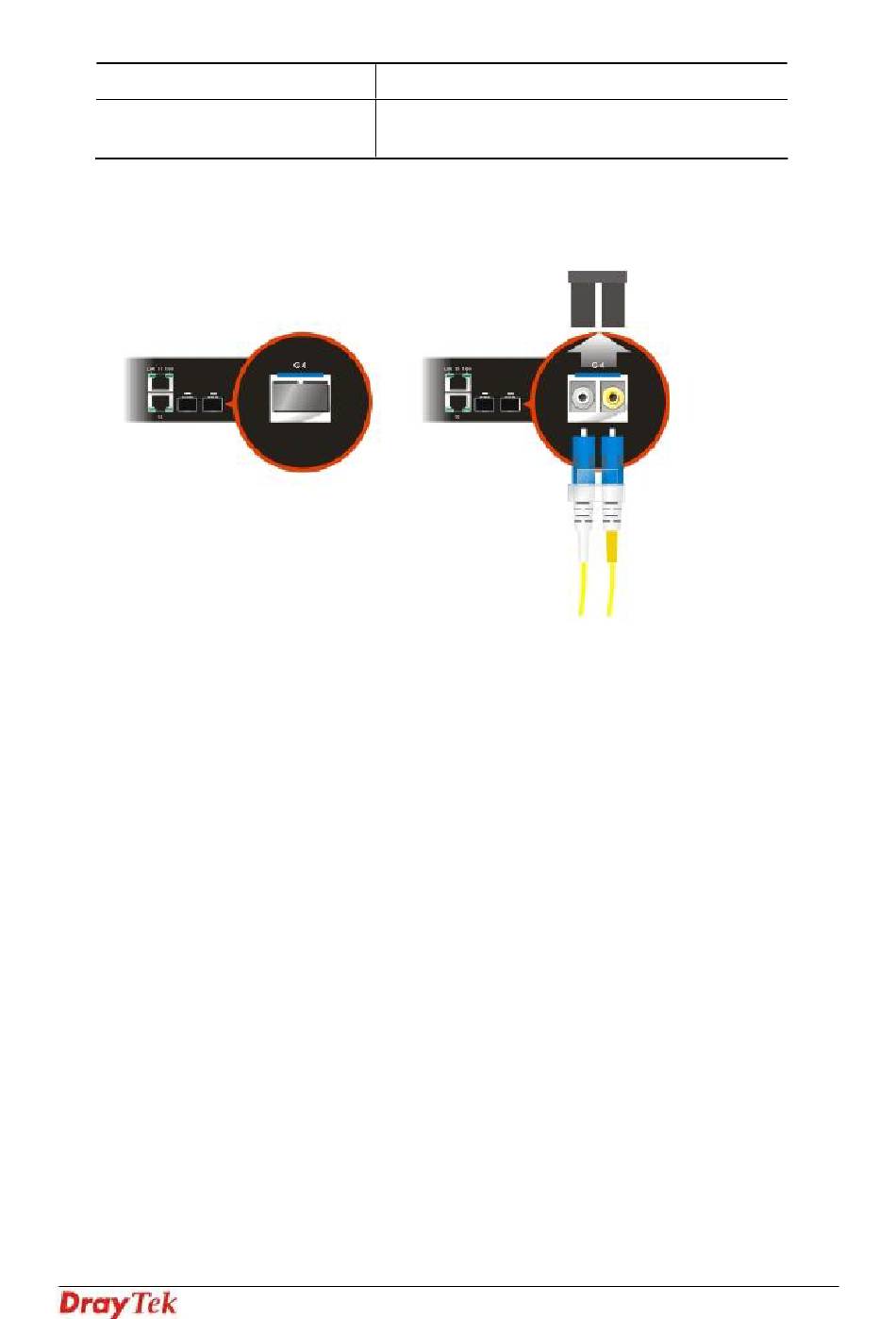

The two types of interface are visually and functionally similar. Installation procedures
are the same. This dual port has both connectors on transmit (upstream) and a receiving
(downstream) is shown below.
Follow the steps below to connect the fiber channel:
1.
Read and understand the previous warnings and alarm.
2.
Remove the protective caps from the fiber optic connector and from the external data
cable.
Attach the external cable to the recessed connector on the faceplate.
3.
4.
To avoid exposure to laser radiation, plug the protective cap. Store protective cap
on the clear place to use when there is no optical fiber connection or on stock.
Multi-mode (MM), 50/125 or 62.5/125-micron
