3.4.1 VLAN

VLAN is a group of hosts with a set of requirements that communicate when they are
attached to the Broadcast domain, regardless of their physical locations. In IPDSLAM, it
supports up to 512 VLAN at one time.
Serial
Vlan id
Vlan name
Egress Port
Untag Port
Bridging Mode
Edit
Create
Delete
Creating VLAN

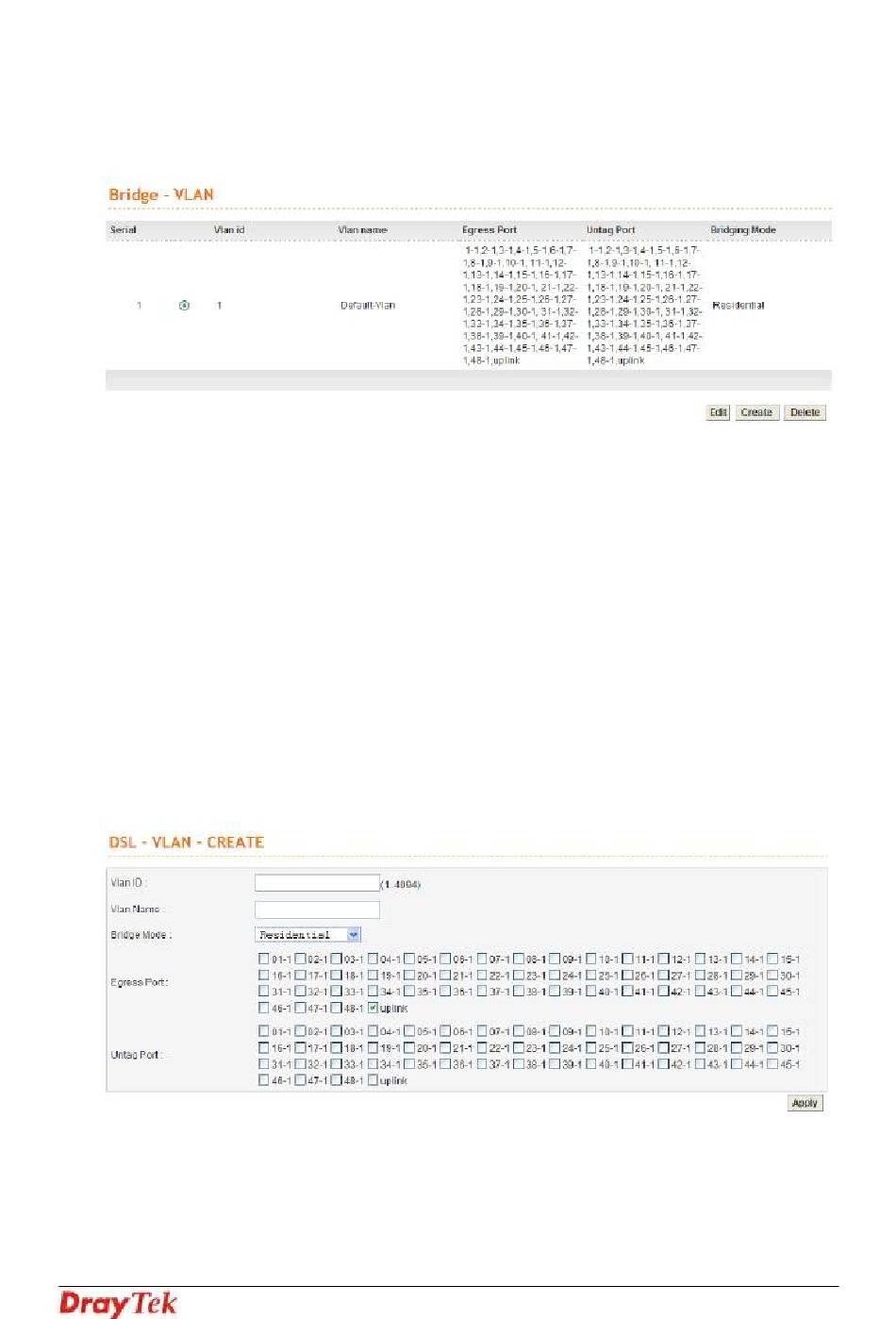

Click Create to generate a new VLAN profile. Below shows the detailed web page.
Vlan id
Vlan name
Display the number of the VLAN profile.
Display the ID number of the VLAN profile.
Display the name of the VLAN profile.
Display the egress port value for port 1- port 48.
Display the untag port value for port 1 - port 48.
Display the mode for the selected VLAN used.
Click this button to modify the existed VLAN profile.
Click this button to create a new VLAN profile.
Click this button to delete the selected VLAN profile.
Type the identification number of the VLAN profile. The
range is from 1 to 4094.
Type the name of the VLAN profile.
