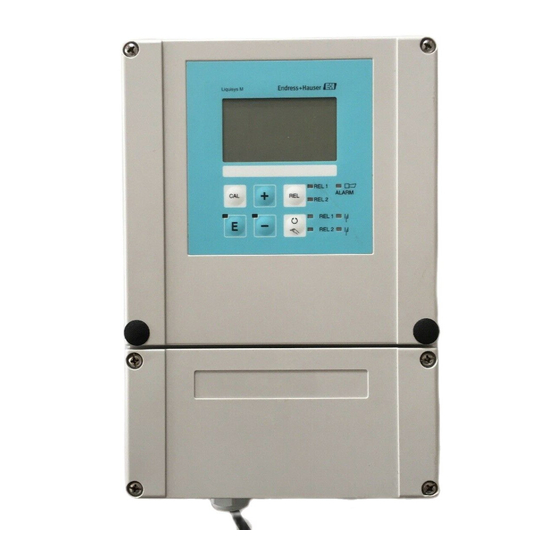

Operating Instructions

Liquisys M CUM223/253
Transmitter for turbidity and suspended solids
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liquisys M CUM223 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Liquisys M CUM223

Summary of Contents for Endress+Hauser Liquisys M CUM223

  • Page 1: Operating Instructions

    Products Solutions Services BA00200C/07/EN/14.13 71212639 valid as of: software version 2.42 Operating Instructions Liquisys M CUM223/253 Transmitter for turbidity and suspended solids...
