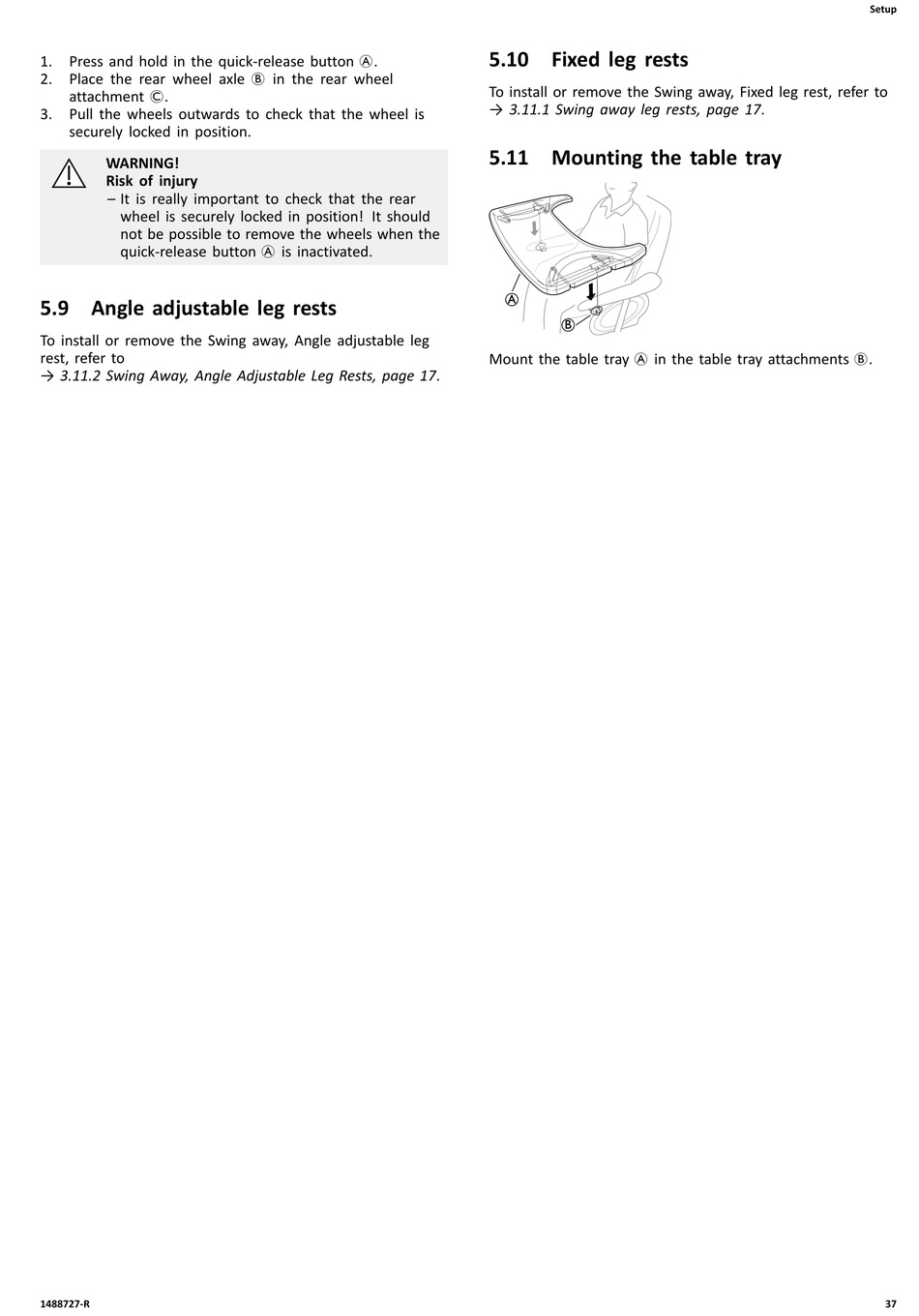

1. Press and hold in the quick-release button A.
2. Place the rear wheel axle B in the rear wheel
attachment C.
3. Pull the wheels outwards to check that the wheel is
securely locked in position.
WARNING!
Risk of injury
– It is really important to check that the rear
wheel is securely locked in position! It should
not be possible to remove the wheels when the
quick-release button A is inactivated.

5.9 Angle adjustable leg rests

To install or remove the Swing away, Angle adjustable leg
rest, refer to
→ 3.11.2 Swing Away, Angle Adjustable Leg Rests, page 17.
1488727-R

5.10 Fixed leg rests

To install or remove the Swing away, Fixed leg rest, refer to
→ 3.11.1 Swing away leg rests, page 17.

5.11 Mounting the table tray

A
B
Mount the table tray A in the table tray attachments B.
Setup
37
