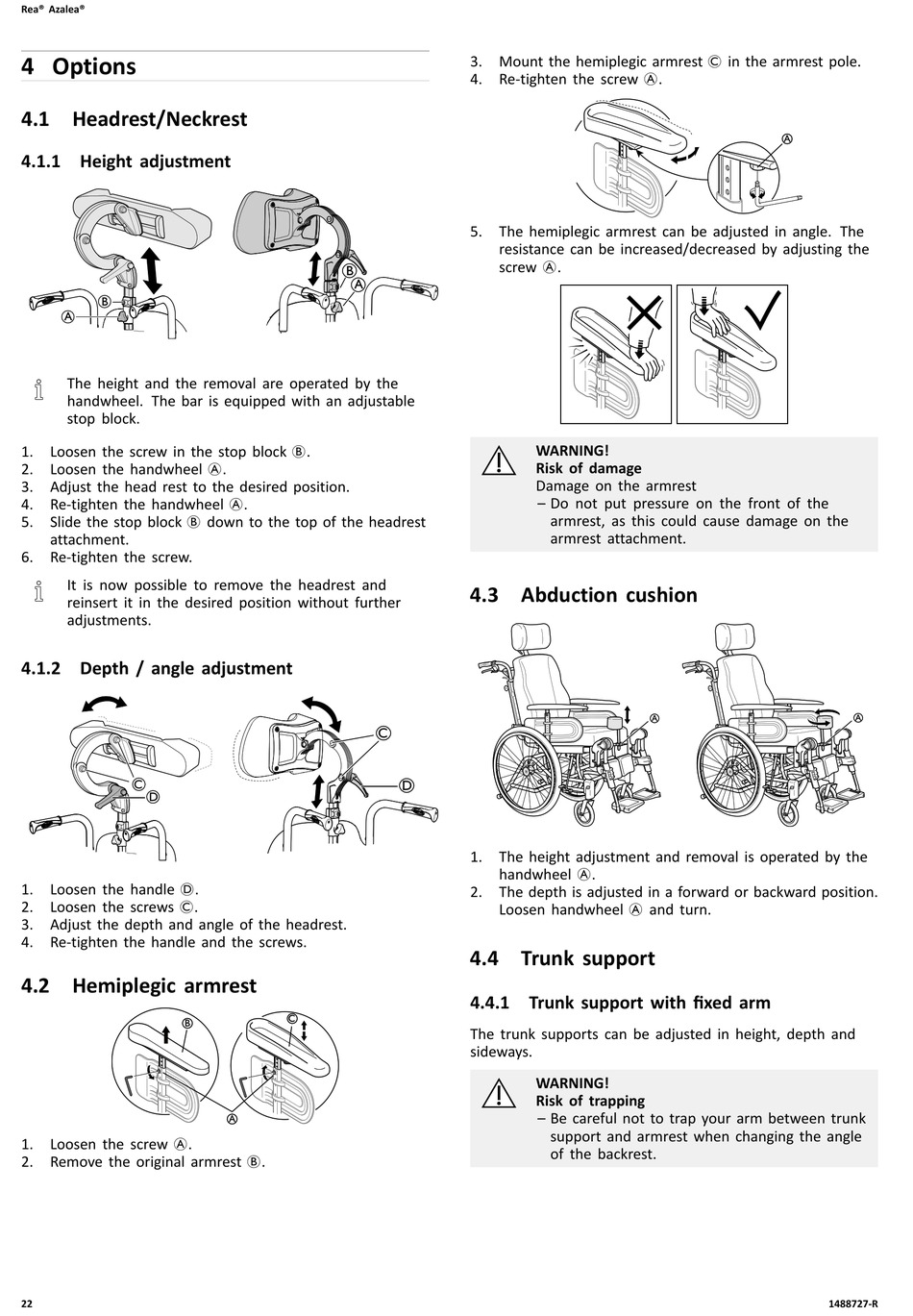

4 Options

4.1 Headrest/Neckrest

4.1.1 Height adjustment

B
A
The height and the removal are operated by the
handwheel. The bar is equipped with an adjustable
stop block.
1. Loosen the screw in the stop block B.
2. Loosen the handwheel A.
3. Adjust the head rest to the desired position.
4. Re-tighten the handwheel A.
5. Slide the stop block B down to the top of the headrest
attachment.
6. Re-tighten the screw.
It is now possible to remove the headrest and
reinsert it in the desired position without further
adjustments.

4.1.2 Depth / angle adjustment

1. Loosen the handle D.
2. Loosen the screws C.
3. Adjust the depth and angle of the headrest.
4. Re-tighten the handle and the screws.

4.2 Hemiplegic armrest

B
1. Loosen the screw A.
2. Remove the original armrest B.
22
B
A
C
A
3. Mount the hemiplegic armrest C in the armrest pole.
4. Re-tighten the screw A.
5. The hemiplegic armrest can be adjusted in angle. The
resistance can be increased/decreased by adjusting the
screw A.
WARNING!
Risk of damage
Damage on the armrest
– Do not put pressure on the front of the
armrest, as this could cause damage on the
armrest attachment.

4.3 Abduction cushion

1. The height adjustment and removal is operated by the
handwheel A.
2. The depth is adjusted in a forward or backward position.
Loosen handwheel A and turn.

4.4 Trunk support

4.4.1 Trunk support with fixed arm

The trunk supports can be adjusted in height, depth and
sideways.
WARNING!
Risk of trapping
– Be careful not to trap your arm between trunk
support and armrest when changing the angle
of the backrest.
A
A
A
