Rea® Azalea®
1. Remove the screws for the headrest attachment A and
discard them.
2. Position washers and harness as shown above.
3. Insert new screws C through the eyelets into the
attachment B.
4. Tighten the screws.
5. To mount the lower straps, loosen the armrest
attachments with the screws D under the seat.
6. Pull out the attachments approx. 5 cm.
The strap-mountings should be fastened from
the inside of the frame (see above).
7. Insert the screw D through the eyelet and into the hole
in the frame.
Tools: 5 mm Allen key
8. Secure with the washer and nut E.
9. Put the armrest attachment back in its original place.
34

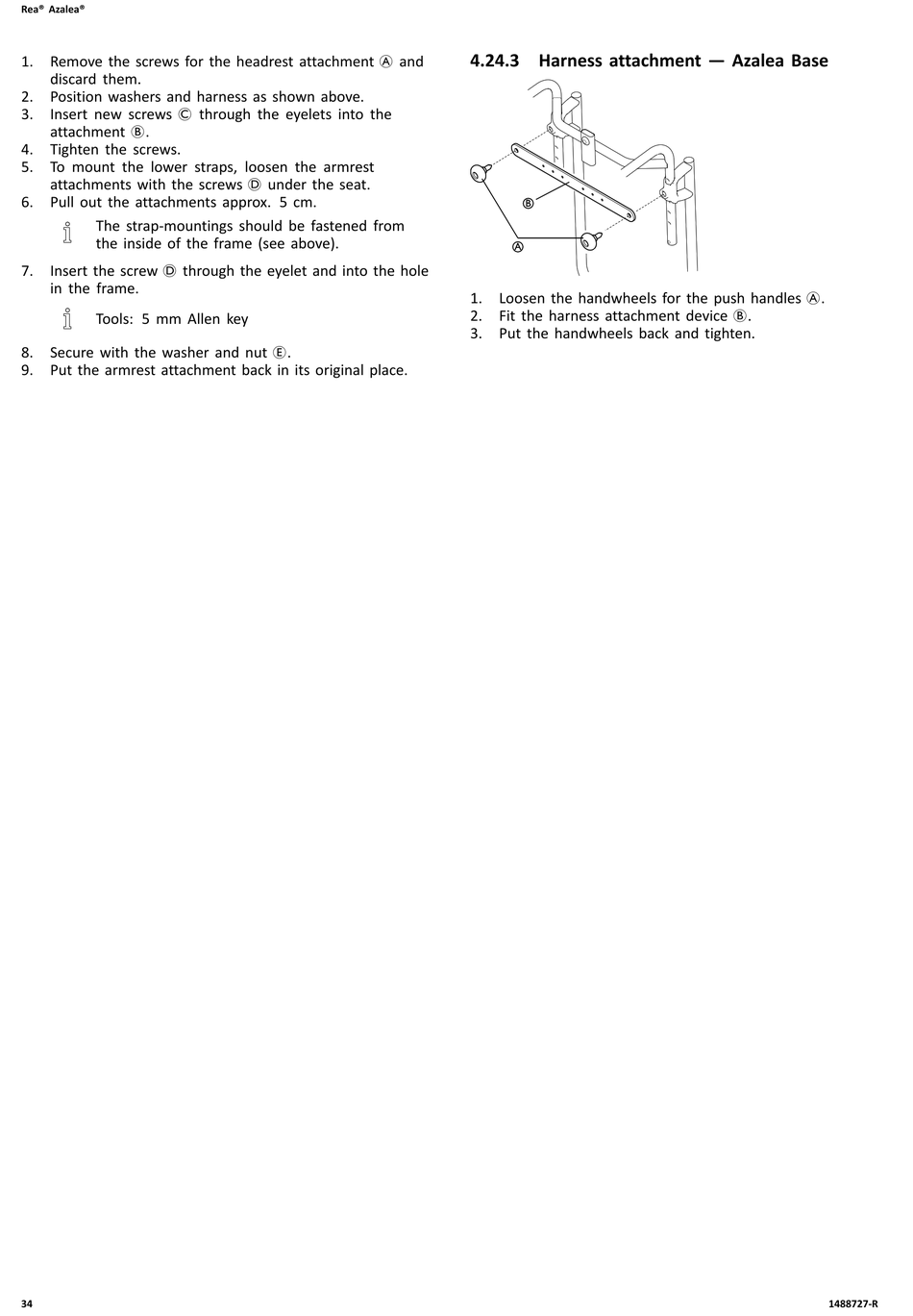

4.24.3 Harness attachment — Azalea Base
B
A
1. Loosen the handwheels for the push handles A.
2. Fit the harness attachment device B.
3. Put the handwheels back and tighten.
1488727-R
