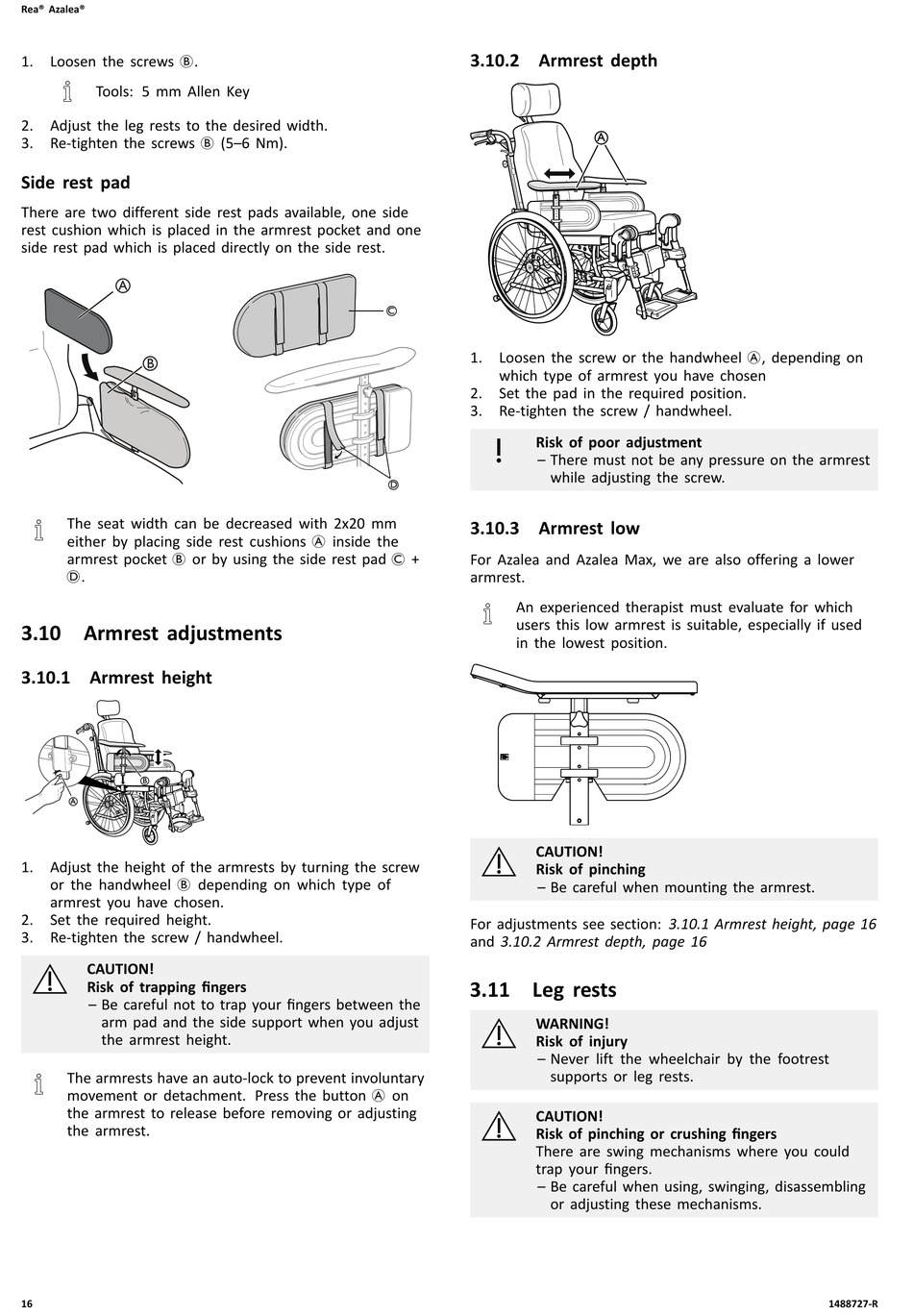

Rea® Azalea®
1. Loosen the screws B.
Tools: 5 mm Allen Key
2. Adjust the leg rests to the desired width.
3. Re-tighten the screws B (5–6 Nm).
Side rest pad
There are two different side rest pads available, one side
rest cushion which is placed in the armrest pocket and one
side rest pad which is placed directly on the side rest.
A
B
The seat width can be decreased with 2x20 mm
either by placing side rest cushions A inside the
armrest pocket B or by using the side rest pad C +
D.

3.10 Armrest adjustments

3.10.1 Armrest height

B
A
1. Adjust the height of the armrests by turning the screw
or the handwheel B depending on which type of
armrest you have chosen.
2. Set the required height.
3. Re-tighten the screw / handwheel.
CAUTION!
Risk of trapping fingers
– Be careful not to trap your fingers between the
arm pad and the side support when you adjust
the armrest height.
The armrests have an auto-lock to prevent involuntary
movement or detachment. Press the button A on
the armrest to release before removing or adjusting
the armrest.
16

3.10.2 Armrest depth

A
1. Loosen the screw or the handwheel A, depending on
which type of armrest you have chosen
2. Set the pad in the required position.
3. Re-tighten the screw / handwheel.
Risk of poor adjustment
– There must not be any pressure on the armrest
while adjusting the screw.

3.10.3 Armrest low

For Azalea and Azalea Max, we are also offering a lower
armrest.
An experienced therapist must evaluate for which
users this low armrest is suitable, especially if used
in the lowest position.
CAUTION!
Risk of pinching
– Be careful when mounting the armrest.
For adjustments see section: 3.10.1 Armrest height, page 16
and 3.10.2 Armrest depth, page 16

3.11 Leg rests

WARNING!
Risk of injury
– Never lift the wheelchair by the footrest
supports or leg rests.
CAUTION!
Risk of pinching or crushing fingers
There are swing mechanisms where you could
trap your fingers.
– Be careful when using, swinging, disassembling
or adjusting these mechanisms.
1488727-R
