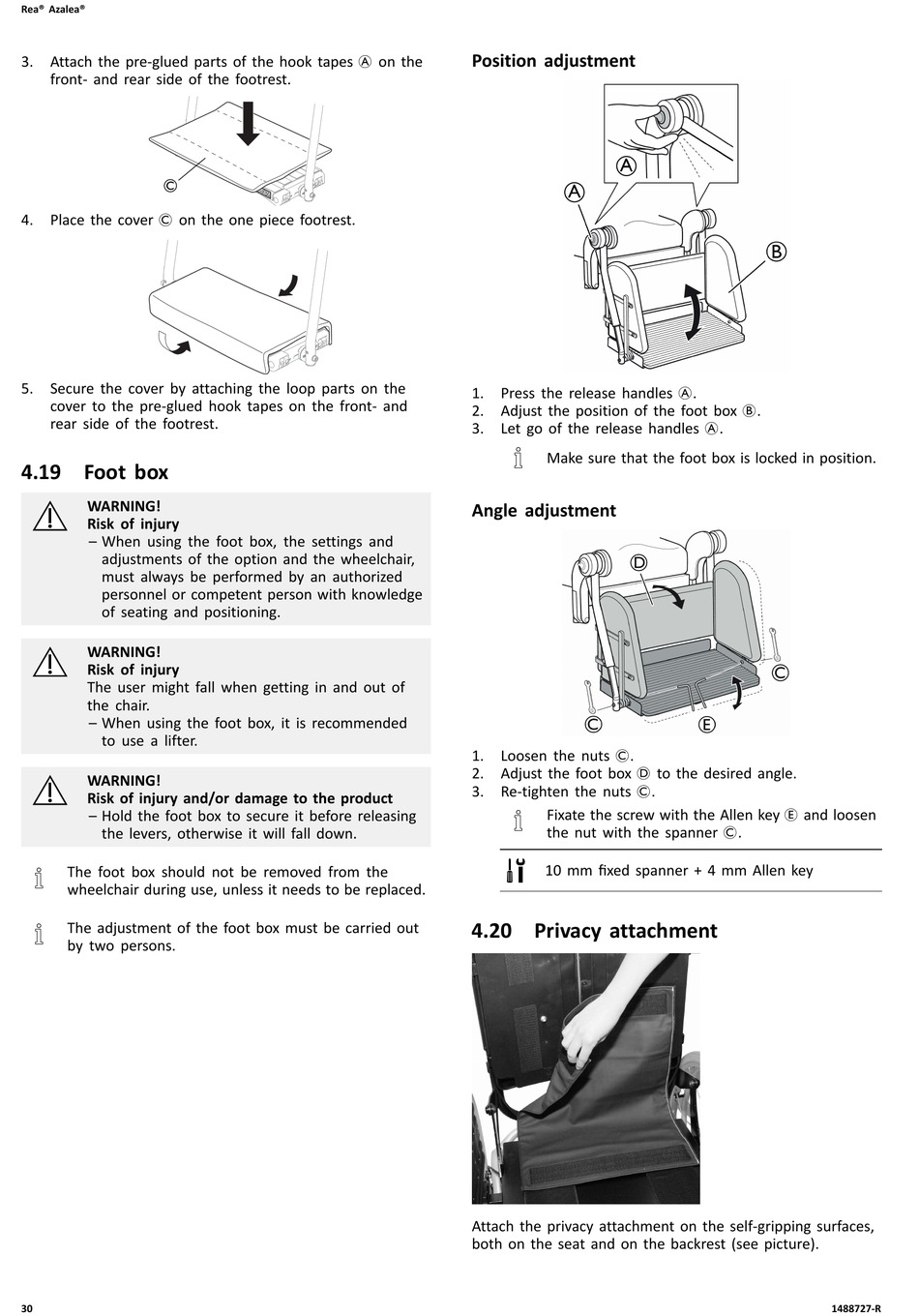

Rea® Azalea®
3. Attach the pre-glued parts of the hook tapes A on the
front- and rear side of the footrest.
4. Place the cover C on the one piece footrest.
5. Secure the cover by attaching the loop parts on the
cover to the pre-glued hook tapes on the front- and
rear side of the footrest.

4.19 Foot box

WARNING!
Risk of injury
– When using the foot box, the settings and
adjustments of the option and the wheelchair,
must always be performed by an authorized
personnel or competent person with knowledge
of seating and positioning.
WARNING!
Risk of injury
The user might fall when getting in and out of
the chair.
– When using the foot box, it is recommended
to use a lifter.
WARNING!
Risk of injury and/or damage to the product
– Hold the foot box to secure it before releasing
the levers, otherwise it will fall down.
The foot box should not be removed from the
wheelchair during use, unless it needs to be replaced.
The adjustment of the foot box must be carried out
by two persons.
30
Position adjustment
1. Press the release handles A.
2. Adjust the position of the foot box B.
3. Let go of the release handles A.
Make sure that the foot box is locked in position.
Angle adjustment
1. Loosen the nuts C.
2. Adjust the foot box D to the desired angle.
3. Re-tighten the nuts C.
Fixate the screw with the Allen key E and loosen
the nut with the spanner C.
10 mm fixed spanner + 4 mm Allen key

4.20 Privacy attachment

Attach the privacy attachment on the self-gripping surfaces,
both on the seat and on the backrest (see picture).
1488727-R
