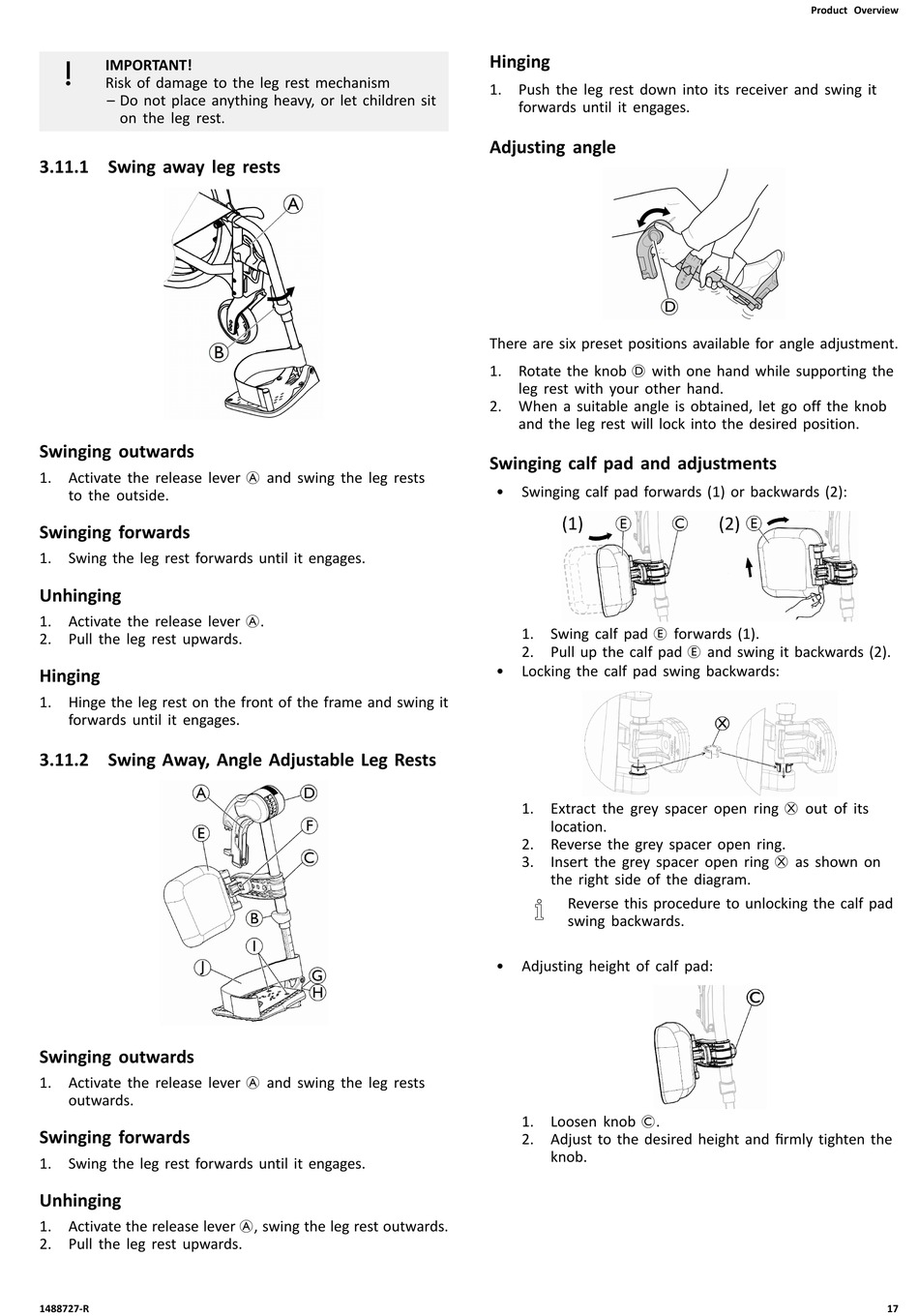

Swing Away Leg Rests; Swing Away, Angle Adjustable Leg Rests - Invacare rea Azalea Assist User Manual

IMPORTANT!
Risk of damage to the leg rest mechanism
– Do not place anything heavy, or let children sit
on the leg rest.

3.11.1 Swing away leg rests

Swinging outwards
1. Activate the release lever A and swing the leg rests
to the outside.
Swinging forwards
1. Swing the leg rest forwards until it engages.
Unhinging
1. Activate the release lever A.
2. Pull the leg rest upwards.
Hinging
1. Hinge the leg rest on the front of the frame and swing it
forwards until it engages.

3.11.2 Swing Away, Angle Adjustable Leg Rests

Swinging outwards
1. Activate the release lever A and swing the leg rests
outwards.
Swinging forwards
1. Swing the leg rest forwards until it engages.
Unhinging
1. Activate the release lever A, swing the leg rest outwards.
2. Pull the leg rest upwards.
1488727-R
Hinging
1. Push the leg rest down into its receiver and swing it
forwards until it engages.
Adjusting angle
There are six preset positions available for angle adjustment.
1. Rotate the knob D with one hand while supporting the
leg rest with your other hand.
2. When a suitable angle is obtained, let go off the knob
and the leg rest will lock into the desired position.
Swinging calf pad and adjustments
• Swinging calf pad forwards (1) or backwards (2):
1. Swing calf pad E forwards (1).
2. Pull up the calf pad E and swing it backwards (2).
• Locking the calf pad swing backwards:
1. Extract the grey spacer open ring X out of its
location.
2. Reverse the grey spacer open ring.
3. Insert the grey spacer open ring X as shown on
the right side of the diagram.
Reverse this procedure to unlocking the calf pad
swing backwards.
• Adjusting height of calf pad:
1. Loosen knob C.
2. Adjust to the desired height and firmly tighten the
knob.
