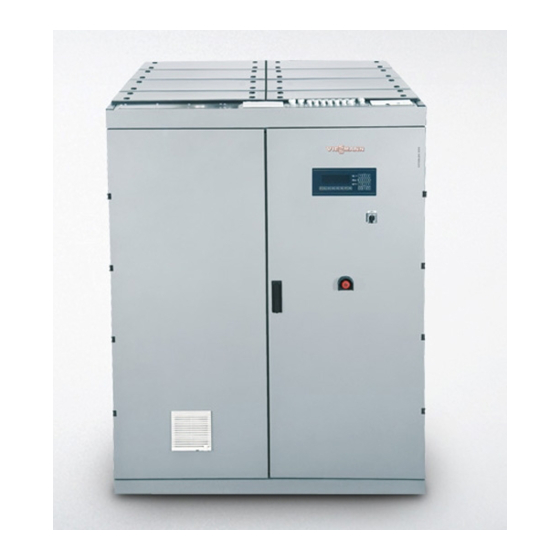

Block-type thermal power plant for biogas operation
Hide thumbs Also See for VITOBLOC 200:

Advertisement

Quick Links

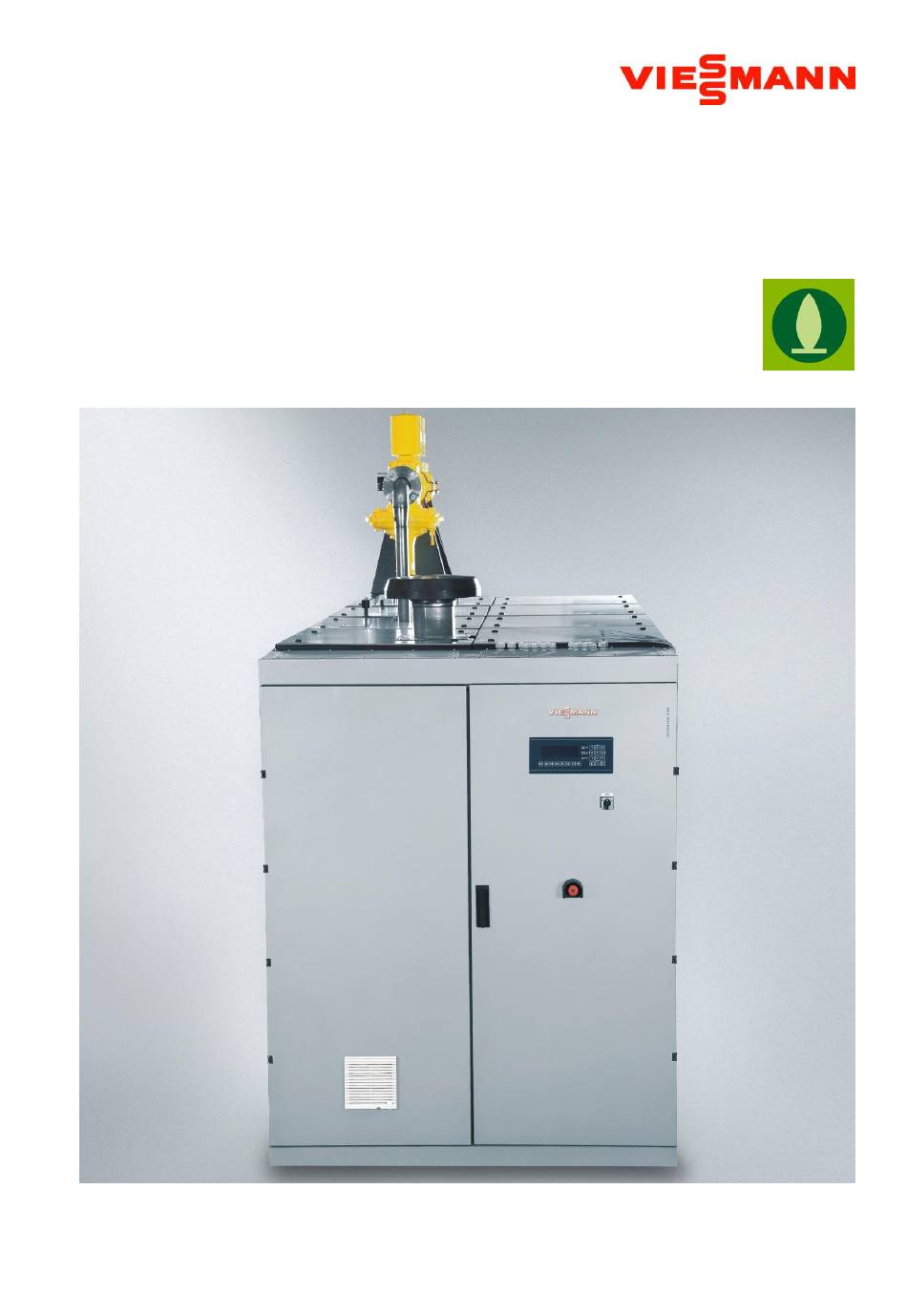

Assembly instructions
for the specialist
VITOBLOC 200
model BM-366/437
Part no. 7639780
Block-type thermal power plant for biogas operation
Please store this document in a safe place.
5780067 GB
10/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITOBLOC 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viessmann VITOBLOC 200

  • Page 1 Assembly instructions for the specialist VITOBLOC 200 model BM-366/437 Part no. 7639780 Block-type thermal power plant for biogas operation Please store this document in a safe place. 5780067 GB 10/2017...
  • Page 2 These documents and the original conformity declaration are stored on the premises of the manufacturer. NOTE The Vitobloc 200 cogeneration module is not suited to 60 Hz operation which means that it is in particular not available to the American and Canadian market.
  • Page 3: Table Of Contents

    Condensate drainage ....................25 4.10 Electrical connection ....................26 4.11 Installation of the noise cover (if part of the supply) ..........27 Notification of readiness for start-up ..........28 Declaration of conformity according to Machine Directive ..34 VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 4: Directives, Norms

    This is the reason why only instructed specialist personnel are allowed to operate and maintain the plant. Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 5 Opening of exhaust flanges Exhaust escape Exhaust lines Opening the measuring port Risk of poisoning Measuring port Touching unprotected exhaust pipes Risk of burning Touching unprotected measuring port Tab. 1 Block-type thermal power plant hazards VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 6: Remaining Hazards With The Use Of The Combined Heat And Power Plant

    Wear suitable protective clothing for work on the ignition system because a defective ignition cable can cause electric shock. This work must only be performed by specially trained technicians. Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 7: Important Provisions, Guidelines, Norms And Directives

    2014/30/EU (EMVG) EU electromagnetic compatibility directive Safety of machinery – Electrical equipment of machines DIN EN 60204-1 (VDE 0113-1) Part 1: General requirements Safety of machinery – Fundamental terminology, general design principles DIN EN ISO 12100 VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 8 VDI 3985 generating plants with internal combustion engines VDI 6025 Economic calculations for capital goods and plants Tab. 3 Important regulations, directives, norms and guidelines for the construction and operation of a Block-type thermal power plant Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 9: Specifications

    19.0 maximum acceptable operating pressure at high temperature maximum acceptable operating pressure at low temperature pressure loss at standard flowthrough in the HT module standard pressure loss at standard flowthrough in the NT module standard VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 10 Ambient temperature no higher than 35°C and its average value over a period of 24 hours no higher than 30°C Tab. 4 Operating parameters of the complete cogeneration module Vitobloc 200 BM-366/437 Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 11: Operating Parameters Of A Complete Cogeneration Module

    Exhaust connection (AGA) from cogeneration module, pipe connection DN 200 / PN10 Condensed water connection (KO), pipe connection Pipe ø 22 x 2.0 Heating water flow/return (HV/HR), pipe connection DN 80 / PN16 Gas connection (GAS), pipe connection DN 80 / PN16 VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 12 External control engineering makes the selection for stand-by operation after the customer’s load shedding. The selection can be made automatically inside of the module, but without monitoring load shedding. Tab. 5 Specifications of the complete cogeneration module Vitobloc 200 BM-366/437 Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 13: Dimensions, Weights And Finishes

    Extract outlet Flange 580 x 580 P20 The noise cover is available as an option for cogeneration modules Vitobloc 200 BM-366/437. For minimum 20 mbar gas flow pressure and 5 kW/nm³ calorific value, other values on request Tab. 6 Dimensions, weights, finishes and connections Fig.
  • Page 14: Transportation

    Block-type thermal power plant storage conditions The block-type thermal power plant should be transported and stored protected from moisture (max. rel. humidity: 70 %). Do not expose the cogeneration module to air with dust or halogens. Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 15: Cranage

    It is necessary to use a transport frame when transporting and putting into place a cogeneration module without a sound-absorbing hood (can be hired out against a deposit). VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 16: Setting Up

    2 x 1,400 mm long Switching 600 mm long cabinet 300 mm long side • blank required yellow: 1 x 1,500 mm long 380 mm long 280 mm long Fig. 5 Locating plan for sylomer strips Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 17: Removing The Transport Securing Devices

    1,500 mm from the basic frame if not transported vertically, which can endanger the 1,650 mm transport personnel. 4,650 mm Tab. 7 Minimum distances in the technical room VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 18: Installation

    All safety devices must comply with local requirements. All accident prevention rules shall be observed. 4.2 Scope of delivery Module Optional equipment as ordered Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 19: Requirements On The Technical Room

    We recommend, similar to the requirement of the old Heating Room Directive, installing a fire extinguisher of the appropriate size (at least 9 l) in the technical room. VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 20: Peripheral Connections Of The Cogeneration Module (Flowchart)

    = 20..50 mbar LZA- 44 (GAS) PZA+ PZA- Fig. 8 Monitoring devices of the Vitobloc 200 BM-366/437 version; (items 80 and 83 optional) Overall legend: Measuring points 1 cogeneration module (scope of delivery) 41 lambda regulating valve alternator-display monitoring 2 gas lane (scope of deliver, provided loose)
  • Page 21: Peripheral Ventilation And Exhaust

    Use a weather protection grill with sufficient size of openings to prevent flow noise due to restriction of section (noise protection). If special noise requirements apply, install a sound trap each in the fresh air and extract systems. VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 22: Heating Connection

    This includes: 2 flanged shutoff valves (each module) Dirt trap (each module, optional) Heating water hose Three-way mixing valve, complete with drive Controller with auxiliary power supply Fig. 11 Hydraulic connection plan Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 23: Gas Connection

    24 V direct voltage (battery supply). Also observe the requirements of DVGW Code of Practice G 260. ● Connect the Block-type thermal power plant to the available gas supply system by a branch line. VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 24: Exhaust Gas Connection

    Gully with water seal Fig. 12 Scheme showing the peripheral exhaust gas system of two cogeneration modules with condensed water drain pipe and drainage of safety valves (dimensions in mm) Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 25: Condensate Drainage

    CHP module (in the scope of delivery) ● Since the oil gas can condensate in the exhaust gas at low exhaust gas temperatures, the customer should provide an oil trap in the condensate discharge. VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 26: 4.10 Electrical Connection

    ● company. The electrical installation firm For guidelines concerning the dimensioning of doing the work is responsible for this. cables and fusing by buyer, cf. page 12 Tab. 5 "block-type thermal power plant Module Specifications“ Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 27: Installation Of The Noise Cover (If Part Of The Supply)

    Press on the sound-absorbing hood Turn the spanner another 90° while turning the spanner another 90° (the dot marks on the lock are now 180° (the dot marks on the lock are now to one another) opposite one another) VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 28: Notification Of Readiness For Start-Up

    (no earlier than 4 weeks after notice of readiness): ________________________________________ Other comments: We are aware that Viessmann Kraft-Wärme-Kopplung GmbH will not be liable for losses or deviations from design values that result from deviating operating conditions. We (the client) will bear all additional costs in full that result from commissioning having to be terminated on account of on-site defects, such as missing installations, connections, operating fluids and other installation work in the installation room.
  • Page 29 _________________ □ plastic (with STB) The type of waste gas plant: □ stainless steel The manufacturer of the waste gas plant: ________________________ Number of sound absorbers: ________________________ Confirmation of the installation specialist Page 3 VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 30 Type of gas supply: Natural gas / biomethane (LPG operation only permissible with module types □ Vitobloc 200 EM-6/15, EM-9/20 and EM-20/39 R2) LPG (propane) The gas supply to the Block-type thermal power plant is secure. □ The integration of the gas equipment complies with European norms and yes _________________ directives and with the planning and installation instructions.
  • Page 31 GPSG (Product Safety Act) Article 4(4)]: The exhaust gas system complies with DIN V 18160-1 / pressure class H1. (5,000 Pa gauge pressure / 0.006 l/s m² leak rate) Specialized stack construction firm: Date Stamp Signature VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 32 Name: _____________________________ Tel. No.: _____________________ Proposed system maintenance / HVAC firm: Name: _____________________________ Tel. No.: _____________________ Contact of the local power supply company: Name: _____________________________ Tel. No.: _____________________ Address of the local power supply company: _____________________________________________________________ Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 33  yes  no Customer's mains tie circuit breaker actuation  yes  no Mains tie circuit breaker actuation by module Mains tie circuit breaker actuation by Viessmann  yes  no process control system (MMM)  yes  no...
  • Page 34: Declaration Of Conformity According To Machine Directive

    Declaration of conformity according to Machine Directive 6 Declaration of conformity according to Machine Directive Assembly instructions VITOBLOC 200 BM-366/437...
  • Page 35 Notes VITOBLOC 200 BM-366/437 Assembly instructions...
  • Page 36 Viessmann Werke GmbH&Co KG D-35107 Allendorf phone: +49 6452 70-0 fax: +49 6452 70-2780 www.viessmann.de...
