Page 1

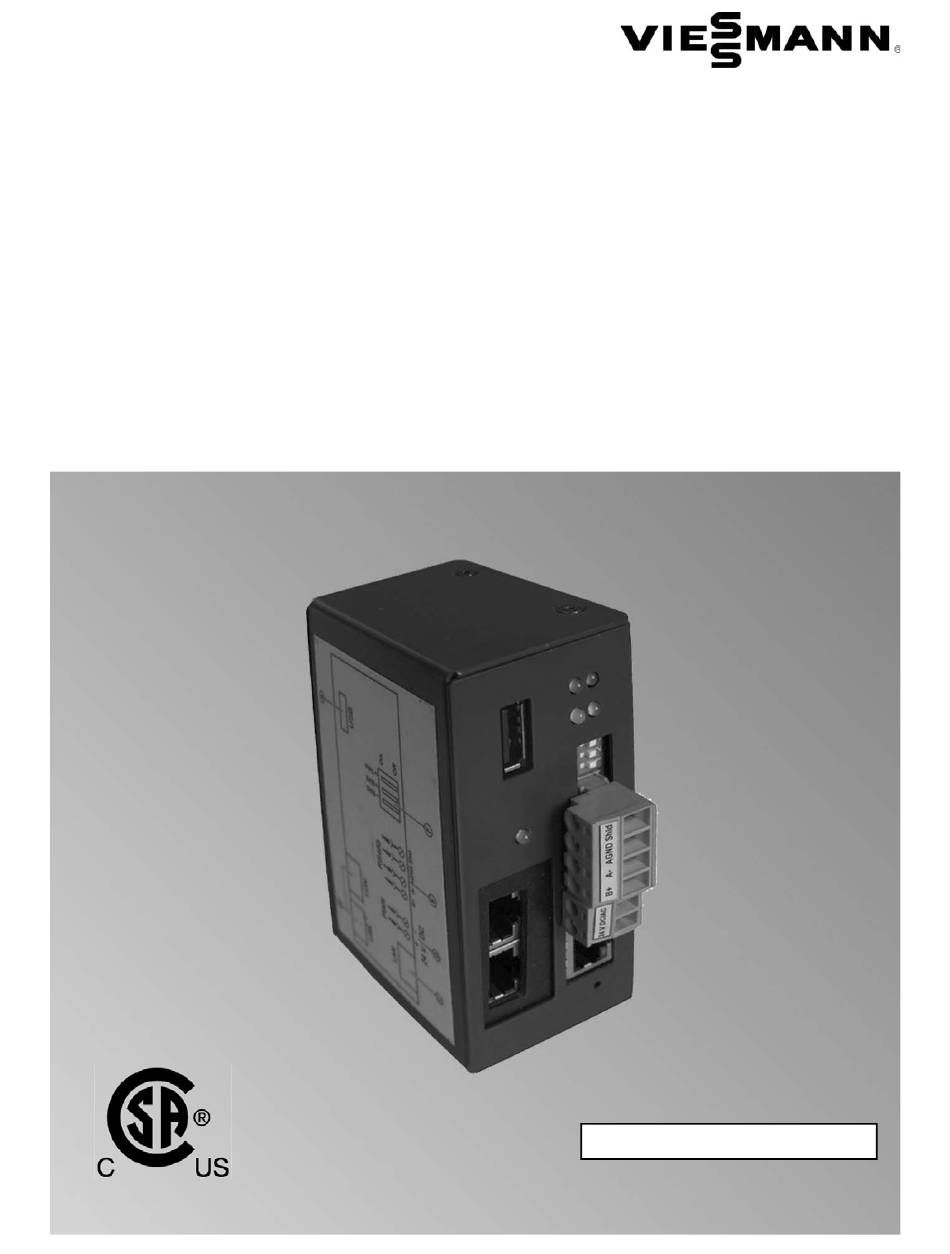

Communication with heating systems via BACnet or Modbus Vitogate 300 Product may not be exactly as shown IMPORTANT Read and save these instructions Certified as a component for future reference part for Viessmann boilers Please file in Service Binder 5672 437 - 05 08/2020...
Safety Vitogate 300 Installation and Service Safety, Installation and Warranty Requirements Safety, Installation and Warranty Requirements Please ensure that these instructions are read and understood before commencing installation. Failure to comply with the instructions listed below and details printed in this manual can cause product/property damage, severe personal injury, and/or loss of life.
Table of Contents Vitogate 300 Installation and Service Page Page Safety Safety, Installation and Warranty Requirements....2 Product documentation...........2 Licensed professional heating contractor....2 Advice to owner............2 Warranty...............2 General Information Important Regulatory and Installation Requirements..4 Approvals.............4 Codes..............4 Working on the equipment........4 Power supply............4 About these Installation Instructions......4...
Important Regulatory and Installation Requirements Approvals Please carefully read this manual prior to attempting Viessmann boilers, burners and controls are approved for installation. Any warranty is null and void if these sale in North America by CSA International. instructions are not followed.
H Relaying fault and error messages Legend A Power supply unit Vitogate 300, type BN/MB and its power supply unit are B Vitogate 300 suitable for mounting on a DIN rail (TS35 Top Hat Rail 35 mm x 15 mm or 35 mm x 7.5 mm).
Installation Vitogate 300 Installation and Service Wall Mounting (with enclosure) Legend A Module enclosure (complete with a Vitogate 300 and power supply unit) B Enclosure cover C Wall anchors (field supplied) D Mounting screws (field supplied)
A Vitogate 300 power supply unit which includes connection to the B Power supply 100 to 240V~, 45 to 65 Hz Vitogate 300 module and a standard 3 prong AC plug. C Mains isolator D Power supply unit E RS 485 connection:...
3. Mount the DIN rail A with the mounting hardware to the inside of the junction box as shown. 4. Mount the Vitogate 300 C to junction box side DIN rail A and mount the power supply unit B to the junction box main DIN rail D.
- terminal as shown. 2. Connect the other end of the 24VDC power supply cable (supplied), into the Vitogate 300, with the red or brown wire to the +24 terminal and the black or blue wire to the GND terminal as shown.
Vitogate 300 Installation and Service Vitogate and Power Supply Mounting Location for CA3/CA3B 1. Mount the Vitogate 300 B to junction box main DIN rail C and mount the power supply unit A to the junction box main DIN rail C.
- terminal as shown. 2. Connect the other end of the 24VDC power supply cable (supplied), into the Vitogate 300, with the red or brown wire to the +24 terminal and the black or blue wire to the GND terminal as shown.
B RS 485 connection: Interface for BACnet MS/TP or Flashes red Indication in the case of BUS Modbus RS 485 (this plug in the Vitogate 300 errors in the MS/TP network can be easily removed to aid with wiring connection).
Vitogate 300 Installation and Service Making the LON Connection Connections The Viessmann LON is designed for “Line” BUS topology All Viessmann appliances are connected with RJ45 with a terminal end resistor at both ends (accessories). connectors. The Viessmann LON always requires Further information can be found in the “Viessmann LON...
Commissioning Vitogate 300 Installation and Service Integrating the Vitotronic Control Unit into LON The LON communication module (accessory*) must be installed into the Vitotronic control unit. * Depending on the relevant control, this may be an additional accessory item. Note: The data transfer via LON can take several minute...
(standard setting), the DHCP server of the Vitogate 300 can be used to provide an IP address. Hold down the reset button on the Vitogate 300 for at least 5 sec, but no longer than 10 sec. The DHCP server has been enabled once the LED LON status flashes green/red alternately.
Parts Vitogate 300 Installation and Service Parts List Parts 0001 Replacement module 0002 LON connecting cable, 7m RJ45 0003 Power module, 120-240/24V 0005 Harness, power 24V 0006 Technical Literature Set Other Parts (not illustrated) 0100 Accessory pack, DIN rail and fasteners *1...
Specifications Vitogate 300 Installation and Service Vitogate 300, Type BN/MB Mains voltage 12 to 24V AC/DC Power consumption Max. 320 mA Rated output Max. 3.85 W Frequency range 47 to 63 Hz Permiss. ambient temperature - During operation 32 to 113°F (0 to 45°C) 32 to 113°F (0 to 45°C)
