NETGEAR MS108EUP User Manual

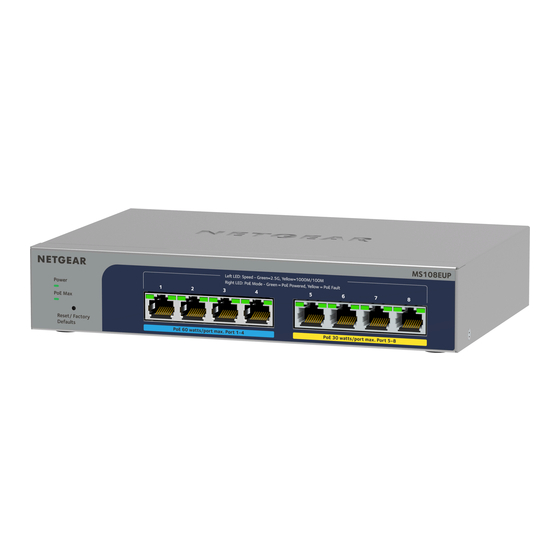

8-port ultra60 poe++ multi-gigabit (2.5g) ethernet plus switch
Hide thumbs Also See for MS108EUP:
Table of Contents

Advertisement

Quick Links

User Manual
8-port Ultra60 PoE++ Multi-Gigabit (2.5G)
Ethernet Plus Switch
Model MS108EUP
December 2021
202-12564-01
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134, USA

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR MS108EUP

Summary of Contents for NETGEAR MS108EUP

  • Page 1 User Manual 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Model MS108EUP NETGEAR, Inc. December 2021 350 E. Plumeria Drive 202-12564-01 San Jose, CA 95134, USA...
  • Page 2 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy-policy. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.

  • Page 3: Table Of Contents

    Discover the switch's IP address to access its device UI....15 Discover the IP address and access the switch......16 Use the NETGEAR Switch Discovery Tool to discover the switch's IP address and access the device UI......16 Assign a fixed IP address to the switch........17 Set a fixed IP address for the switch through a network connection..................18...
  • Page 4 Deactivate a port-based or 802.1Q VLAN mode and delete all VLANs....................54 Chapter 5 Manage the Switch in Your Network Manage NETGEAR Switch Discovery Protocol.......57 Set up link aggregation..............57 Make a link aggregation connection...........58 Set up a static link aggregation group........58 Set up a dynamic link aggregation group........59...
  • Page 5 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Chapter 6 Maintain and Monitor the Switch Update the firmware on the switch..........69 Manage the configuration file............70 Back up the switch configuration..........70 Restore the switch configuration..........71 Return the switch to its factory default settings......72 Use the RESET button to reset the switch........72 Use the device UI to reset the switch...........73 Control access to the device UI............73...
  • Page 6 Enable port mirroring..............106 View or clear the port statistics............106 Chapter 8 Factory Default Settings and Technical Specifications Factory default settings..............109 Technical specifications..............110 Model MS108EUP technical specifications......110 Appendix A Additional Switch Discovery and Access Information Access the switch from any computer...........112...

  • Page 7: Chapter 1 Hardware

    • Firmware updates with new features and bug fixes are made available from time to time at netgear.com/support/download/. You can manually check for, and download, new firmware. If the features or behavior of your product do not match what is...

  • Page 8: Related Documentation

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Related documentation Related documentation is available at netgear.com/support/download/: • Installation guide • Data sheet Switch package contents The package contains the switch, AC power adapter (power cable localized to the country of sale), wall-mount installation kit, rubber feet, and installation guide.
  • Page 9 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Table 1. LEDs on the front panel Description Power Solid green: The switch is powered on and operating normally. Off: Power is not supplied to the switch. PoE Max Off: Sufficient (more than 7W of) PoE power is available. (Status of switch's PoE Solid yellow: Less than 7W of PoE power is available.

  • Page 10: Switch Label

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Table 1. LEDs on the front panel (Continued) Description Solid green: 2.5 Gbps link on this port. Left port Blinking green: 2.5 Gbps activity on this port. Solid yellow: 1000 Mbps or 100 Mbps link on this port. Blinking yellow: 1000 Mbps or 100 Mbps activity on this port.

  • Page 11: Safety Instructions And Warnings

    Before connecting the product to outdoor cables or devices, see https://kb.netgear.com/000057103 for additional safety and warranty information. Failure to follow these guidelines can result in damage to your NETGEAR product, which might not be covered by NETGEAR’s warranty, to the extent permissible by applicable law.
  • Page 12 • Depending on your product, use only a supplied power adapter or approved power cable: If your product uses a power adapter: If you were not provided with a power adapter, contact your local NETGEAR reseller. The power adapter must be rated for the product and for the voltage and current marked on the product electrical ratings label.
  • Page 13 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch • To help prevent electric shock, plug the system and peripheral power cables into properly grounded power outlets. • If applicable to your product, the peripheral power cables are equipped with three-prong plugs to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from a cable.

  • Page 14: Chapter 2 Install And Access The Switch In Your Network

    Install and Access the Switch in Your Network This chapter describes how you can install the switch in your network, get an IP address for the switch, and use the IP address to access the switch's device UI so you can set up, manage, and monitor the switch.

  • Page 15: Set Up The Switch In Your Network And Power On The Switch

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Set up the switch in your network and power on the switch Figure 1. Example connections To set up the switch in your network and power on the switch: 1. Connect any port on the switch to a LAN port on a router that is connected to the Internet.

  • Page 16: Discover The Ip Address And Access The Switch

    IP address to access the device UI of the switch: • Use the NETGEAR Switch Discovery Tool to discover the switch's IP address and access the device UI on page 16. • Assign a fixed IP address to the switch on page 17.

  • Page 17: Assign A Fixed Ip Address To The Switch

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch If the NETGEAR Switch Discovery Tool icon is in the dock of your Mac or on the desktop of your Windows-based computer, click or double-click the icon to open the program. The initial page displays a menu and a button.

  • Page 18: Set A Fixed Ip Address For The Switch Through A Network Connection

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch printer or file server, configure port forwarding, or set up the switch so you can connect remotely from a mobile device. To change the IP address of the switch, use one of the following methods: •...

  • Page 19: Assign A Fixed Ip Address By Connecting Directly To The Switch Off-Network

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 7. Write down the complete fixed IP address. You can bookmark it later. 8. Click the APPLY button. Your settings are saved. Your switch web session is disconnected when you change the IP address. 9.
  • Page 20 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The button bar in the DHCP section displays green because the DHCP client of the switch is enabled. 7. Click the button in the DHCP section. The button bar displays gray, indicating that the DHCP client of the switch is disabled, and the IP address fields become editable.

  • Page 21: Change The Language Of The Device Ui

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Change the language of the device UI By default, the Language option of the device UI is set to Auto so that the switch can automatically detect the language. However, you can select a specific language to display in the UI.

  • Page 22: Register The Switch

    Registering the switch allows you to receive email alerts and streamlines the technical support process. You can log in to your NETGEAR account at my.netgear.com to register your switch, or you can also register the switch through the device UI, in which case the switch must be connected to the Internet.

  • Page 23: Chapter 3 Optimize The Switch Performance

    Optimize the Switch Performance This chapter describes how you can optimize the performance of the switch and contains the following sections: • Set the quality of service mode and port rate limits • Manage individual port settings...

  • Page 24: Set The Quality Of Service Mode And Port Rate Limits

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Set the quality of service mode and port rate limits You can manually set the Quality of Service (QoS) modes to manage traffic: • Port-based QoS mode: Lets you set the priority (low, normal, medium, high, or critical) for individual port numbers and lets you set rate limits for incoming and outgoing traffic for individual ports.

  • Page 25: Use 802.1P/Dscp Quality Of Service

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch A login window opens. 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4.

  • Page 26: Manage Broadcast Filtering And Set Port Storm Control Rate Limits

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch To use 802.1P/DSCP QoS mode and set the rate limits for ports: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable. 2.

  • Page 27: Manage Individual Port Settings

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch To manage broadcast filtering and set the storm control rate limits for ports: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable. 2.

  • Page 28: Manage Flow Control For A Port

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch set the rate limit on a port too low, you might, for example, see degraded video stream quality, sluggish response times during online activity, and other problems. You also can set port rate limits (the same feature) as part of the QoS configuration on the switch (see Use port-based quality of service and set port priorities on page 24).

  • Page 29: Change The Speed For A Port Or Disable A Port

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch You can enable or disable flow control for an individual port. By default, flow control is disabled for all ports. To manage flow control for a port: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable.

  • Page 30: Add Or Change The Name Label For A Port

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. The PORT STATUS pane displays on the right or the bottom of the HOME page, depending on the size of your browser window.
  • Page 31 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The PORT STATUS pane displays on the right or the bottom of the HOME page, depending on the size of your browser window. A port that is in use shows as CONNECTED. A port that is not in use shows as AVAILABLE.

  • Page 32: Chapter 4 Use Vlans For Traffic Segmentation

    Use VLANS for Traffic Segmentation This chapter describes how you can use VLANs to segment traffic on the switchj, and contains these sections: • VLAN overview • Activate the Basic Port-Based VLAN mode and assign VLANs • Manage advanced port-based VLANs •...

  • Page 33: Vlan Overview

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch VLAN overview Virtual LANs (VLANs) consist of networked devices that are grouped logically into separate networks. You can group ports on a switch to create a virtual network consisting of the devices connected to the ports. You can group ports in VLANs using either port-based or 802.1Q criteria: •...

  • Page 34: Activate The Basic Port-Based Vlan Mode And Assign Vlans

    VLANs, assign a different VLAN to a port, manage port PVIDs, and manage a voice VLAN. The following table provides an overview of VLAN features that are supported on the switch. Table 2. Supported VLAN modes for the MS108EUP VLAN Feature Basic Advanced...

  • Page 35: Manage Advanced Port-Based Vlans

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. From the menu at the top of the page, select SWITCHING. The Quality of Service (QOS) page displays.

  • Page 36: Create An Advanced Port-Based Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch When you activate the Advanced Port-Based VLAN mode, VLAN 1 is added to the switch and all ports are made members of VLAN 1. This is the default VLAN in the Advanced Port-Based VLAN mode.

  • Page 37: Change An Advanced Port-Based Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. From the menu at the top of the page, select SWITCHING. The QOS page displays.
  • Page 38 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch To change an advanced port-based VLAN: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable. 2.

  • Page 39: Delete An Advanced Port-Based Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Delete an advanced port-based VLAN You can delete an advanced port-based VLAN that you no longer need. You cannot delete the default VLAN. Note: If you deactivate the basic or advanced port-based VLAN mode, all port-based VLANs are deleted.

  • Page 40: Activate The Basic 802.1Q Vlan Mode

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch For more information about basic 802.1Q VLANs, see the following sections: • Activate the Basic 802.1Q VLAN mode • Create a basic 802.1Q VLAN and assign ports as members • Assign the port mode in a basic 802.1Q VLAN configuration •...

  • Page 41: Create A Basic 802.1Q Vlan And Assign Ports As Members

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 8. If you already determined which ports must function in trunk mode, for those ports, select Trunk (uplink) from the Mode menu. 9. Click the SAVE button. Your settings are saved. Create a basic 802.1Q VLAN and assign ports as members A basic 802.1Q VLAN configuration lets you create VLANs and assign ports on the switch to a VLAN.

  • Page 42: Assign The Port Mode In A Basic 802.1Q Vlan Configuration

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch e. Click the APPLY button. Your settings are saved. The new VLAN shows in the 802.1Q-BASED VLAN CONFIGURATIONS (BASIC MODE) pane. f. Click the Port Configuration tab. The 802.1Q PORT CONFIGURATIONS pane displays g.
  • Page 43 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch mode for a port that is connected to an end device such as a gaming device, media device, or computer. When a port that functions in access mode receives data that is untagged, the data is delivered normally. When a port that functions in access mode receives data that is tagged for a VLAN other than the one the port belongs to, the data is discarded.

  • Page 44: Change A Basic 802.1Q Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Change a basic 802.1Q VLAN You can change an existing basic 802.1Q VLAN. To change a basic 802.1Q VLAN: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable.

  • Page 45: Delete A Basic 802.1Q Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Your settings are saved. Delete a basic 802.1Q VLAN You can delete a basic 802.1Q VLAN that you no longer need. You cannot delete the default VLAN. Note: If you deactivate the Basic 802.1Q VLAN mode, all 802.1Q VLANs are deleted. To delete a basic 802.1Q VLAN: 1.

  • Page 46: Activate The Advanced 802.1Q Vlan Mode

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch assign a different VLAN to a port, manage port PVIDs, and manage a voice VLAN, including the OUI table. For more information about advanced 802.1Q VLANs, see the following sections: • Activate the advanced 802.1Q VLAN mode •...

  • Page 47: Create An Advanced 802.1Q Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 6. In the Advanced 802.1Q VLAN section, click the ACTIVATE MODE button. A pop-up window opens, informing you that the current VLAN settings will be lost. 7. Click the CONTINUE button. Your settings are saved and the pop-up window closes. By default, VLAN 1 is added and all ports are made untagged members of VLAN 1.

  • Page 48: Change An Advanced 802.1Q Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. From the menu at the top of the page, select SWITCHING. The QOS page displays.
  • Page 49 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch To change an advanced 802.1Q VLAN: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable. 2.

  • Page 50: Specify A Port Pvid For An Advanced 802.1Q Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Specify a port PVID for an advanced 802.1Q VLAN A default port VLAN ID (PVID) is a VLAN ID tag that the switch assigns to incoming data packets that are not already addressed (tagged) for a particular VLAN. For example, if you connect a computer to port 6 of the switch and you want it to be a part of VLAN 2, add port 6 as a member of VLAN 2 and set the PVID of port 6 to 2.

  • Page 51: Set An Existing Advanced 802.1Q Vlan As The Voice Vlan And Adjust The Cos Value

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Your settings are saved. The Port and VLAN IDs pane displays again. The VLAN ID that is assigned as the PVID displays with an asterisk (*) next to the port. 10. Click the BACK button. The Advanced 802.1Q VLAN pane displays.

  • Page 52: Change The Oui Table For The Voice Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 6. In the table in the right pane, click the VLAN that you want to make the voice VLAN. You can click anywhere in the row to select the VLAN. 7. Click the EDIT button. 8.

  • Page 53: Delete An Advanced 802.1Q Vlan

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 4. From the menu at the top of the page, select SWITCHING. The QOS page displays. 5. From the menu on the left, select VLAN. The VLAN page displays. 6. In the table in the right pane, click Advanced 802.1Q VLAN. 7.

  • Page 54: Deactivate A Port-Based Or 802.1Q Vlan Mode And Delete All Vlans

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Note: If you deactivate the Advanced 802.1Q VLAN mode, all 802.1Q VLANs are deleted. To delete an advanced 802.1Q VLAN: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable.
  • Page 55 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. From the menu at the top of the page, select SWITCHING. The QOS page displays.

  • Page 56: Chapter 5 Manage The Switch In Your Network

    Manage the Switch in Your Network This chapter describes how you can manage the switch in your network. The chapter contains the following sections: • Manage NETGEAR Switch Discovery Protocol • Set up link aggregation • Manage multicast • Change the IP address of the switch...

  • Page 57: Manage Netgear Switch Discovery Protocol

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Manage NETGEAR Switch Discovery Protocol A NETGEAR device or application that supports NETGEAR Switch Discovery Protocol (NSDP) can discover the switch in the network so that you can find the switch IP address and log in to the device UI of the switch.

  • Page 58: Make A Link Aggregation Connection

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Make a link aggregation connection Before you make a physical link aggregation connection to another network device (usually a router or another switch) that also supports link aggregation, you must first set up a LAG on the switch. If you do not, the LAG cannot take effect. Whether a LAG on the switch functions to support increased bandwidth or fault tolerance depends on the LAG configuration on the other network device.

  • Page 59: Set Up A Dynamic Link Aggregation Group

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. From the menu at the top of the page, select SWITCHING. The QOS page displays.
  • Page 60 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch • Select the ports on the switch that will participate in the LAG, as described in this task. • Enable the LAG on the switch and on the connected network device. To set up a dynamic LAG on the switch: 1.

  • Page 61: Enable A Link Aggregation Group

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Enable a link aggregation group After you set up a link aggregation group (see Set up a dynamic link aggregation group on page 59) and make a physical link aggregation connection (see Make a link aggregation connection on page 58), you can enable the link aggregation group.

  • Page 62: Manage Multicast

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Manage multicast Multicast IP traffic is traffic that is destined to a host group. Host groups are identified by Class D IP addresses, which range from 224.0.0.0 to 239.255.255.255. Internet Group Management Protocol (IGMP) snooping allows the switch to forward multicast traffic intelligently.

  • Page 63: Enable A Vlan For Igmp Snooping

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Enable a VLAN for IGMP snooping You can enable IGMP for a VLAN only if you enabled a port-based VLAN mode or an 802.1Q VLAN mode (see Use VLANS for Traffic Segmentation on page 32. To enable IGMP snooping for a VLAN: 1.

  • Page 64: Manage Igmpv3 Ip Header Validation

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. From the menu at the top of the page, select SWITCHING. The QOS (Quality of Service) page displays.

  • Page 65: Set Up A Static Router Port For Igmp Snooping

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 5. From the menu on the left, select MULTICAST. The MULTICAST page displays. 6. Enable or disable IGMPv3 IP header validation by clicking the button in the Validate IGMPv3 IP Header section. When IGMPv3 IP header validation is enabled, the button bar displays green.

  • Page 66: Change The Ip Address Of The Switch

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Your settings are saved. Change the IP address of the switch By default, the switch receives an IP address from a DHCP server (or a router that functions as a DHCP server) in your network. To disable the DHCP client of the switch and change the IP address of the switch to a fixed IP address: 1.

  • Page 67: Reenable The Dhcp Client Of The Switch

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Reenable the DHCP client of the switch If you disabled the DHCP client of the switch and set the switch to a fixed (static) IP address, you can reverse the situation. To reenable the DHCP client on the switch: 1.

  • Page 68: Chapter 6 Maintain And Monitor The Switch

    Maintain and Monitor the Switch This chapter describes how you can maintain and monitor the switch, and contains these sections: • Update the firmware on the switch • Manage the configuration file • Return the switch to its factory default settings •...

  • Page 69: Update The Firmware On The Switch

    The FIRMWARE page displays. The page also shows the UPDATE FIRMWARE section. The FIRMWARE VERSION displays the current firmware version of the switch. 6. To check if new firmware is available, click the netgear.com link in the FIRMWARE section. A NETGEAR web page opens.

  • Page 70: Manage The Configuration File

    The BACKUP FULL CONFIGURATIONS page displays. 6. Click the BACKUP button. 7. Follow the directions in your browser to save the file. The default name of the backup file is based on the switch model, for example: MS108EUP.cfg. Maintain and Monitor the Switch User Manual...

  • Page 71: Restore The Switch Configuration

    5. Click the purple file icon, navigate to the saved configuration file, and select it. The name of the saved configuration file is based on the switch model, for example: MS108EUP.cfg. The RESTORE button is now the APPLY CONFIGURATION button.

  • Page 72: Return The Switch To Its Factory Default Settings

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Return the switch to its factory default settings You can reset the switch to return it to factory default settings, using either the RESET button on the front of the switch, or the reset function in the device UI. If you have lost the password and cannot access the switch, you must use the RESET button.

  • Page 73: Use The Device Ui To Reset The Switch

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Use the device UI to reset the switch CAUTION: This process erases all settings that you configured on the switch. To reset the switch to factory default settings using the device UI: 1.

  • Page 74: Http And Https Management Access

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch A login window opens. 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4.

  • Page 75: Configure Http Access Settings

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch For each option, you can set the maximum time that a management login session can remain idle before it times out, and set the maximum number of concurrent management sessions. Configure HTTP access settings You can choose to enable or disable web access to the switch's device UI through HTTP, set the session timeout, and maximum number of HTTP sessions.

  • Page 76: Browser Security Message With Https Access

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Browser security message with HTTPS access After you enable HTTPS access and you attempt to access the device UI, your browser might display a security message that your connection is not private or not secure, or that a problem with the security certificate occurred.
  • Page 77 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch remote access, set the session timeout, and maximum number of HTTPS sessions. HTTPS is disabled by default. Note: Secure HTTP (HTTPS) enables the transmission of HTTP over an encrypted Secure Sockets Layer (SSL) or Transport Layer Security (TLS) connection. When you manage the switch over the device UI, HTTPS can help ensure that communication between the management system and the switch is protected from eavesdroppers and man-in-the-middle attacks.

  • Page 78: Manage Certificates For Https Access

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Manage certificates for HTTPS access You can manage certificates for HTTPS access. After you generate and install a valid certificate, browser security messages no longer display. Note: HTTPS must be disabled before you can generate a certificate. For more information, see Configure HTTPS access settings on page 76.

  • Page 79: Delete Certificates For Https Access

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch switch. Before you transfer a file from a TFTP server to the switch, the following conditions must be met: • The file that you transfer from a TFTP server is on the server in the appropriate directory.

  • Page 80: Change Or Lift Access Restrictions To The Switch

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch To delete an SSL certificate: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable. 2.

  • Page 81: Manage The Dos Prevention Mode

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 5. From the menu on the left, select ACCESS CONTROL. The ACCESS CONTROL page displays. 6. Click the IP address that you want to remove. The DELETE button displays. 7. Click the DELETE button. The IP address is removed from the list, and access to the switch's device UI from the IP address is blocked.

  • Page 82: Manage The Power Saving Mode

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Manage the power saving mode The power saving mode enables the IEEE 802.3az Energy Efficient Ethernet (EEE) function, cable length power saving, and link-up and link-down power saving: • IEEE 802.3az: Combines the Energy Efficient Ethernet (EEE) 802.3 MAC sublayer with the 100BASE-TX, 1000BASE-T, and 10GBASE-T physical layers to support operation in Low Power Idle (LPI) mode.

  • Page 83: Control The Port Leds

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Control the port LEDs You can turn the port LEDs on the switch on and off by using the device UI. By default, a port LED lights when you connect a powered-on device to the port. When the switch functions with its LEDs off, we refer to it as Stealth Mode.

  • Page 84: View System Information

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. In the SYSTEM INFO menu Switch Name field, enter a new name for the switch. 5.

  • Page 85: Configure The System Time Manually

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Configure the system time manually To set the system time manually: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable. 2.
  • Page 86 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch A login window opens. 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4.

  • Page 87: Configure An Sntp Server

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 10. In the Unicast Poll Timeout field, specify the number of seconds to wait for an SNTP response to a unicast poll request. The allowed range is 1 to 30. The default value is 5. 11.

  • Page 88: Enable System Time To Synchronize With An Sntp Server

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 8. In the Address field, enter the address in the format compatible with Server Type. 9. In the Port field, enter the number of the port to use for UDP transmissions: 123, or 1025 to 36465.

  • Page 89: Configure Daylight Saving Time

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 7. Click the APPLY button. Your settings are saved. The current system date and time display next to the menu icon. Configure daylight saving time To set the system time manually: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable.

  • Page 90: View Daylight Saving Time Status

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Fields display the start and end days and offset times for your zone. d. Recurring USA: Set the time zone to your US location. Fields display the start and end days and offset times for your zone. e.

  • Page 91: View Switch Connections

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The following fields display: • Daylight Saving (DST): Displays the type of daylight setting enabled. • Begins At: Displays the scheduled settings for the start of the daylight savings period. • Ends At: Displays the scheduled settings for the end of the daylight savings period.

  • Page 92: Power Over Ethernet

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. The PORT STATUS pane displays on the right or the bottom of the HOME page, depending on the size of your browser window.

  • Page 93: Poe++ And Poe+ Overview

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch PoE++ and PoE+ overview Model MS108EUP provides up to 60W PoE++ (IEEE 802.3bt) to each PoE++ port (1–4), and up to 30W PoE+ (IEEE 802.3at) to each PoE+ port (5–8). The maximum PoE power budget across all active PoE++ and PoE+ ports is 230W.

  • Page 94: Manage Uninterrupted Poe

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 3. Enter the device management password. The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. Select POE > PD HEALTH MONITORING. The PD Health Monitoring page displays.

  • Page 95: Power Cycle The Poe Ports

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch firmware update. By default, the uninterrupted PoE feature is disabled, so that the switch stops providing PoE power while it is rebooting. Even with the feature enabled, the switch temporarily stops providing PoE in the following situations: •...

  • Page 96: Manage An Individual Poe Port

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 4. Select POE. The Power over Ethernet (PoE) page displays. 5. In the Power Cycle Ports section, click the port number icon for every port that you want to reset. When a port is selected, the port number icon displays solid purple. 6.
  • Page 97 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 7. Choose any of the following options to manage the PoE settings on the port: a. Port Power. • Enable: The port's ability to deliver PoE power is enabled. This is the default setting.

  • Page 98: Display Poe Port Status

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch e. Power Limit Type. Class: The power limit automatically adjusts based on the class of PD. f. Detection Type. • Legacy: The port performs legacy detection. • IEEE802: The port performs a 4-point resistive detection. This is the default setting.

  • Page 99: Configure A Poe Schedule

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch • Temperature: The temperature in degrees Celcius. • Fault Status: The error description when the PoE port is in a fault state: No Error: The port is not in any error state and can provide power. MPS Absent: The port detected the absence of the main power supply, preventing the port from providing power.

  • Page 100: Edit Or Disable A Poe Schedule

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch The password is the one that you specified the first time that you logged in. The password is case-sensitive. The HOME page displays. 4. Select POE > POE SCHEDULE. The POE SCHEDULE page displays. 5.
  • Page 101 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch 6. To change which PoE ports are scheduled, click one or more ports. When a port is selected, the port button displays solid purple. 7. To change the start date, click the Start Date field and select the date from the pop-up menu.

  • Page 102: Chapter 7 Diagnostics And Troubleshooting

    Diagnostics and Troubleshooting This chapter covers the following topics: • Test cable connections • Resolve a subnet conflict to access the switch • PoE troubleshooting suggestions • Enable or disable loop prevention • Enable port mirroring • View or clear the port statistics...

  • Page 103: Test Cable Connections

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Test cable connections You can use the cable diagnostic feature to easily find out the health status of network cables. If any problems exist, this feature helps quickly locate the point where the cabling fails, allowing connectivity issues to be fixed much faster, potentially saving technicians hours of troubleshooting.

  • Page 104: Poe Troubleshooting Suggestions

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch be different from the subnet used in your network. You might see the following message if you try to access the switch: The switch and manager IP address are not in the same subnet. To resolve this subnet conflict: 1.

  • Page 105: Enable Or Disable Loop Prevention

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Table 4. PoE fault conditions and possible solutions PoE Fault Condition Possible Solution A PoE-related short circuit occurred on the port. The problem is most likely with the attached PD. Check the condition The PoE power demand of the PD exceeded the maximum level that the of the PD or restart the PD by switch permits.

  • Page 106: Enable Port Mirroring

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Enable port mirroring Port mirroring lets you mirror the incoming (ingress) and outgoing (egress) traffic of one or more ports (the source ports) to a single predefined destination port. Port mirroring is off by default. To turn on port mirroring: 1.
  • Page 107 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch To view or clear the port statistics: 1. Open a web browser from a computer that is connected to the same network as the switch, or connected directly to the switch through an Ethernet cable. 2.

  • Page 108: Chapter 8 Factory Default Settings And Technical Specifications

    Factory Default Settings and Technical Specifications This appendix contains the following sections: • Factory default settings • Technical specifications...

  • Page 109: Factory Default Settings

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Factory default settings You can return the switch to its factory settings. For more information, see Return the switch to its factory default settings on page 72. The switch resets and returns to the factory settings shown in the following table. Table 5.

  • Page 110: Technical Specifications

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Technical specifications This section describes the technical specifications for the switch model. Model MS108EUP technical specifications The following table shows the technical specifications for model MS108EUP. Table 6. Model MS108EUP technical specifications Feature Description Network interface Ethernet RJ-45 copper ports (100M/1G/2.5G)

  • Page 111: Appendix A Additional Switch Discovery And Access Information

    Additional Switch Discovery and Access Information This appendix provides additional information about how you can discover and access the switch in your network. The appendix contains the following section: • Access the switch from any computer...

  • Page 112: Access The Switch From Any Computer

    8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Access the switch from any computer This procedure requires you to use an IP scanner application. Such applications are available on the Internet, and some of them are free of charge. To discover the switch IP address and access the switch from a computer: 1.

Table of Contents
