Installation Guide

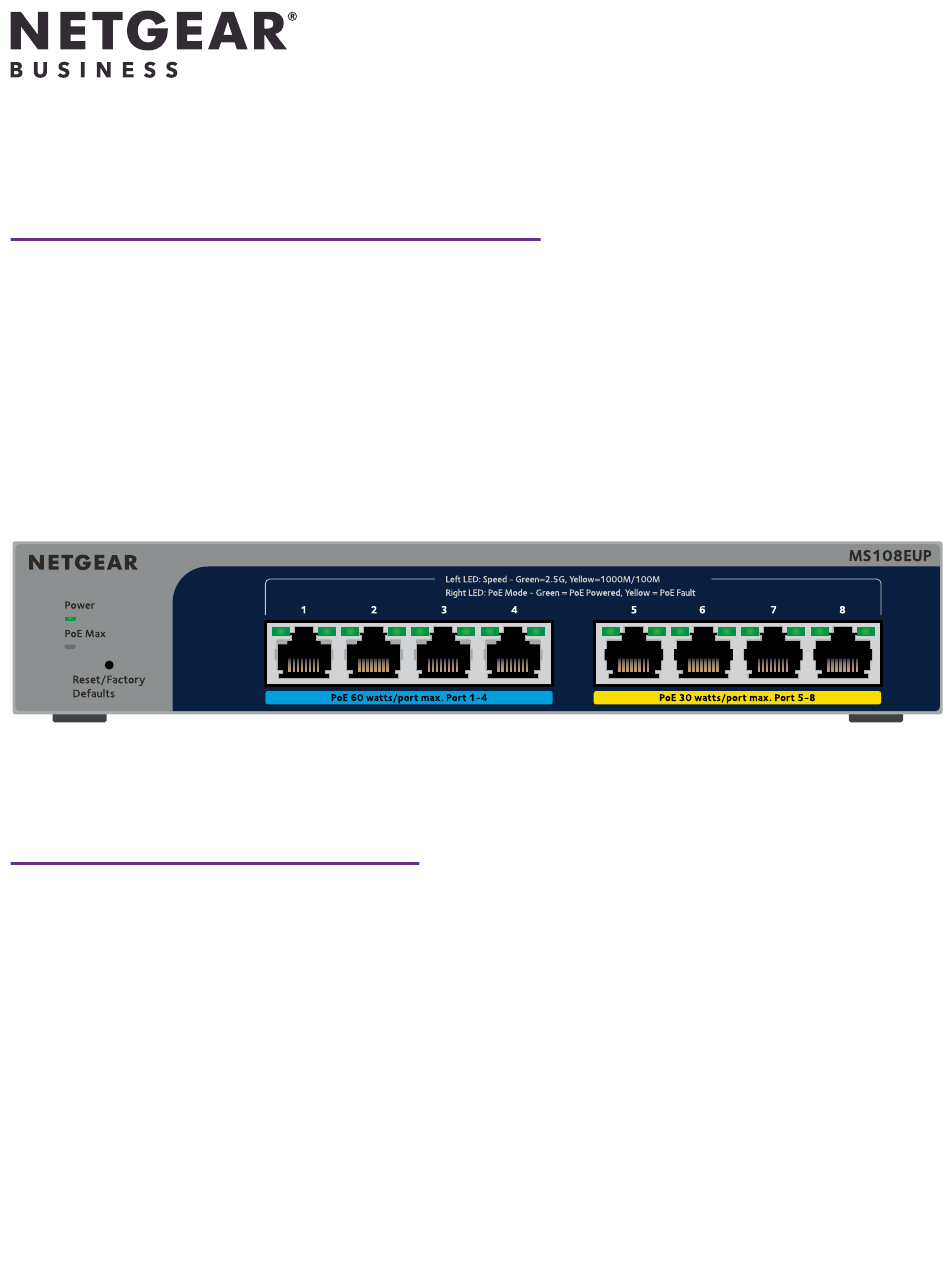

8-port Multi-Gigabit (2.5G) Ethernet
Ultra60 PoE++ Easy Smart Managed
Switch
Model MS108EUP
Package contents
•
NETGEAR 8-port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Easy Smart
Managed Switch
•
Power adapter (power cable varies by region)
•
Wall-mount installation kit
•
Rubber feet
•
Installation Guide
Advertisement
Table of Contents
Related Manuals for NETGEAR MS108EUP
Summary of Contents for NETGEAR MS108EUP
- Page 1 Installation Guide 8-port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Easy Smart Managed Switch Model MS108EUP Package contents • NETGEAR 8-port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Easy Smart Managed Switch • Power adapter (power cable varies by region) • Wall-mount installation kit •...
-
Page 2: Register The Switch
From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The My Products page displays. From the menu on the left, select Register a Product. -
Page 3: Connect The Switch
Ethernet surge protector inline between the switch and the outdoor device. Failure to do so can damage the switch. WARNING: Before connecting this switch to outdoor cables or devices, see kb.netgear.com/000057103/ for safety and warranty information. -
Page 4: Check The Leds
3. Check the LEDs When you connect the power adapter to the switch and plug the cable into an electrical outlet, the LEDs indicate the status: Description Power LED Solid green: The switch is powered on and operating normally. Off. Power is not supplied to the switch. PoE Max LED Off: Sufficient (more than 7W of) PoE power is available. - Page 5 You can use your computer’s network settings to discover the switch. Alternatively, you can download the NETGEAR Discovery Tool (NDT). The NETGEAR Discovery Tool lets you discover the switch in your network and access the device user interface (UI) of the switch from a Mac, Windows-based, or Linux-based computer.
-
Page 6: Poe Considerations
PoE considerations PoE power supplied by the switch is prioritized in ascending port order (from port 1 to port 8). The switch can supply a total of 230W across all active PoE+ and PoE++ ports. • Ports 1–4: Each port can supply up to 60W PoE++ (802.3bt) power. •... - Page 7 PoE troubleshooting Here are some tips for correcting PoE problems that might occur: • If the PoE Max LED is solid yellow, disconnect one or more PoE devices to prevent PoE oversubscription. • For each powered device (PD) that is connected to the switch, the associated PoE LED on the switch lights solid green.
-
Page 8: Mount The Switch On A Wall
Mount the switch on a wall We recommend that you use the wall-mount screws that are included. Locate the two mounting holes on the bottom panel of the switch. Mark and drill two mounting holes in the wall where you want to mount the switch. - Page 9 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy- policy. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.
