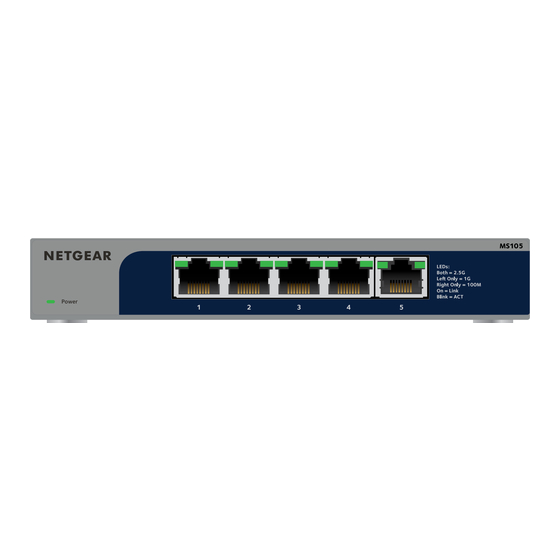

- Page 1 Installation Guide 5 port Multi-Gigabit 2.5G Ethernet Unmanaged Switch Model MS105 Package contents • NETGEAR 5-port Multi-Gigabit 2.5G Ethernet Unmanaged Switch • Power adapter • Wall-mount installation kit • Rubber feet • Installation Guide...
- Page 2 1. From a computer or mobile device that is connected to the Internet, visit my.netgear.com. 2. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The Your Registered Products page displays. 3. Click the REGISTER NEW PRODUCT button.
- Page 3 Connect network devices to the ports on the switch. NOTE: Each connected device requires a power adapter because the MS105 switch does not provide PoE power. Connect an RJ-45 port on the switch to a network. NOTE: In a small office or home office network, connect the switch to the LAN port of a router that, in turn, is connected to a modem.
- Page 4 Description Left Port LED only Solid green. 1 Gbps link on this port. Blinking green. 1 Gbps activity on this port. Off. No link is detected on this port. Right Port LED only Solid green. 100 Mbps link on this port. Blinking green.
- Page 5 Technical specifications Specification Description Network interfaces RJ-45 connectors that support 2.5GBASE-T, 1000BASE-T, and 100BASE-TX Ports 5 Multi-Gigabit Ethernet Power adapter 12V @ 1A DC input Maximum power 7.66W consumption Hardware security Kensington slot Dimensions (W x D x H) 6.2 x 4.0 x 1.1 in. (158 x 101 x 27 mm) Weight 1.1 lb (480 g) Operating temperature...
- Page 6 Support and Community Visit netgear.com/support to get your questions answered and access the latest downloads. You can also check out our NETGEAR Community for helpful advice at community. netgear.com. Regulatory and Legal Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à...
