Installation Guide
8-port Multi-Gigabit (2.5G) Ethernet
Ultra60 PoE++Unmanaged Switch
Model MS108UP
Package contents
•

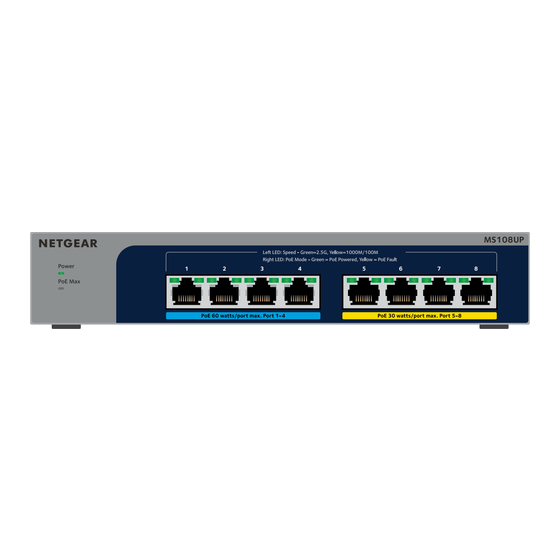

NETGEAR 8-port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Unmanaged
Switch
•
Power adapter (power cable varies by region)
•
Wall-mount installation kit
•
Rubber feet
•
Installation Guide
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NETGEAR MS108UP
Summary of Contents for NETGEAR MS108UP

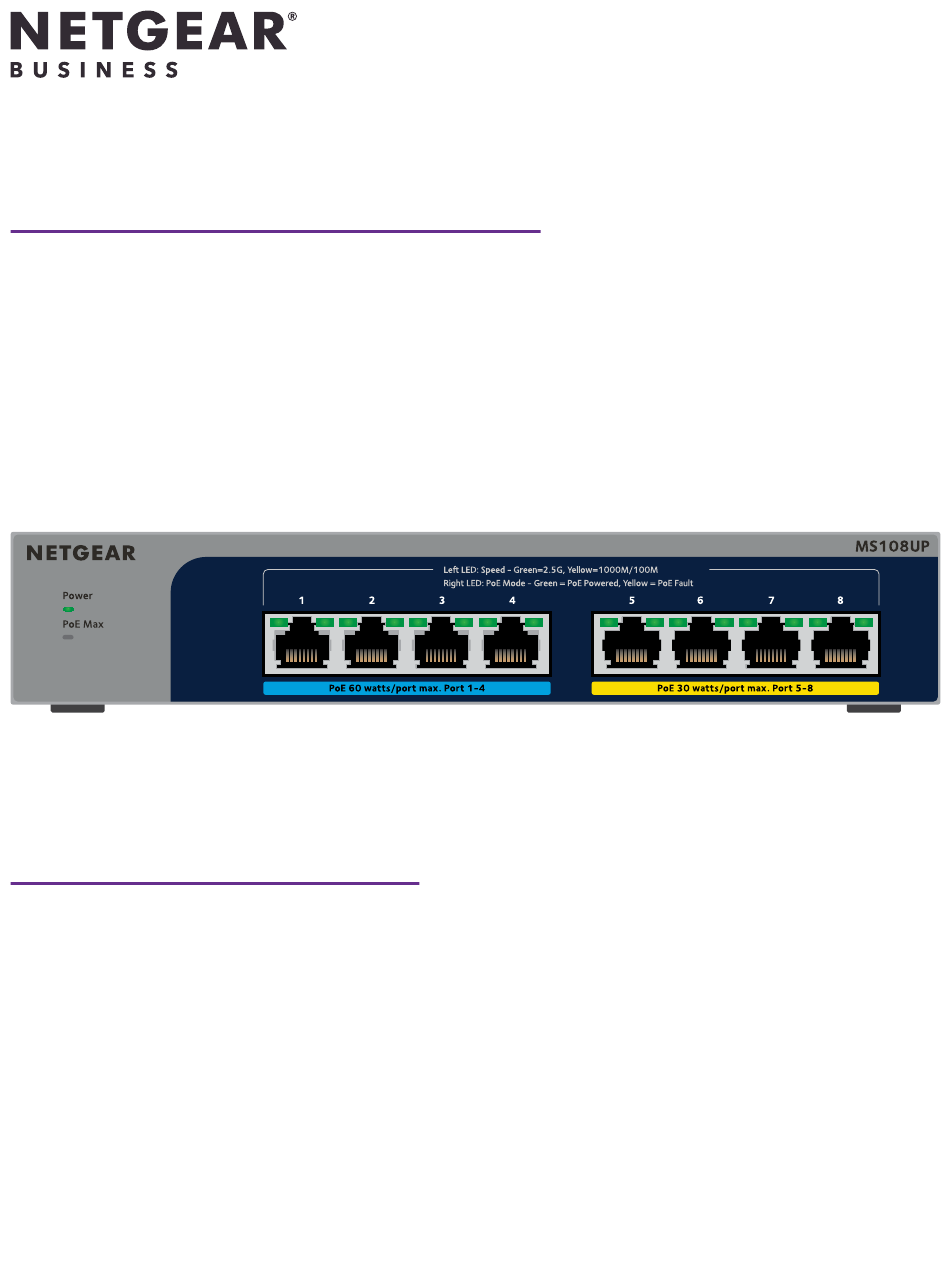

- Page 1 Installation Guide 8-port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++Unmanaged Switch Model MS108UP Package contents • NETGEAR 8-port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Unmanaged Switch • Power adapter (power cable varies by region) • Wall-mount installation kit • Rubber feet • Installation Guide...
- Page 2 From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The Your Registered Products page displays. Click the REGISTER NEW PRODUCT button.
- Page 3 Failure to do so can damage the switch. WARNING: Before connecting this switch to outdoor cables or devices, see https://kb.netgear.com/000057103 for safety and warranty information. 3. Check the LEDs When you connect the power adapter to the switch and plug the cable into an...
- Page 4 Description Right Port LED Solid Green. The port is delivering PoE power. Off. The port is not delivering PoE power. Solid yellow. A PoE fault occurred. PoE considerations PoE power supplied by the switch is prioritized in ascending port order (from port 1 to port 8).
- Page 5 PoE troubleshooting Here are some tips for correcting PoE problems that might occur: • If the PoE Max LED is solid yellow, disconnect one or more PoE devices to prevent PoE oversubscription. • For each powered device (PD) that is connected to the switch, the associated PoE LED on the switch lights solid green.
- Page 6 Mount the switch on a wall We recommend that you use the wall-mount screws that are included. The screws are 0.25 in. (6.5 mm) in diameter, 0.68 in. (17.4 mm) in length. Locate the two mounting holes on the bottom panel of the switch. Mark and drill two mounting holes in the wall where you want to mount the switch.
- Page 7 Technical specifications Specification Description Network interfaces RJ-45 connectors that support 2.5GBASE-T, 1000BASE-T , and 100BASE-TX Ports 8 Multi-Gigabit (2.5G) Ethernet Ports 1–4: PoE++ (802.3bt) Ports 5–8: PoE+ (802.3at) PoE budget 230W Power adapter 54V @ 4.7A DC input Power consumption 270.5W Dimensions (W x D x H) 8.27 x 5.51 x 1.58 in. (210 x 140 x 40 mm) Weight 1.98 lb (900 g)
- Page 8 Support and Community Visit netgear.com/support to get your questions answered and access the latest downloads. You can also check out our NETGEAR Community for helpful advice at community. netgear.com. Regulatory and Legal Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à...
