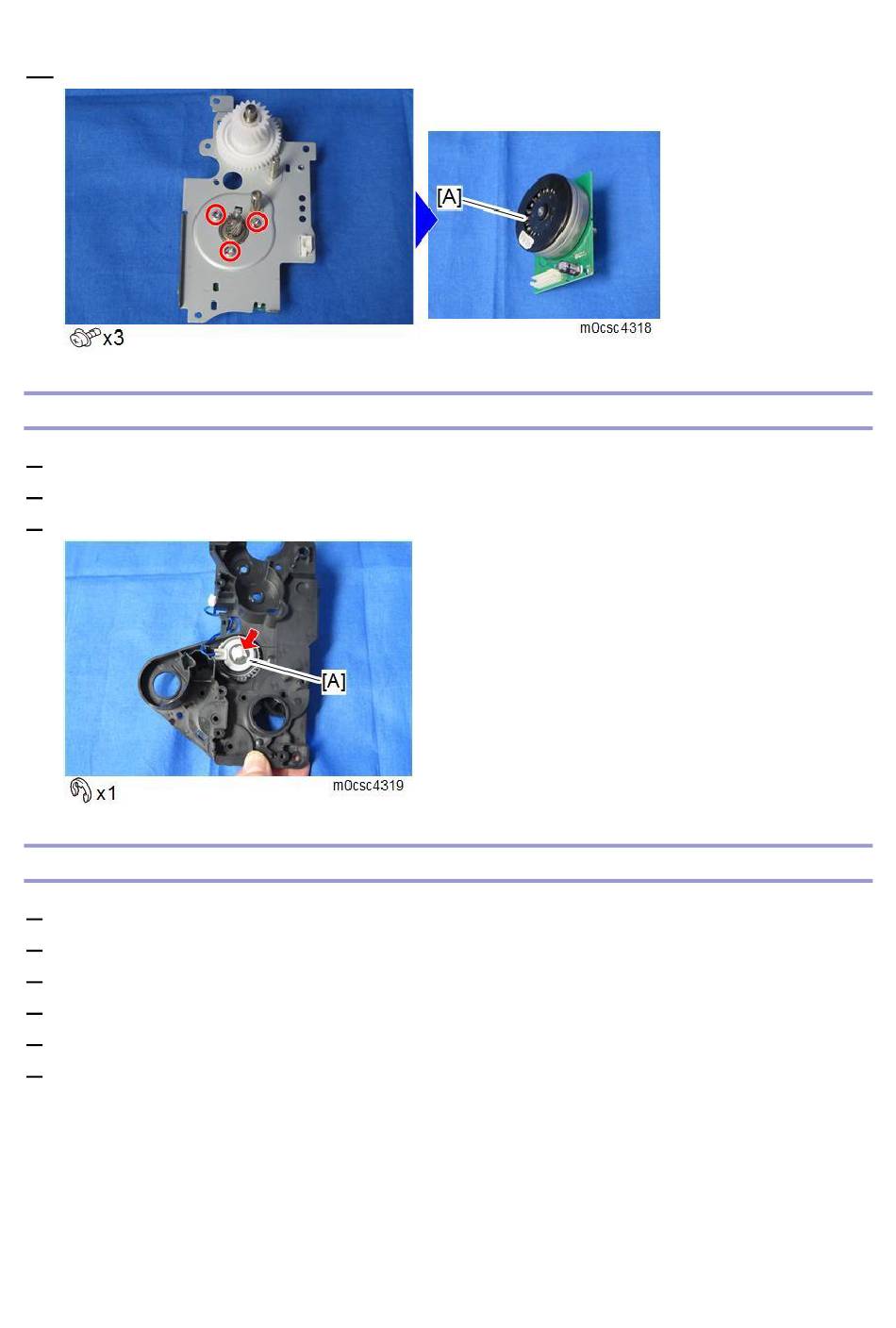

15. Remove the fusing motor (M4) [A].

Registration Clutch (CL2)

Remove the left cover.
1.
Remove the fusing motor.
2.
Remove the registration clutch (CL2) [A].
3.

Paper Feed Roller

Remove all AIO cartridges.
1.
Remove the waste toner bottle.
2.
Remove the left cover.
3.
Remove the paper feed clutch.
4.
Close the top cover and the front cover.
5.
Pull out the paper tray.
6.
(Left Cover)
(Fusing Motor (M4))
(AIO Cartridge)
(Waste Toner
(Left Cover)
(Paper Feed Clutch
4.Replacement and Adjustment
Bottle)
(CL1))
