8. Touch Panel
8. Touch Panel
This equipment has a touch panel that enables keyboard-less, mouse-less operations by communication
with the host computer using the RS-232C cable.
Touch panel
MENU - + ESC
POWER
Touch panel
Touch panel controller
Host PC
Communication controller
CPU
Serial communication
INT

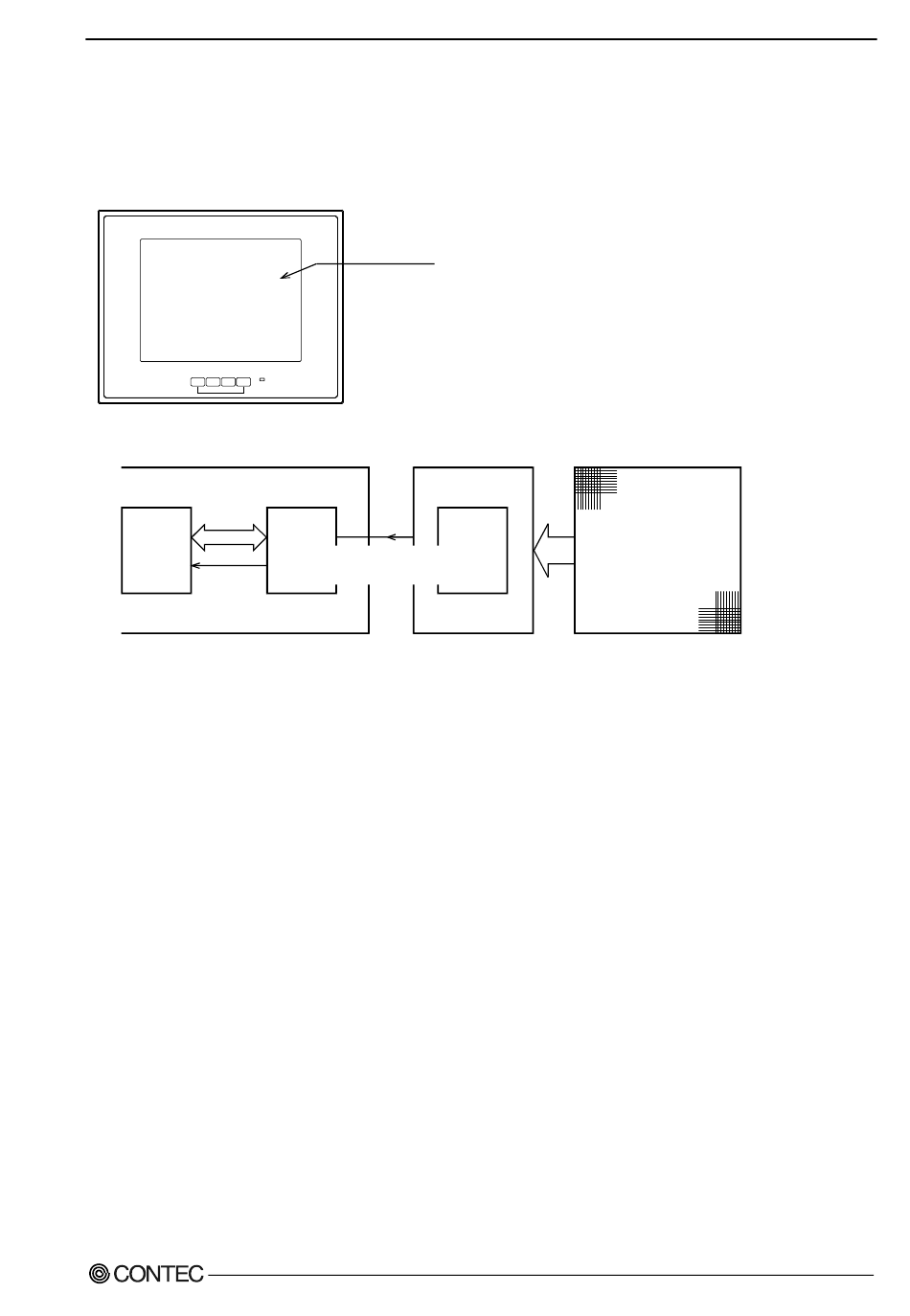

Figure 8.1. Touch Panel and Block Diagram
Data input at the touch panel is processed by the touch panel controller and passed to the host PC via
the serial port on the CPU in the controller.
Before the touch panel can be used, touch panel driver software must be installed. Note that the driver
software is not bundled with this product. Download it from the CONTEC's web site.
For further details, refer to the READ_ME file for each driver.
33
FPD-L71ST-DC1, FPD-H71XT-DC1
