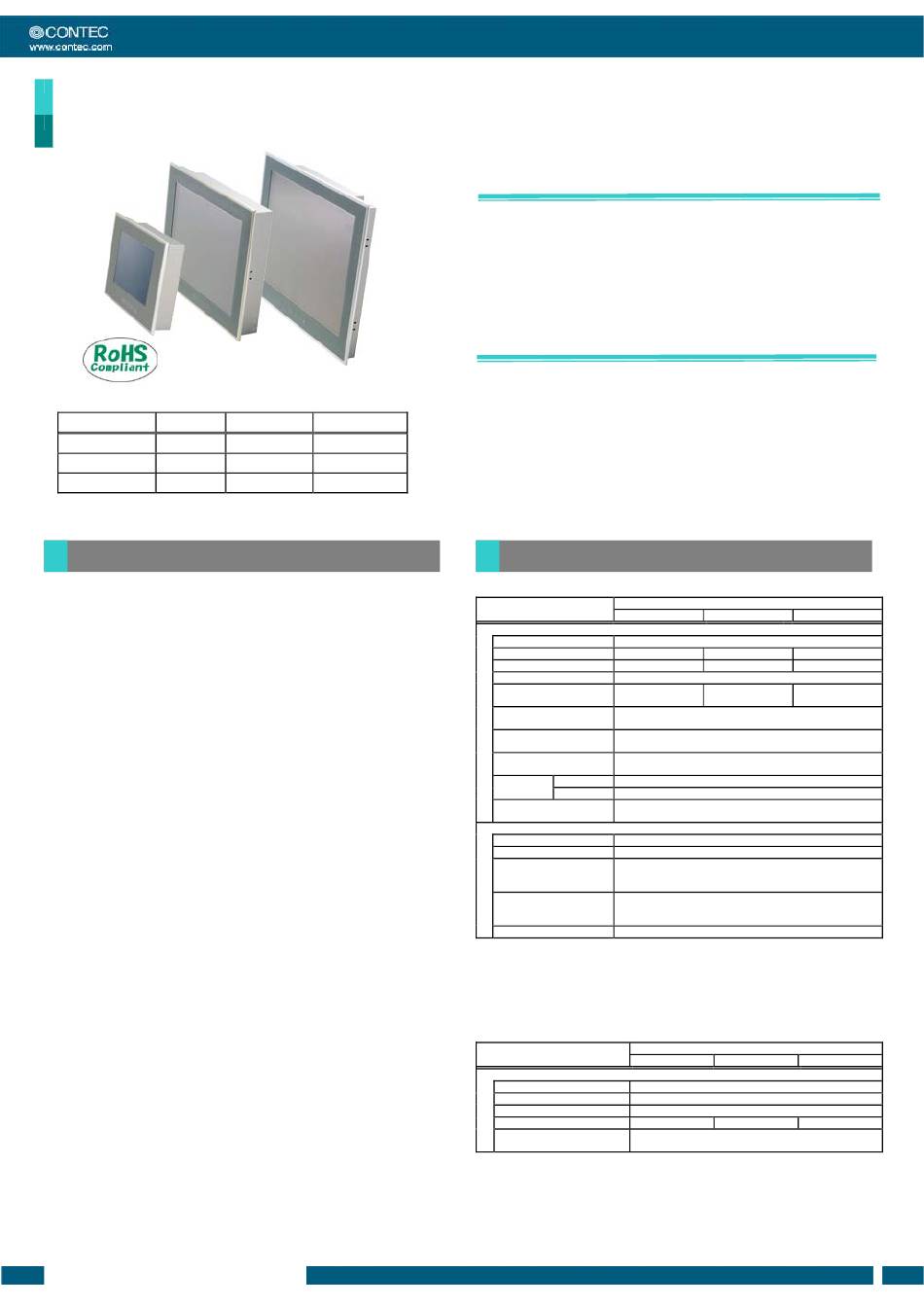

Contec 70 Series Manual

Panel Mounted LVDS&DVI-D Inputs Supported
FLAT PANEL DISPLAY 70 Series
Panel Mounted 71
Model Screen size
FPD-S71VT-DC1
6.5 inches
FPD-L71ST-DC1
12.1 inches
FPD-H71XT-DC1
15.0 inches
* Specifications, color and design of the products are subject to
change without notice.
Features
LVDS and DVI-D inputs supported panel mount TFT LCD
display
LVDS and DVI-D inputs, that are less affected by the
interference of noise, are supported for host computer
connection. Because of the digital signal input, up to 5 m of
cable length is available. The video signal and touch panel
signal can be connected with one cable depending on the host
PC to be connected.
Full-bright, wide-angle-of-visibility type of liquid crystals capable
of displaying up to 16,777,216 colors on the 15 inches and
262,144 colors on the 12.1/6.5 inches by adopting the
lightweight aluminum-made front.
Touch panel enables keyboard-less operation.
These products have analog touch panel enabling mouse
emulation using driver software.
Touch panel is available via RS-232C (Built-in video cable) or
USB connection.
The panel attachment size compatible with IPC-DT60(Panel
mounted 61) series
Because its panel attachment is compatible with the
predecessor IPC-DT60(Panel mounted 61) series, they are
transposable.
Front side in IP65-rated dustproof/drip-proof structure
Front side in IP65-rated dustproof/drip-proof structure
AC adapter, stand and connection cable is available as
option.
An optional AC adapter (IPC-ACAP12-02), stand (IPC-SND-03)
and connection cable is available to run the display from the AC
power supply, to use as a desktop display and for connection to
the host computer.
* For more details on host computer or option of this product, contact your retailer.
FPD-L71ST-DC1, FPD-H71XT-DC1
Number of pixels Number of colors
640 x 480 dots 262,144 colors
800 x 600 dots 262,144 colors
1024 x 768 dots 16,777,216 colors
These products are two inputs (LVDS or DVI-D sign) compatible,
panel-mounted, TFT LCD display unit for use with host
computers such as the CONTEC IPC series and SBCs (single
board computers).
Touch panel is available via RS-232C (Built-in video cable) or
USB connection.
Because its panel attachment is compatible with the
predecessor IPC-DT60(Panel mounted 61) series, they are
transposable.
Specifications
Function Specifications
Item
FPD-S71VT-DC1
Screen
Assembly type Panel mounted, desktop *1
Screen size 6.5 inches
Number of pixels 640 x 480 dots
Display type TFT Color LCD
Number of colors 262,144 colors
Brightness control Adjustment using the front switch or software control from the
host computer
Backlight control Can be turned on or off by a front switch or via software control
from the host computer.
Display interface LVDS input (26 pin half pitch connector)
DVI-D input (24 pin DVI (Female) connector)
Input signal LVDS input 26 pin half pitch connector *2
specification DVI-D input
Digital RGB (complies with TMDS) *2
Cable length which 5m or less
recommends
Touch panel
Resolution 4096 x 4096
Detection method Resistive-layer analog method
Touch life expectancy One million repeated touches
(as tested by mechanical touching under 300g of force at a rate
of two presses per second)
Touch panel interface Connect to the host computer using either USB *3 or RS-232C.
RS-232C : built-in LVDS/DVI Connector
USB: USB1.1-compliant, TypeB Connector
Touch panel driver (option) For Windows : IPC-SLIB-01
*1 Optional desk stand IPC-SND-03 allowing desktop installation
*2 Using a cable longer than 5 m may reduce the image quality. The cable should be as short
as possible as degradation. the image quality may result even when the cable is 5 m or
shorter depending on the type of host computer or cable.
*3 The touch panel USB interface is only supported on Windows XP/2000/98SE.
*4 It is 262,144 when connecting the LVDS.
Power Supply Specifications
Item
FPD-S71VT-DC1
Power supply input part
Power supply connector 4-pin connector for +12 - 24VDC power supply
AC adapter jack Corresponding to +12 (±5%) VDC output AC adapter
Input power supply voltage +12V-24VDC±5％
Consumption current *1 0.6A (Max.)
Consumption current 0.4A (Max.)
(power save mode) *1
*1 When +12VDC is input.
Ver.1.11
Specification
FPD-L71ST-DC1 FPD-H71XT-DC1
12.1 inches 15.0 inches
800 x 600 dots 1024 x 768 dots
262,144 colors 16,777,216 colors
*4
Specification
FPD-L71ST-DC1 FPD-H71XT-DC1
1.4A (Max.) 1.6A (Max.)
