5. Connection to the Host Computer
When connecting to a SEH-9450-LAS/SPC-9450-LV/SPI-845x-LLVA/SLC-85xx-LxA/SPC-852x-
LA/IPC-BX701/IPC-BX900/IPC-BX950 series
It is required to set the output resolution to a right one via BIOS according to the supported resolution
of the connected flat panel display.
1. Select the "Advanced Chipset Features".

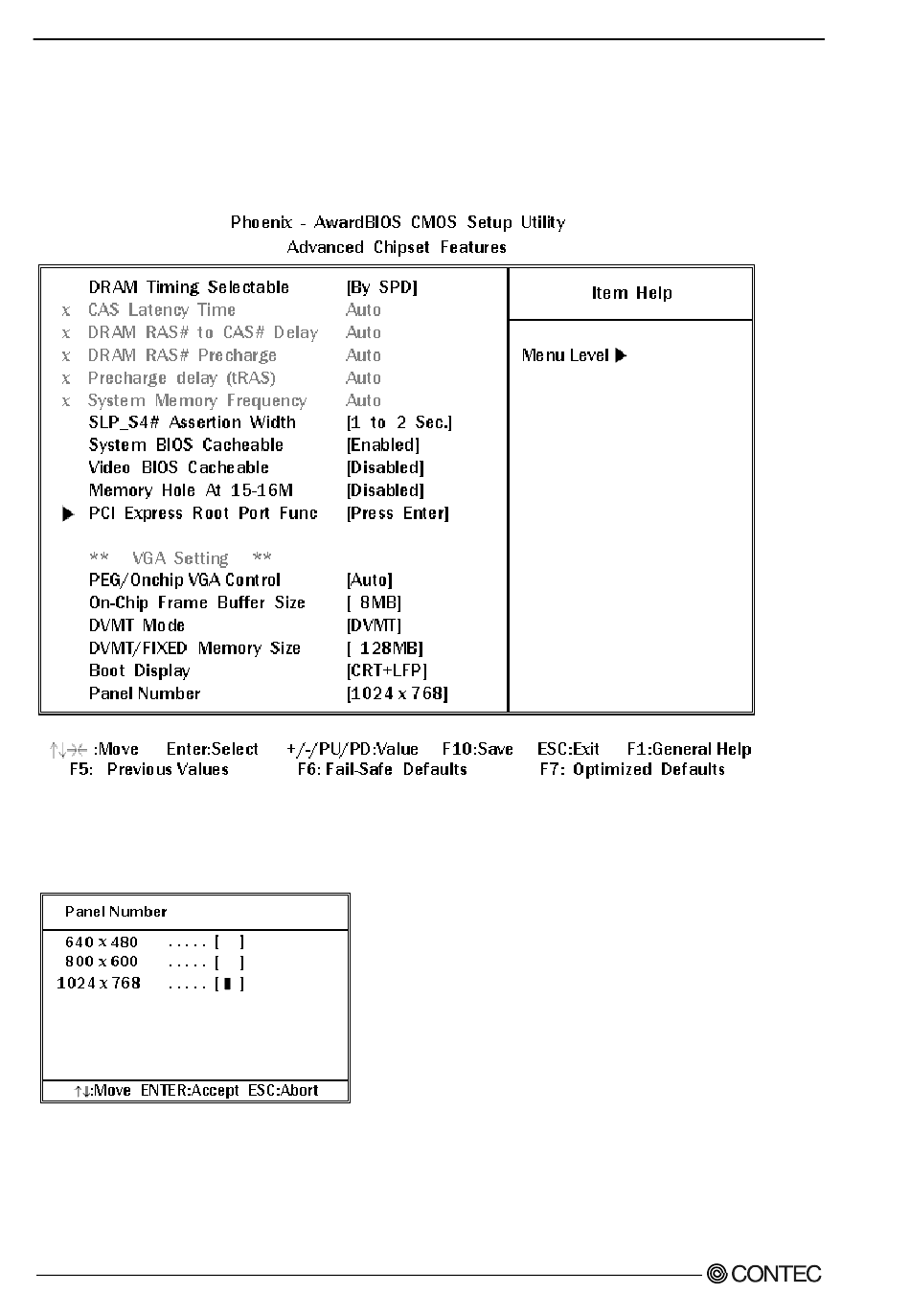

Figure 5.3. Advanced Chipset Features Setup
2. Specify the output resolution corresponding to the connected display from the "Panel Number".
Figure 5.4. Panel Number Setup
24
FPD-L71ST-DC1, FPD-H71XT-DC1
