Antenna Configuration for External
Antenna Model Access Point

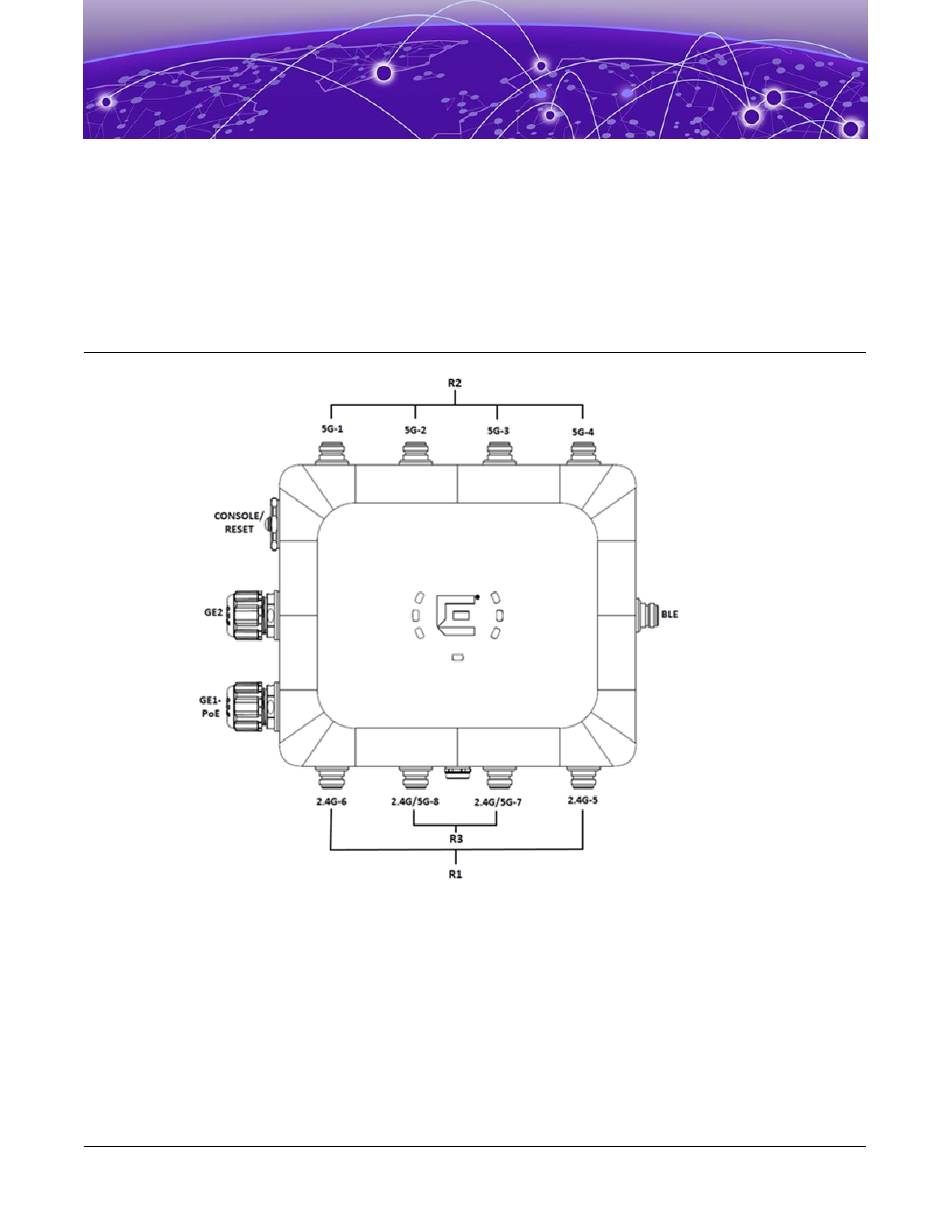

Figure 20: AP460e external antenna connector ports
Antenna socket radio mapping information
•
Radio 1 (R1) − antennas 5 and 6
•
Radio 2 (R2) − antennas 1, 2, 3, and 4
•
Radio 3 (R3) − antennas 7 and 8
