Install the Access Point
•
KT-147407-02 pole part
•
Access point
•
Four M6 hex-head screws
•
Two hex-head M12 stainless-steel screws and nuts
•
Two 0.5 in. (12.7 mm) wide stainless-steel cable clamps
About This Task
To attach the access point to a pole:
Procedure
1. Attach the flat part and the 1-axis tilt part of the KT-147407-02 bracket to the access point.
For instructions on how to attach the bracket parts, see
Using KT-147407-02 Flat Part and 1-Axis Tilt
2. Attach the pole part to the 1-axis tilt part using two M12 bolts through the large bracket holes on the
1-axis tilt part and the pole part.

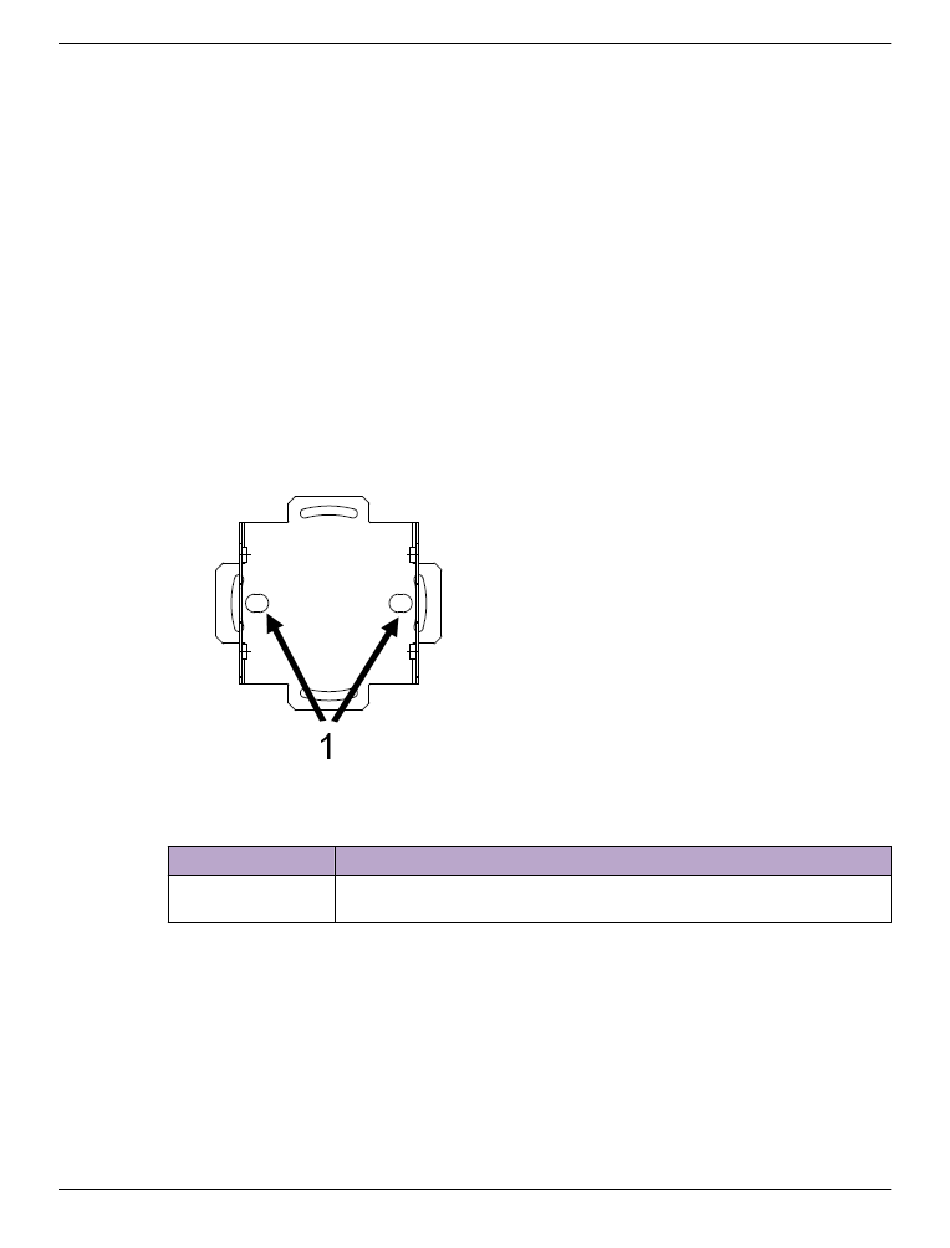

Figure 12: Large bracket holes on the 1-axis tilt part of KT-147407-02 bracket
Callout
1
Part.
Description
Large bracket holes used for attaching the M12 screws on the 1-axis tilt part of
the KT-147407-02 bracket
Attach the Access Point to a Pole Using All Three
KT-147407-02 Bracket Parts
