Install the Access Point
•
Two M6 hex-head screws is used for attaching the MBO-ART02 articulating mounting bracket to the
access point
•
Four M4 hex-head screws are used for attaching the MBO-ART02 articulating mounting bracket to
the wall
Note
The MBO-ART02 bracket has +80 degrees to –80 degrees of articulation on each axis.
Procedure
1. Using the shorter end of the MBO-ART02 bracket end as a template, mark and drill four holes on the
wall.

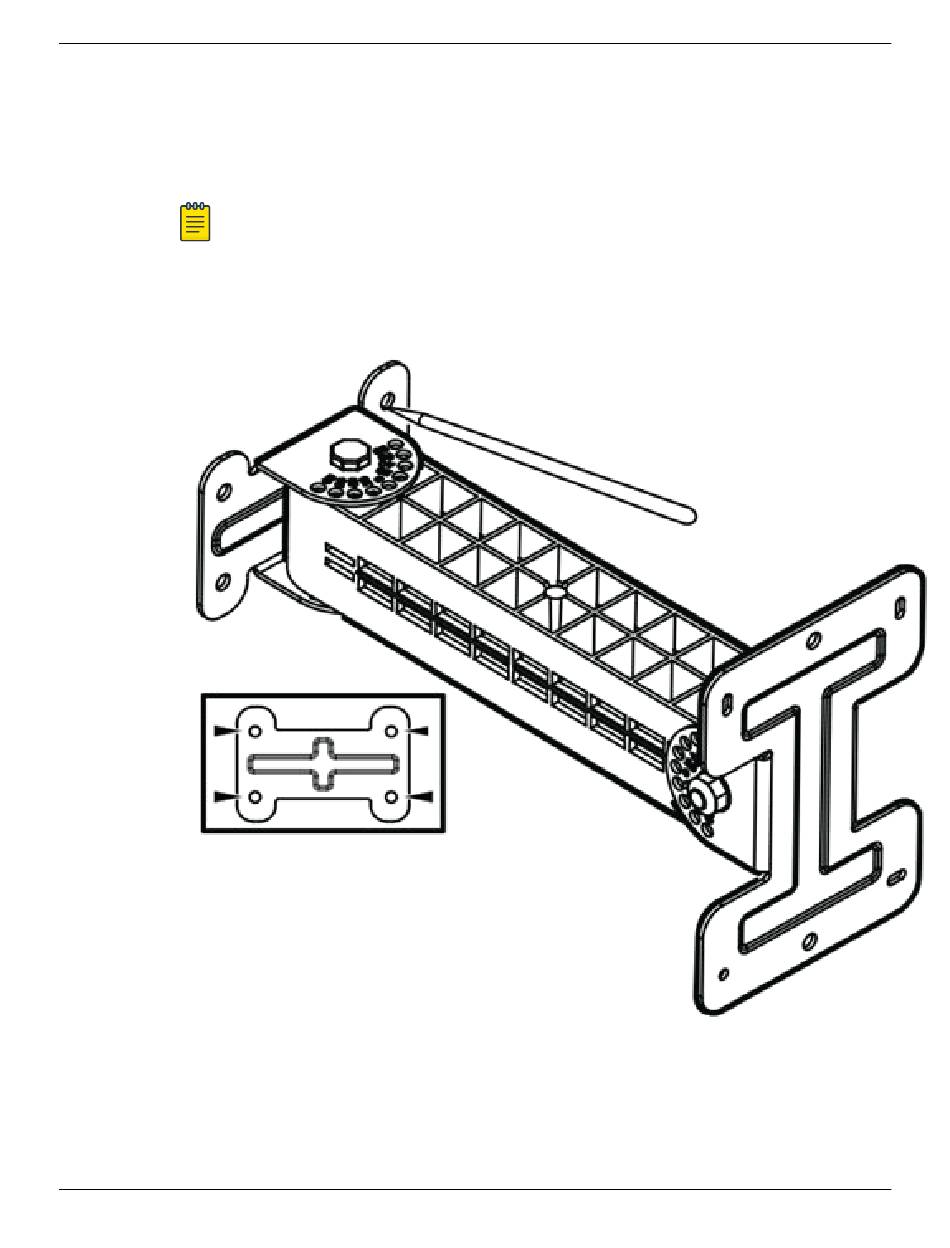

Figure 8: MBO-ART02 articulating mounting bracket template for wall attachment
holes
2. Using two M6 hex-head screws, attach the MBO-ART02 articulating mounting bracket to the access
point.
Install the Access Point on a Flat Surface Using the
MBO-ART02 Articulating Mounting Bracket
