Setup procedure and adjustment of the corn head

8.9 Cardan shafts

We deliver our machines with cardan shafts provided with friction safety clutch.
At the beginning of each harvest season, remove the PTO shaft and grease it!

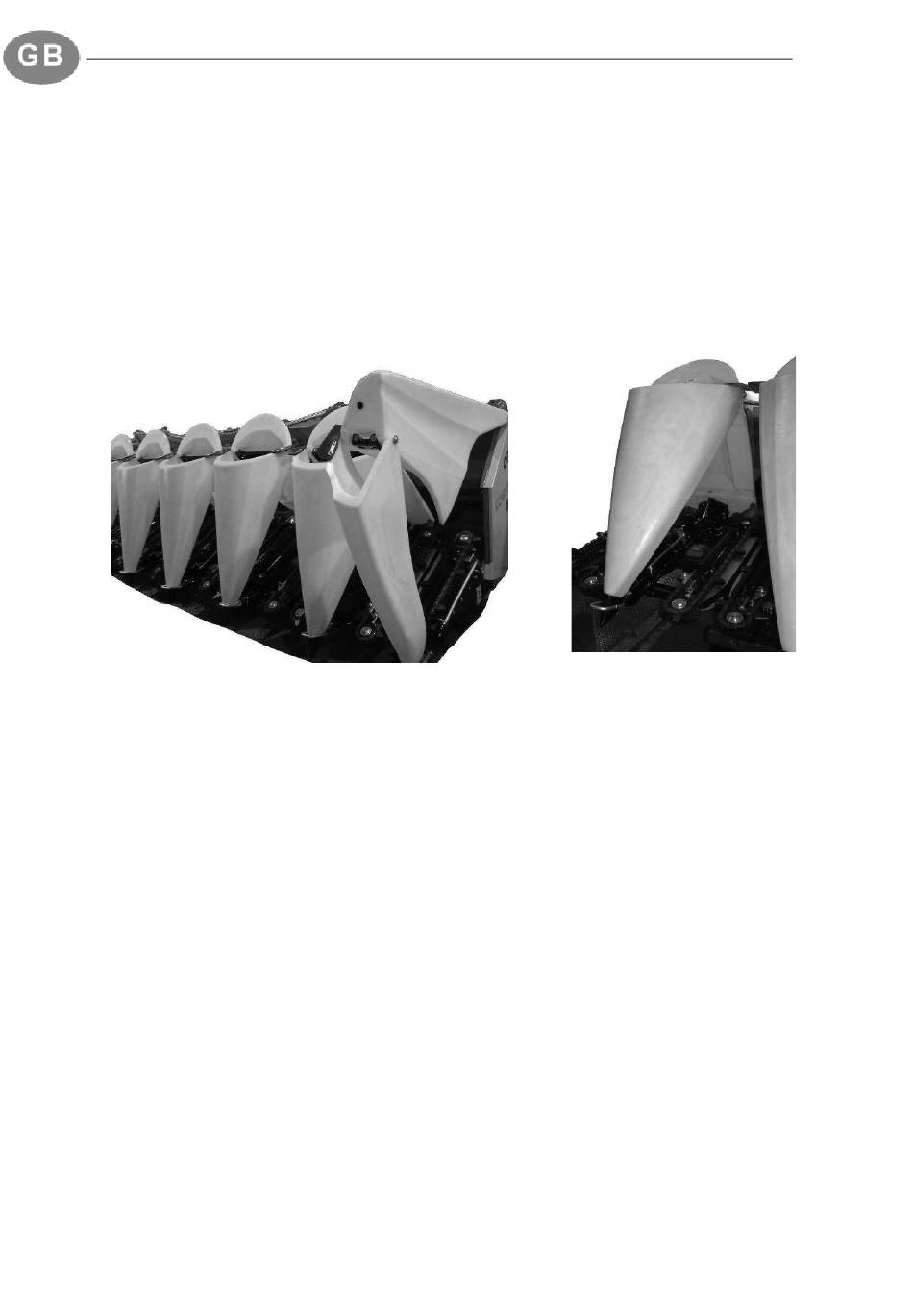

8.10 Plastic snouts

Position the corn head, when mounted on the combine feeder house such that the
distance between the skid shoe of the snapping unit and the ground is 8 cm, and
with skid shoe of the snout just touching the ground. Skid shoe is not adjustable.
Transport position
Manufacturer and Distributor are not responsible for damage caused by incorrect
setting of snout position.
36
