Attention! The figure shows only the labels plotted on one side
of the header, but in reality the machine must be placed sym-
If any of the labels are damaged or missing they must be re-

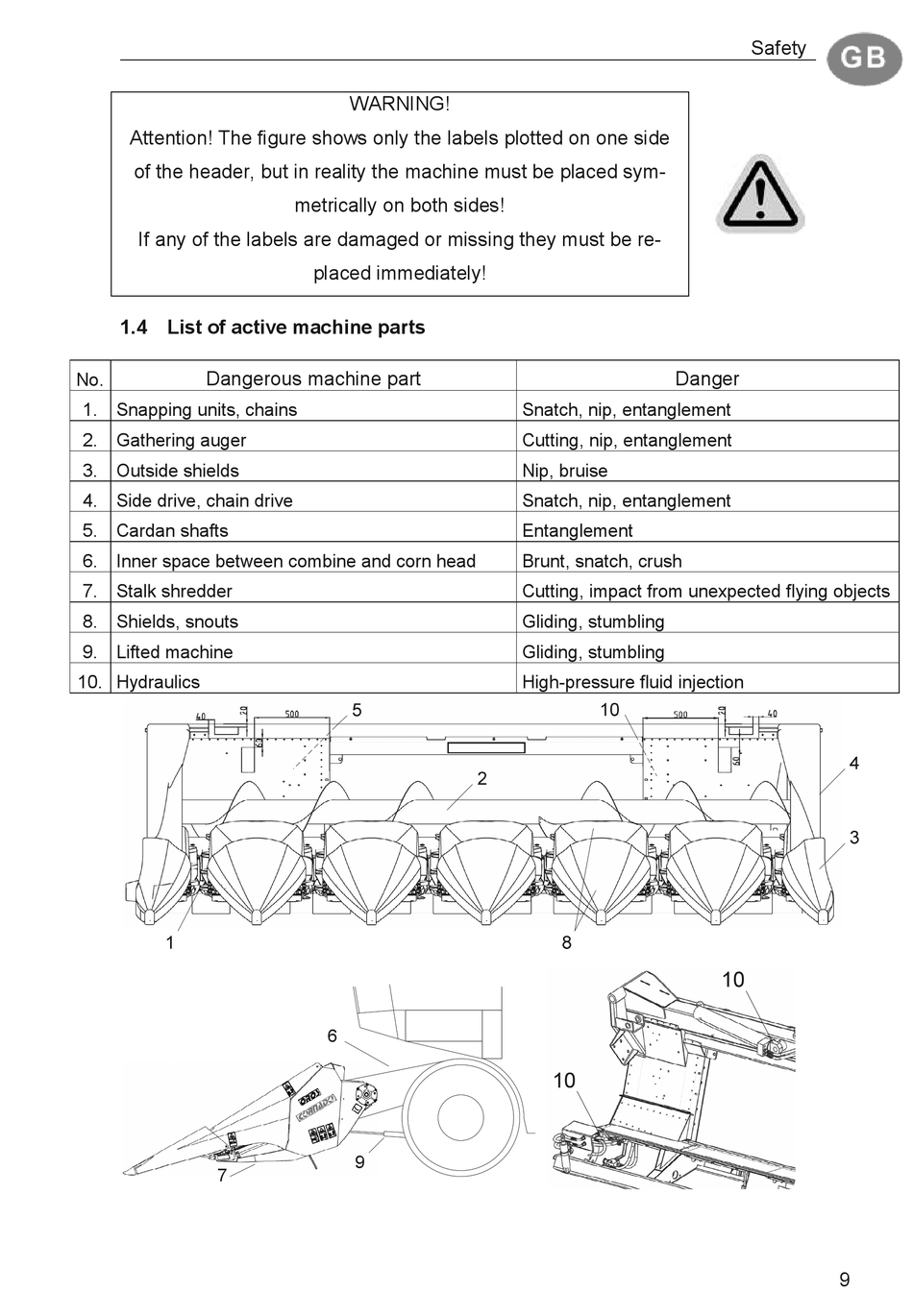

1.4 List of active machine parts

Dangerous machine part
No.
1. Snapping units, chains
2. Gathering auger
3. Outside shields
4. Side drive, chain drive
5. Cardan shafts
6. Inner space between combine and corn head
7. Stalk shredder
8. Shields, snouts
9. Lifted machine
10. Hydraulics
WARNING!
metrically on both sides!
placed immediately!
A
Danger
Snatch, nip, entanglement
Cutting, nip, entanglement
Nip, bruise
Snatch, nip, entanglement
Entanglement
Brunt, snatch, crush
Cutting, impact from unexpected flying objects
Gliding, stumbling
Gliding, stumbling
High-pressure fluid injection
Safety
9
