Mounting the corn head on the combine
the corn heads hooks on the frame (7). With the combine go to the corn head and
insert the hook pins to the hook holes. Lift the corn head with the feeder house. On
the lower part of the corn head, the left and right hooks (8) lift the hook on the
consoles (9) insert the pin to the holes(10) and secure with spring pin (11).
At one end of the previously prepared and fixed puller handle (2) which on the other
end of the consoles (12) to strengthen the corn head hooks with the upper eyebolts
(13) and secured with the shaft and pin.
The sealing plate insert between the connecting piece on the side plate, in contact
with the bottom plate, and placed in the bottom two springs (14) to the right and left
to the correct position.

6.1.9 RSM-181

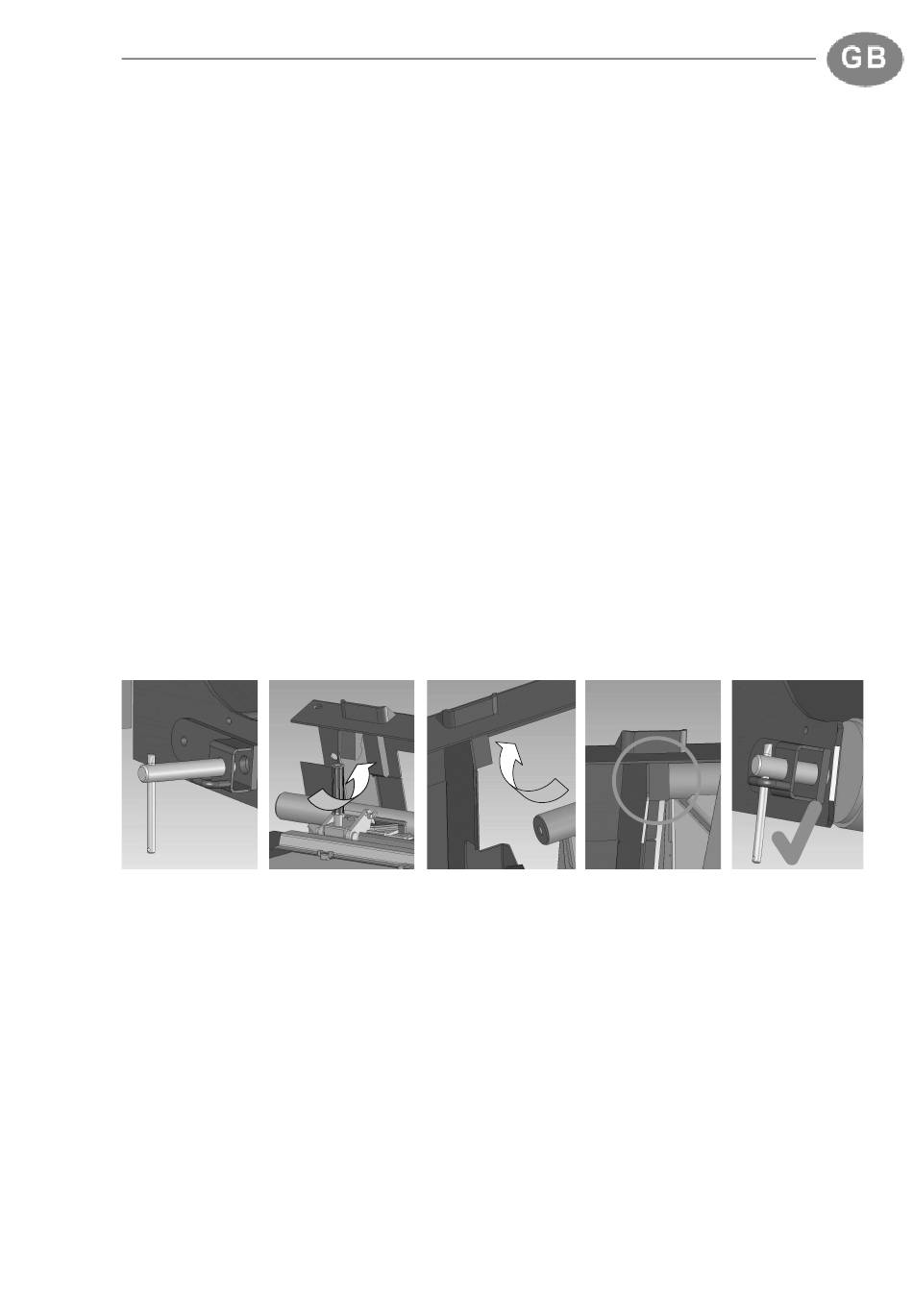

Pull out the safety-pin on the adapter!
Put on the feeder houses tab on the adapters locking hook, then attach the adapter
the feeder house with the safety-pin!
Make sure that the safety pin is properly secured!
The controlled finger drop-in replacement for the fixed finger drop-in on the feeder
house:
1. Remove the grain harvester or other adapters from the combine feeder house.
2. Fix the frame (6) with the hooks (1).
3. Measure the springs' length under the feeder house which are to its right, left
side and under it. (2; 3; 4). Then loosen the spring blocks.
4. Remove the springs (5) from the frame (6).
5. Remove the tension bars (7; 8) from the frame (6).
6. Lower the frame (6) until it stops.
