8.11 Automatic header height control

The header height controls electronic structure is fully consistent with the harvester
electronics. The calibration process, depending on the combine, should be carried
out as it's described in the operating manual.

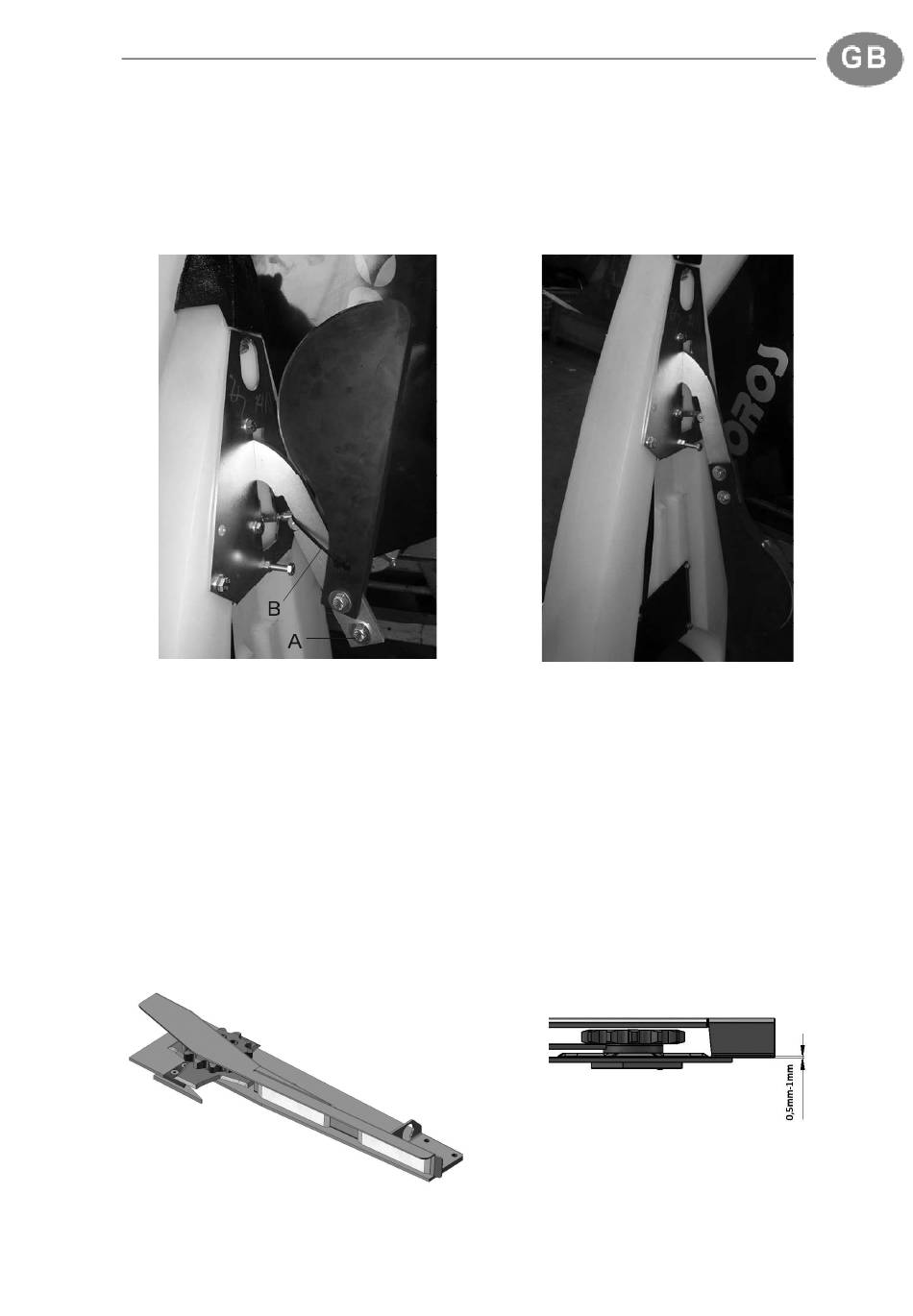

Transport position
The header height controls rubber sliding element is fixed, as its show in the left
picture when the corn head is shipped. The sliding element is placed in work posi-
tion if the bolt marked with "A" is removed and the cable marked with "B" is cut.
Place the rubber sliding element in the position shown in the picture on the right.
Then tighten both bolts shown on the right picture.

8.12 Installing the sunflower kit

Setup procedure and adjustment of the corn head
The allowed distance between the knives
is 0,5-1 mm!
Work position
