Connecting The Electric Snapping Plate Adjuster - MacDon C Series Operator's Manual

Mounting the corn head on the combine
The machines are delivered with drive shafts, which are factory-equipped with
shield, as well the corn head drives are mounted with original shields.
WARNING!
Position the protective shield of the drive shaft, according to the
combine's operator's manual, after connecting to the feeder drive
shaft!
To prevent the rotation of the header drive shaft shield, attach both
original chain restraints to the corn head!

6.3 Connecting the electric snapping plate adjuster

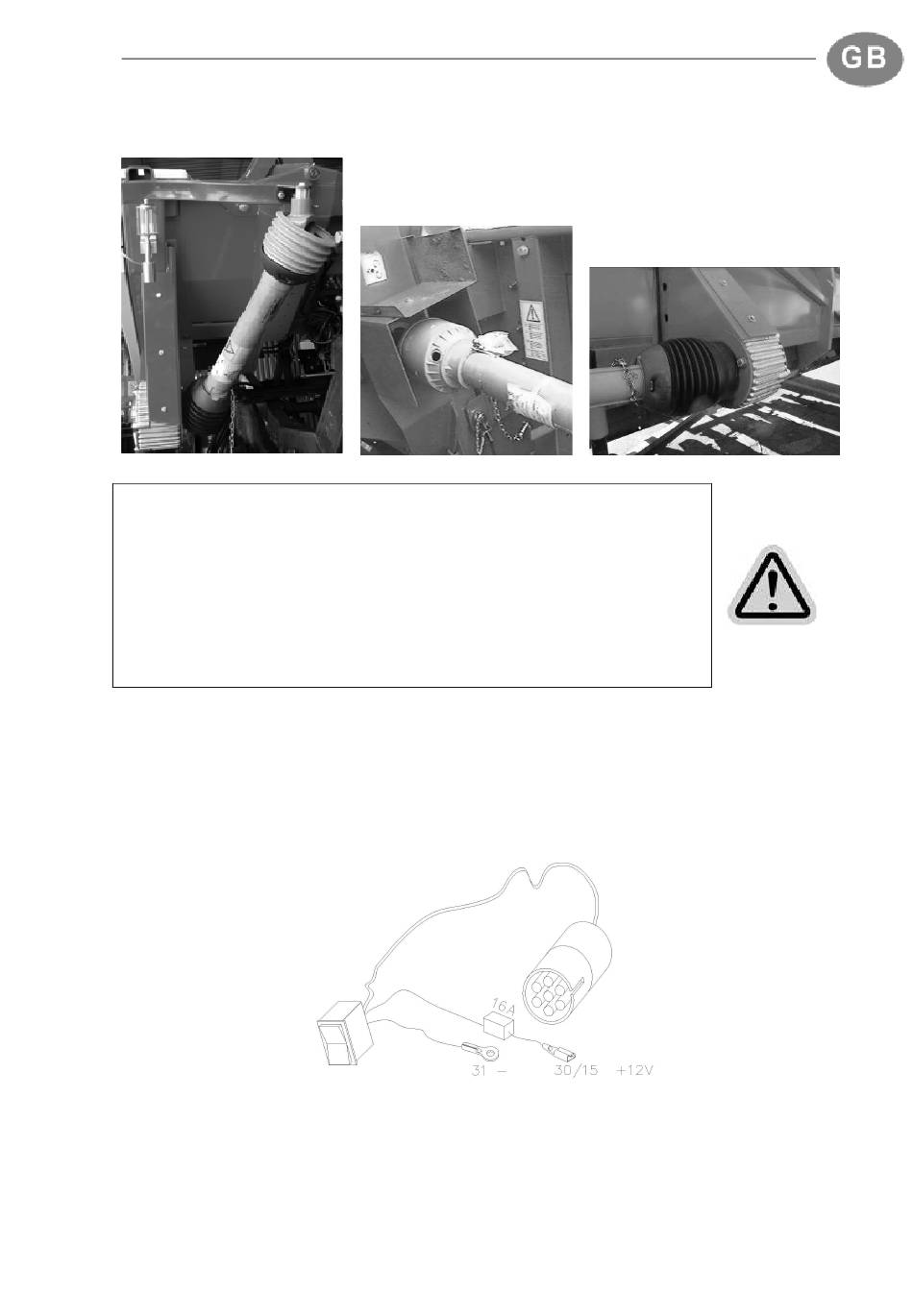

Connect the electric snapping plate adjuster according to the following figure:
