MacDon C Series Operator's Manual page 39

Setup procedure and adjustment of the corn head
Part
Name:
number:
Sunflower
1.377.153
kit - LH
Sunflower
1.377.154
kit - RH
38

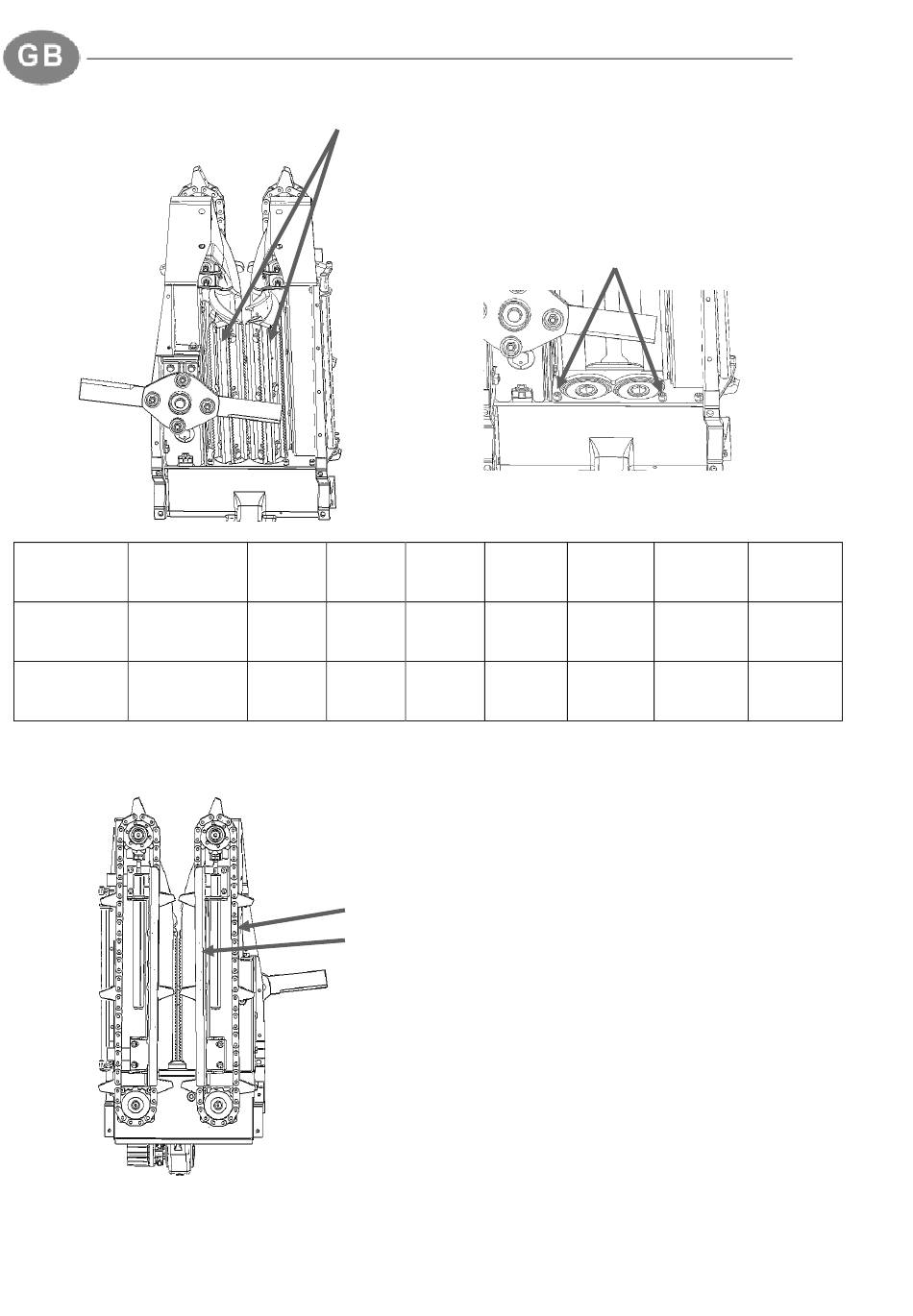

Remove the snapping rolls along with the guide
plates and dust guards!
Remove the two countersunk-head screws. Insert the
cover plate then secure it with the previously removed
screws!
6R 8R 9R
- -
6 pcs 8 pcs 9 pcs
Following the chart above chose the correct type and amount
of sunflower kit for your adapter!
In case of a foldable adapter the LH version of the sun-
flower kit is always have to be installed on the last snap-
ping unit on the right side of the main frame!
Remove the gathering chain along with the chain tensioner
spring!
Remove the chain guide and the snapping plate!
12R 4+2R
- - 1 pcs
12 pcs 5 pcs
4+2x2R 6+2x3R
1 pcs 1 pcs
7 pcs 11 pcs
