Mounting the corn head on the combine

6.1 Mounting the corn heads on the combine is described below.

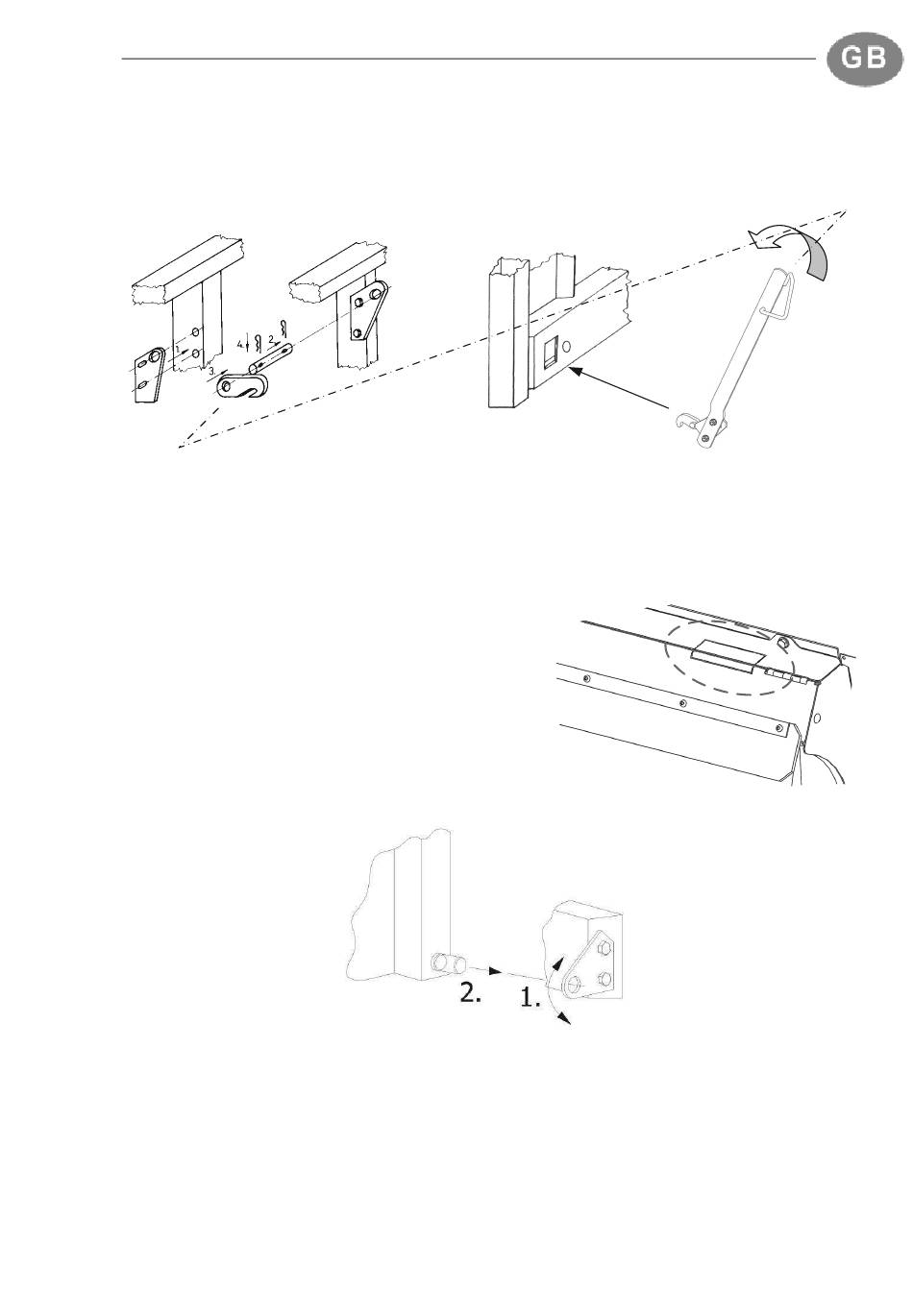

Adjust the position of the latch retainer (1) to ensure that the feeder house lever is

fully engaged. If the proper position is not attainable, change the original arm of the

feeder house with the arm supplied as an attachment.

Attention! In case of the Case AFX adaptation a

perforated plate must be removed from the roof

of the hood!

Insert the spring pivot pin (2) of the feeder house into the hole of the retainer plate

(1) which is assembled on the lower support. If required, adjust the pin alignment.
