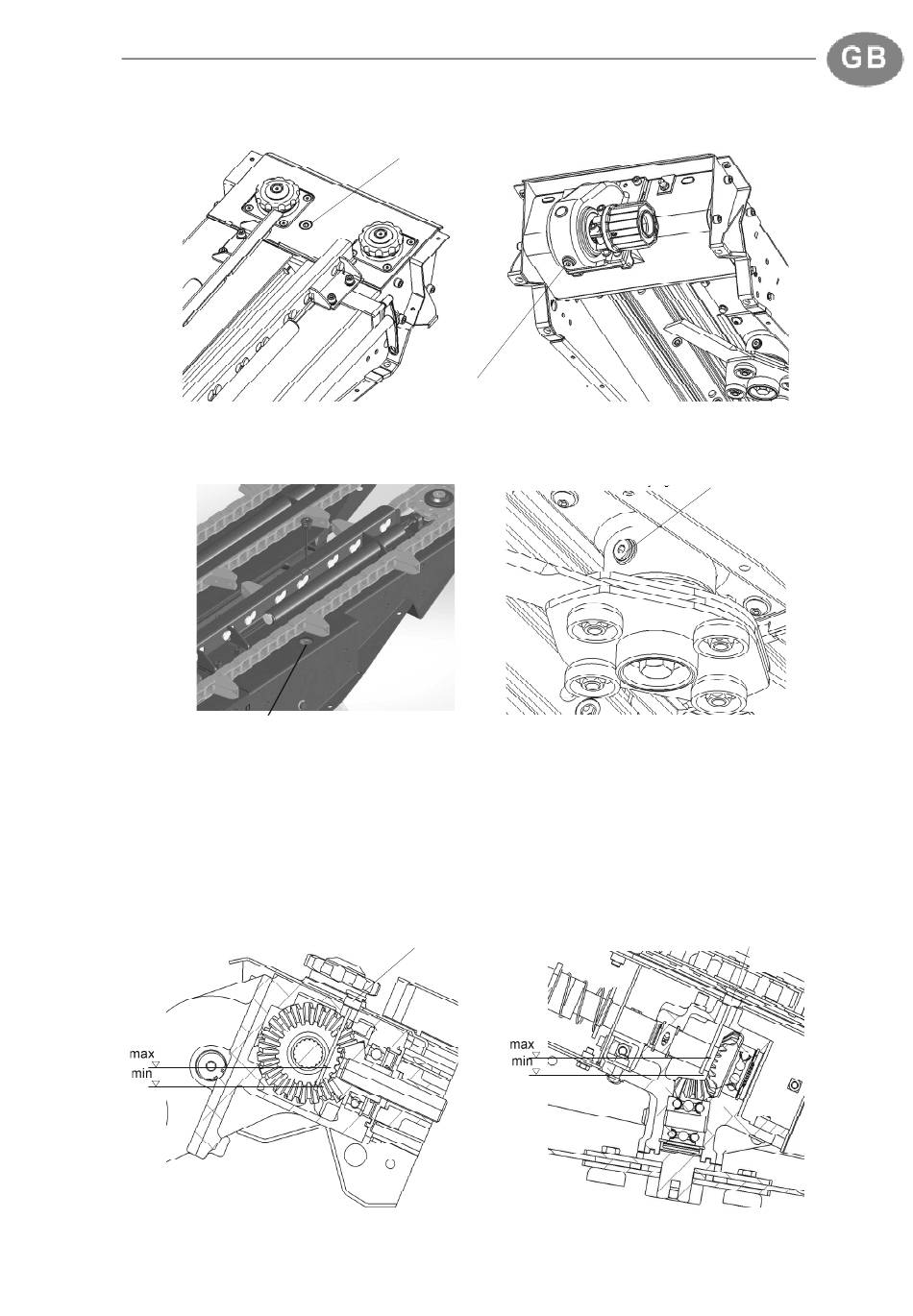

Snapping unit main gearbox:

Stalk chopper gearbox:

Oil filling hole

Procedure to check the oil level:

- first screw off the dipstick then wipe it clean,

- Put back the dipstick into its place (DO NOT SCREW BACK THE DIPSTICK!),

- wait a second and pull out the stick, see the level (The oil level must be in the

middle of the min. and max. warning lines!)

Snapping unit main gearbox

Grease filling hole

Grease drain hole

Grease filling hole/

nyílás/

dipstick

Maintenance and lubrication

Oil drain bolt

Grease filling hole/

Chopper gearbox

nyílás/

dipstick
