The right order of the cylinders movement during folding is the following:
1. The locking cylinders (D1, D2) and plastic hinged dividers (B1, B2) have to
extend until the end positions.
2. After the 1. Point the lifting cylinders (A1, A2) must fold the wings.
If the lifting cylinders start before the other cylinders (D1, D2, B1, B2) reach their
end position, then the pressure relief valve's adjuster screw has to be turned a half
turn clockwise.
Repeat this steps until the previously mentioned order is achieved.

6.5 Mounting to a different type of combine

To mount the header to a different type of combine a "Mounting kit" is required,
more information about them can be found in the spare parts catalogue, and our
customer support can provide help as well. The mounting kits can be ordered from
the manufacturer.
In case of mounting the header to a different type of combine
always mount every safety plate included in the mounting kit!
Mounting the corn head on the combine
WARNING!

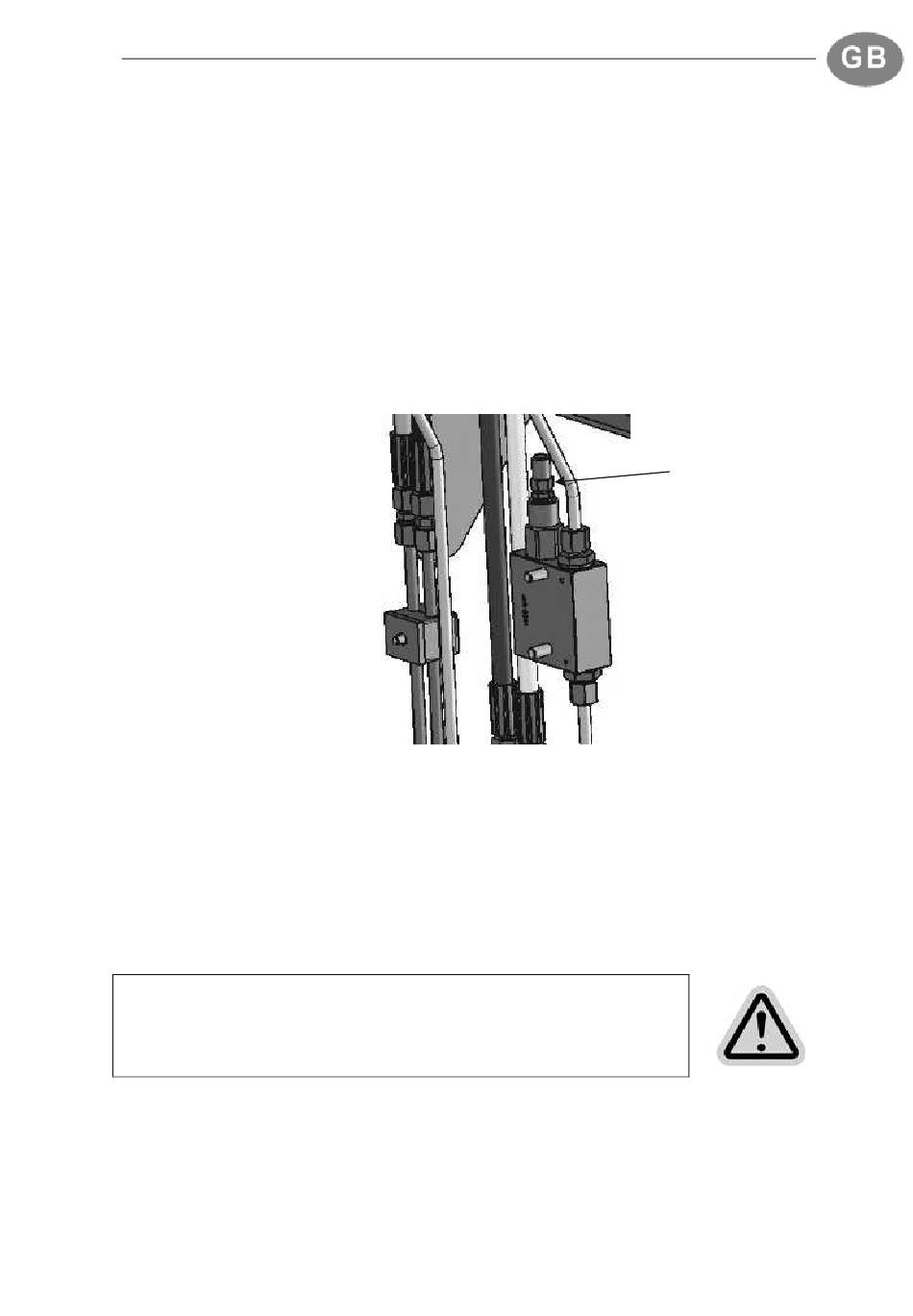

Adjuster screw
