Technical documentation for assembling the sunflower saver net

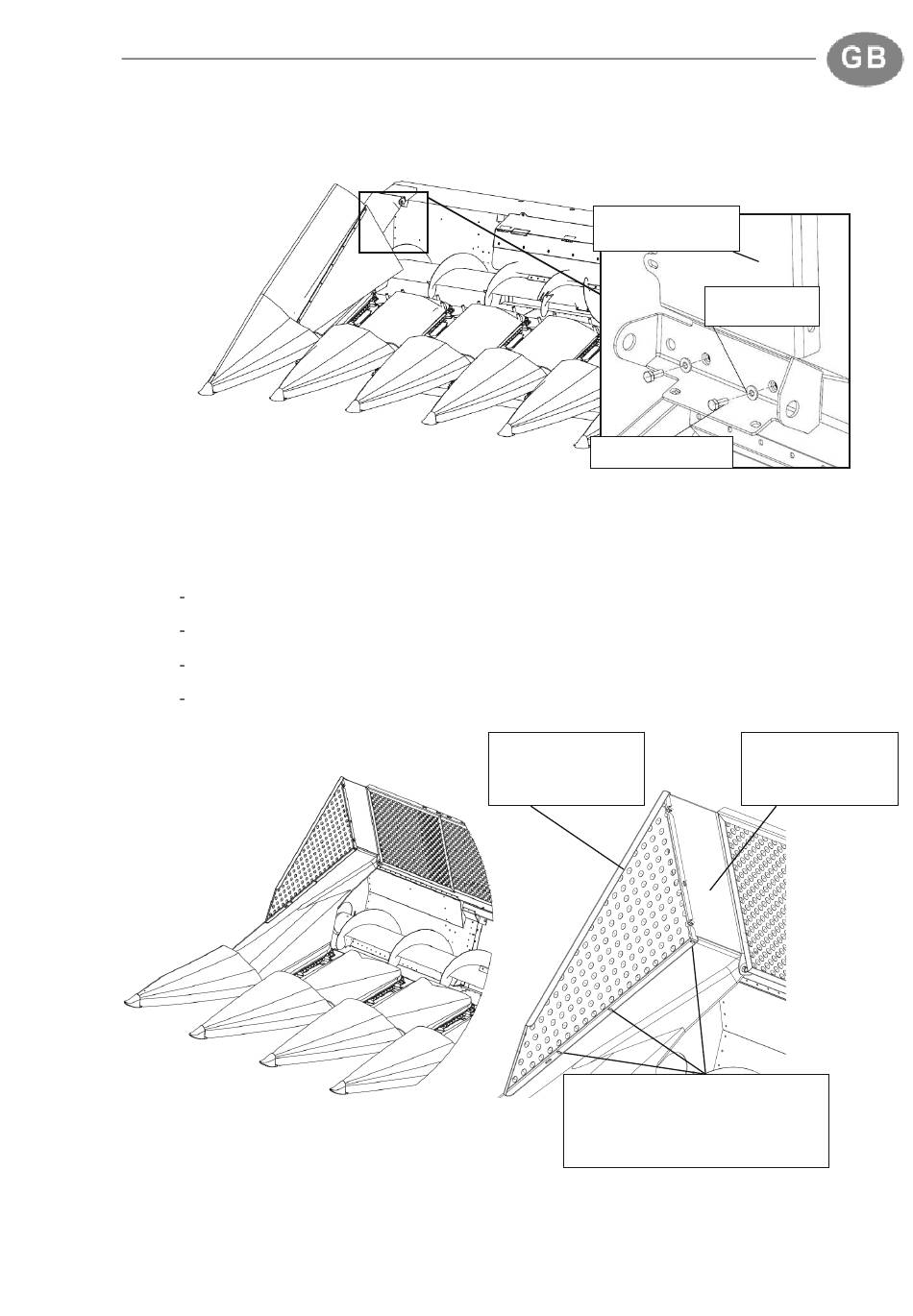

9.4 Mounting the outer holders

Replace the pre-built holders: 1.376.721 to 1.379.795; 1.376.722 to 1.379.796

Mark the locations of the holes on the plastic covers

Drill the holes with the diameter of 9mm

Fasten plastic insert nuts

Fasten the side nets with M8x20 bolts to the plastic covers.

1.379.795 – RH

1.379.796 – LH

M8 x 30 bolt

1.379.813 – RH

1.379.814 – LH

The location of the insert nuts

and where the net is fastened

to the plastic covers

M8 washer

1.379.795 – RH

1.379.796 – LH
