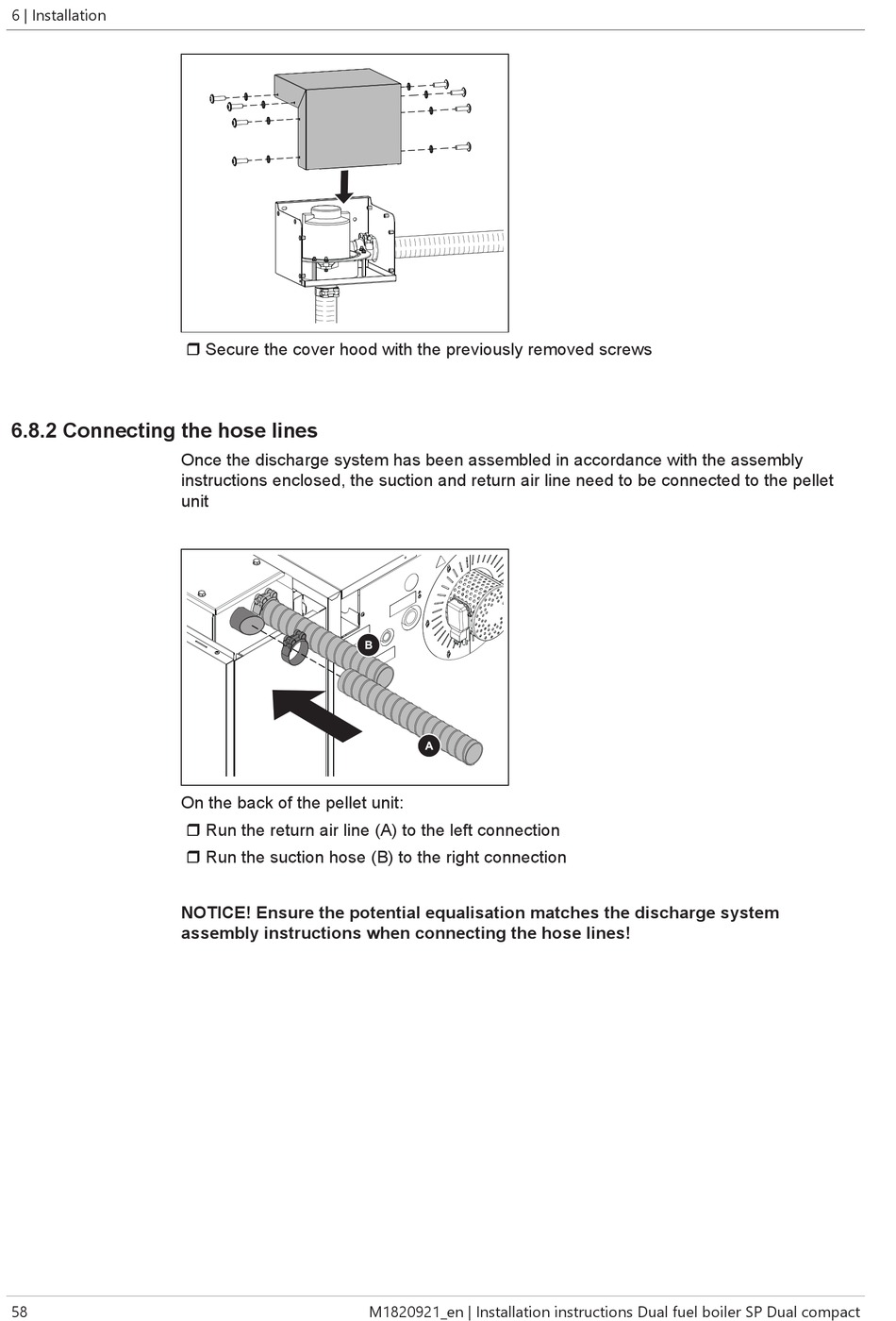

6 | Installation

6.8.2 Connecting the hose lines

r Secure the cover hood with the previously removed screws

Once the discharge system has been assembled in accordance with the assembly

instructions enclosed, the suction and return air line need to be connected to the pellet

unit

On the back of the pellet unit:

r Run the return air line (A) to the left connection

r Run the suction hose (B) to the right connection

NOTICE! Ensure the potential equalisation matches the discharge system

assembly instructions when connecting the hose lines!

M1820921_en | Installation instructions Dual fuel boiler SP Dual compact
