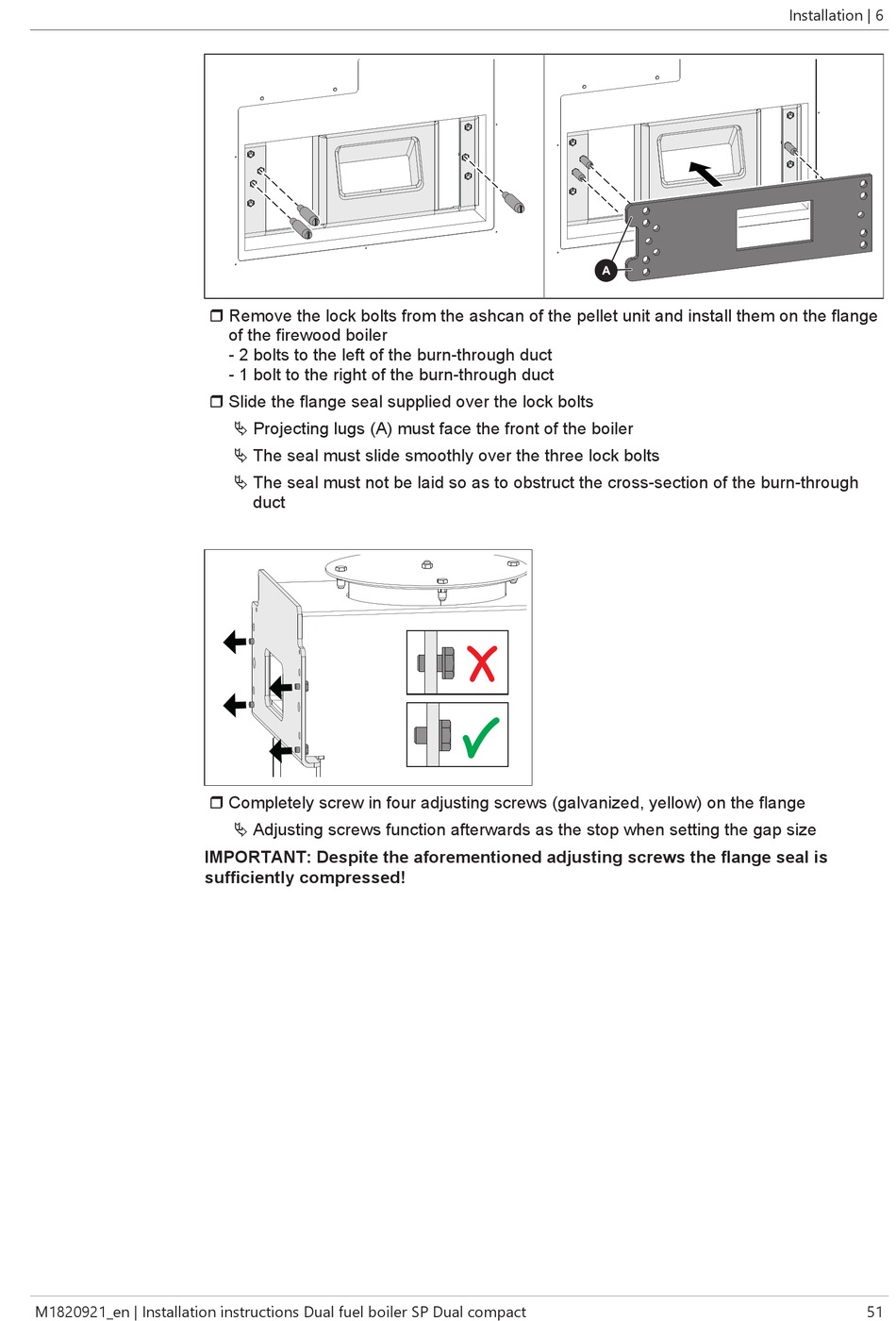

M1820921_en | Installation instructions Dual fuel boiler SP Dual compact
r Remove the lock bolts from the ashcan of the pellet unit and install them on the flange
of the firewood boiler
- 2 bolts to the left of the burn-through duct
- 1 bolt to the right of the burn-through duct
r Slide the flange seal supplied over the lock bolts
Ä Projecting lugs (A) must face the front of the boiler
Ä The seal must slide smoothly over the three lock bolts
Ä The seal must not be laid so as to obstruct the cross-section of the burn-through
duct
r Completely screw in four adjusting screws (galvanized, yellow) on the flange
Ä Adjusting screws function afterwards as the stop when setting the gap size
IMPORTANT: Despite the aforementioned adjusting screws the flange seal is
sufficiently compressed!
