6 | Installation
44

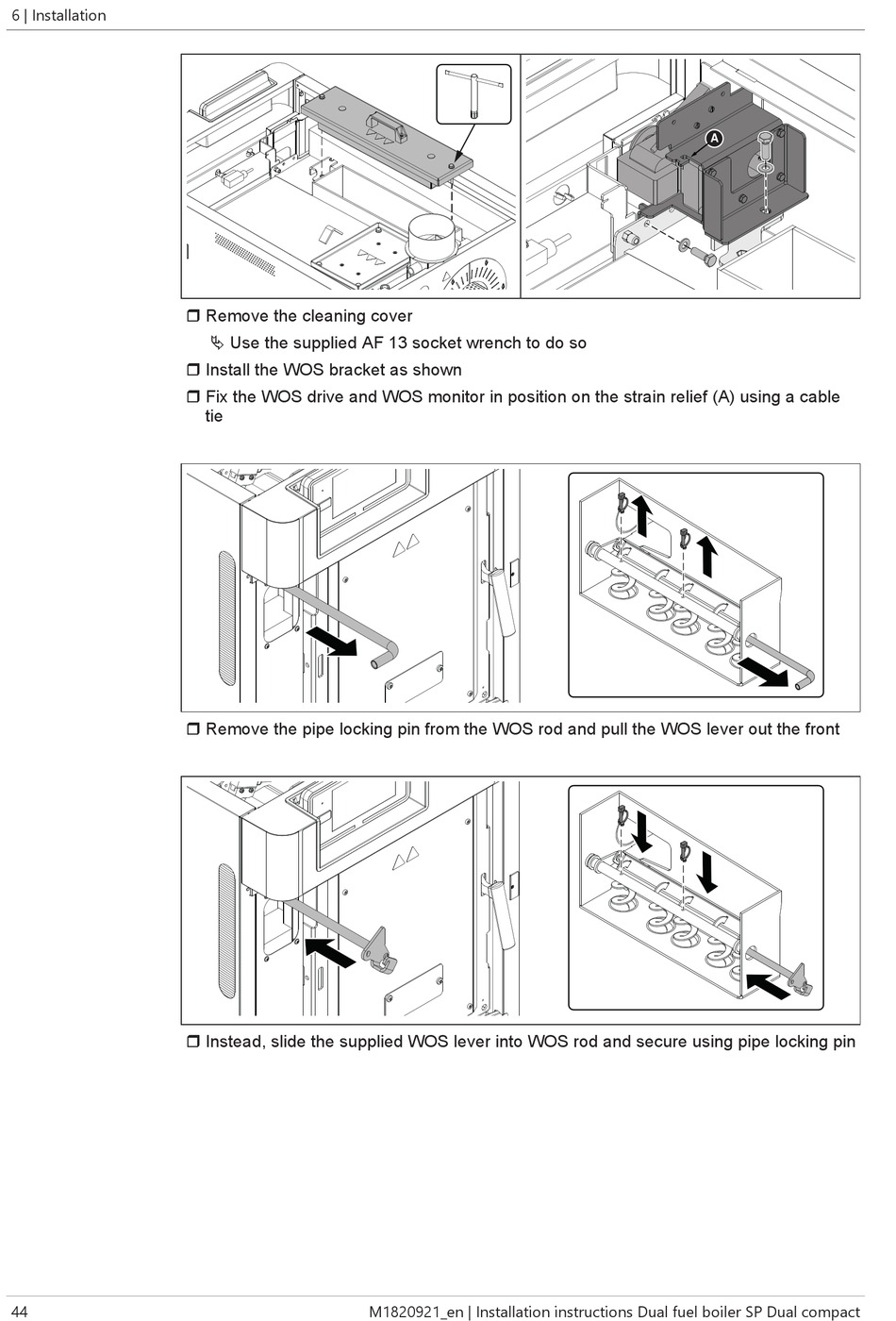

r Remove the cleaning cover
Ä Use the supplied AF 13 socket wrench to do so
r Install the WOS bracket as shown
r Fix the WOS drive and WOS monitor in position on the strain relief (A) using a cable
tie
r Remove the pipe locking pin from the WOS rod and pull the WOS lever out the front
r Instead, slide the supplied WOS lever into WOS rod and secure using pipe locking pin
M1820921_en | Installation instructions Dual fuel boiler SP Dual compact
A
