6 | Installation

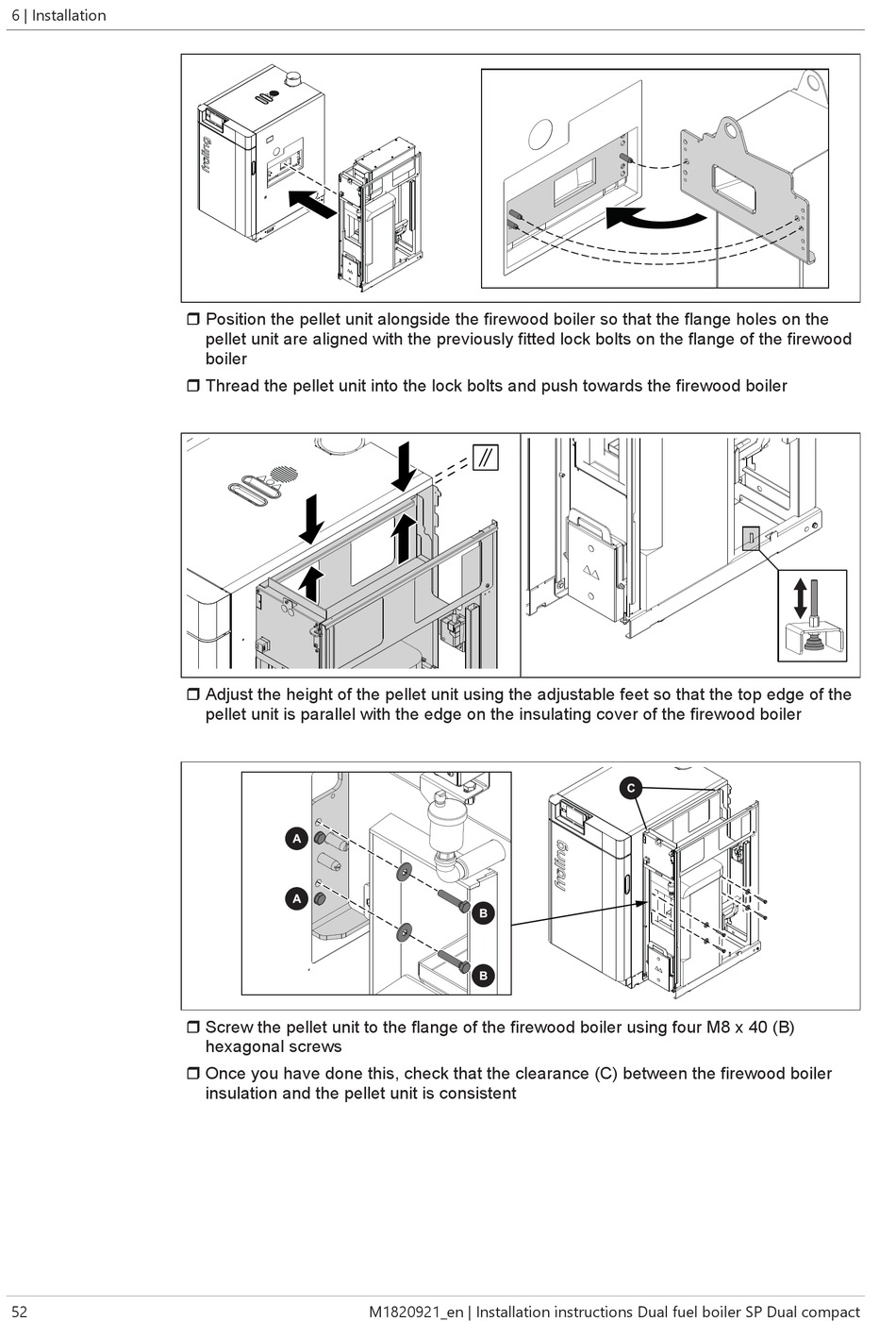

r Position the pellet unit alongside the firewood boiler so that the flange holes on the

pellet unit are aligned with the previously fitted lock bolts on the flange of the firewood

boiler

r Thread the pellet unit into the lock bolts and push towards the firewood boiler

r Adjust the height of the pellet unit using the adjustable feet so that the top edge of the

pellet unit is parallel with the edge on the insulating cover of the firewood boiler

r Screw the pellet unit to the flange of the firewood boiler using four M8 x 40 (B)

hexagonal screws

r Once you have done this, check that the clearance (C) between the firewood boiler

insulation and the pellet unit is consistent

M1820921_en | Installation instructions Dual fuel boiler SP Dual compact
