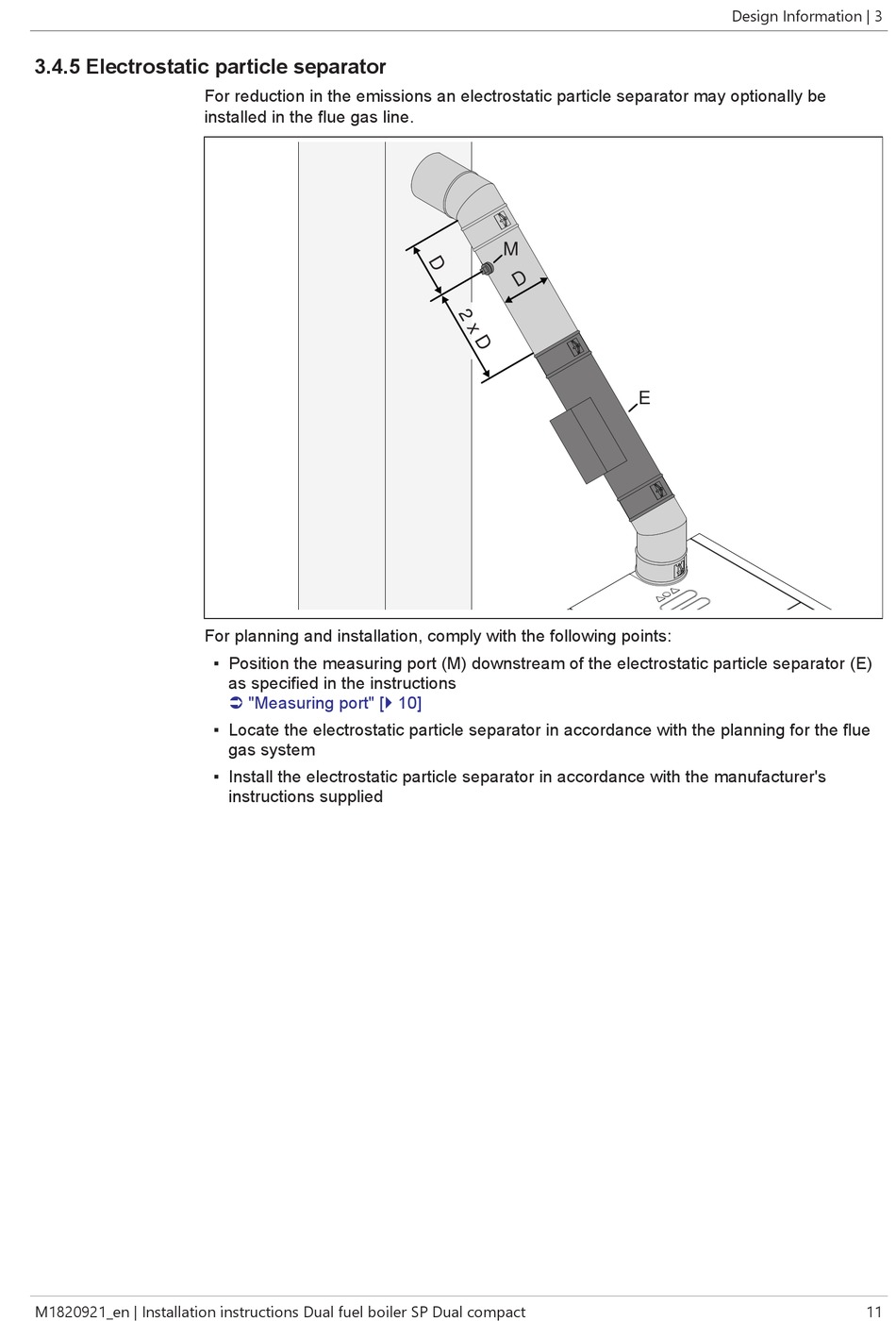

3.4.5 Electrostatic particle separator

M1820921_en | Installation instructions Dual fuel boiler SP Dual compact
For reduction in the emissions an electrostatic particle separator may optionally be
installed in the flue gas line.
For planning and installation, comply with the following points:
▪ Position the measuring port (M) downstream of the electrostatic particle separator (E)
as specified in the instructions
Ü "Measuring port" [} 10]
▪ Locate the electrostatic particle separator in accordance with the planning for the flue
gas system
▪ Install the electrostatic particle separator in accordance with the manufacturer's
instructions supplied
M
E
