M1820921_en | Installation instructions Dual fuel boiler SP Dual compact

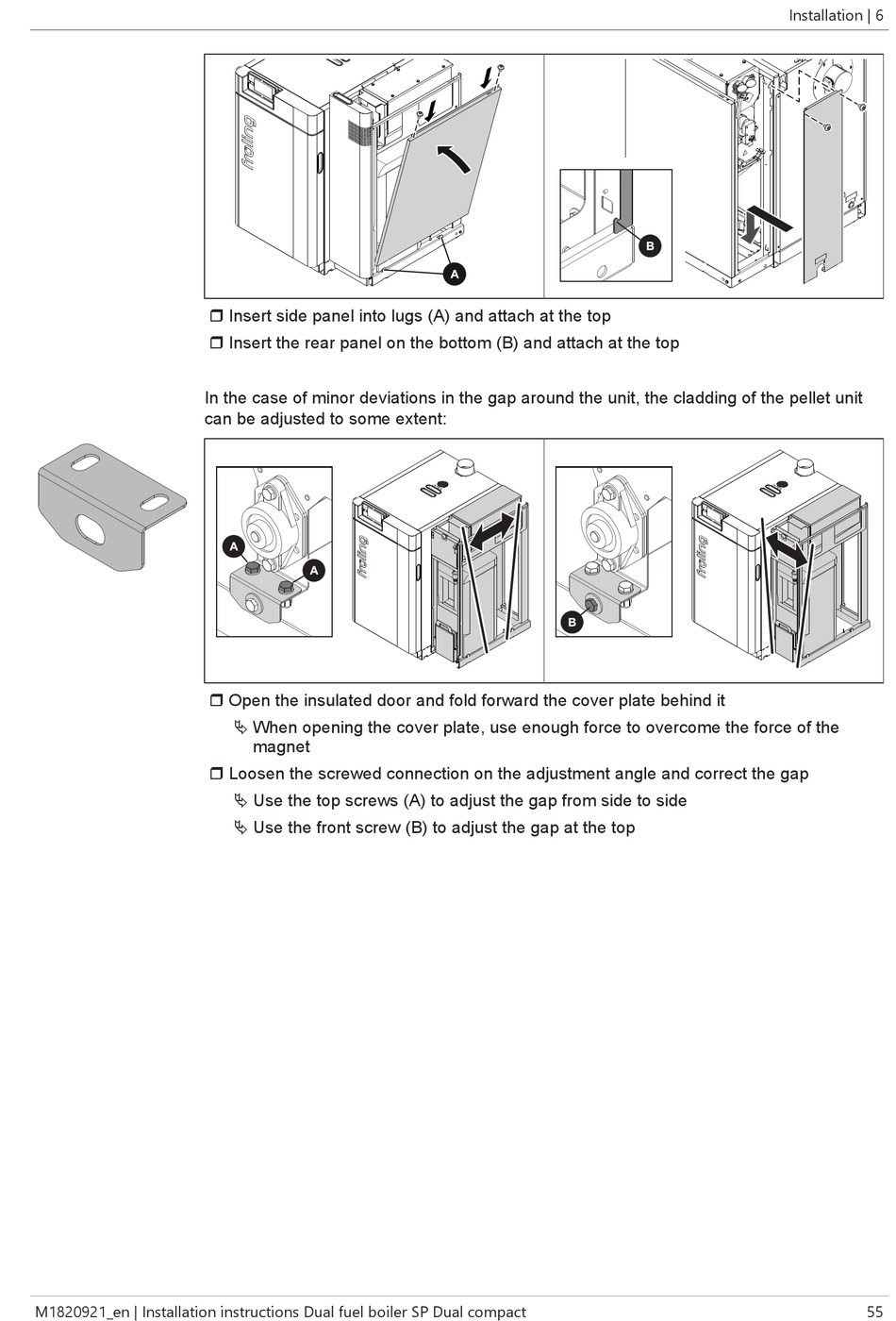

r Insert side panel into lugs (A) and attach at the top
r Insert the rear panel on the bottom (B) and attach at the top
In the case of minor deviations in the gap around the unit, the cladding of the pellet unit
can be adjusted to some extent:
r Open the insulated door and fold forward the cover plate behind it
Ä When opening the cover plate, use enough force to overcome the force of the
magnet
r Loosen the screwed connection on the adjustment angle and correct the gap
Ä Use the top screws (A) to adjust the gap from side to side
Ä Use the front screw (B) to adjust the gap at the top
Installation | 6
55
