EN - 4

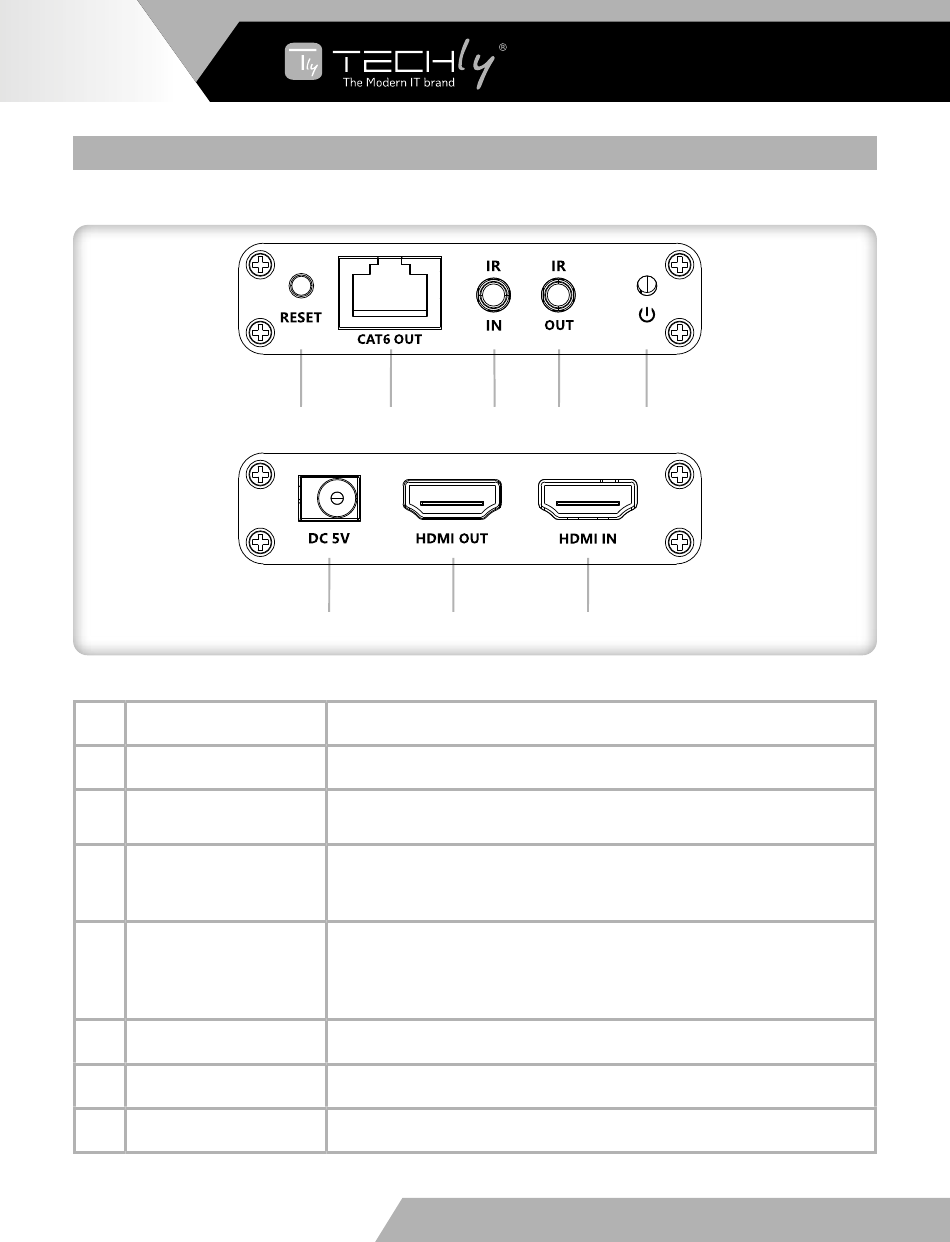

INTERFACES
1. Transmitter (TX)
➊
Reset button
➋
RJ45 signal output
➌
IR in
➍
IR out
➎
Power/signal indicator
➏
DC 5V input
➐
HDMI output
➑
HDMI input
WWW.TECHLY.COM
➊
➋
➏
➐
Press to restart the device
Output modulated HDMI signal
Connect the IR receiver extension cable to ensure that the
remote control used is within the range of the IR receiving device
Connect the IR blaster extension cable, please keep the infrared
transmitter as close as possible to the signal source device when
using
a. When power is on and no HDMI signal is transmitted,
the indicator flashes
b. When power is on and HDMI signal is transmitted,
the indicator is always on
Connect to the 5V 500mA DC power adapter
Connect to a local HDMI display device
Connect to a HDMI source device
CAT.6/7 CABLE WITH EDID
➌
➍
➎
➑
HDMI EXTENDER OVER
