AJAX CombiProtect User Manual page 2

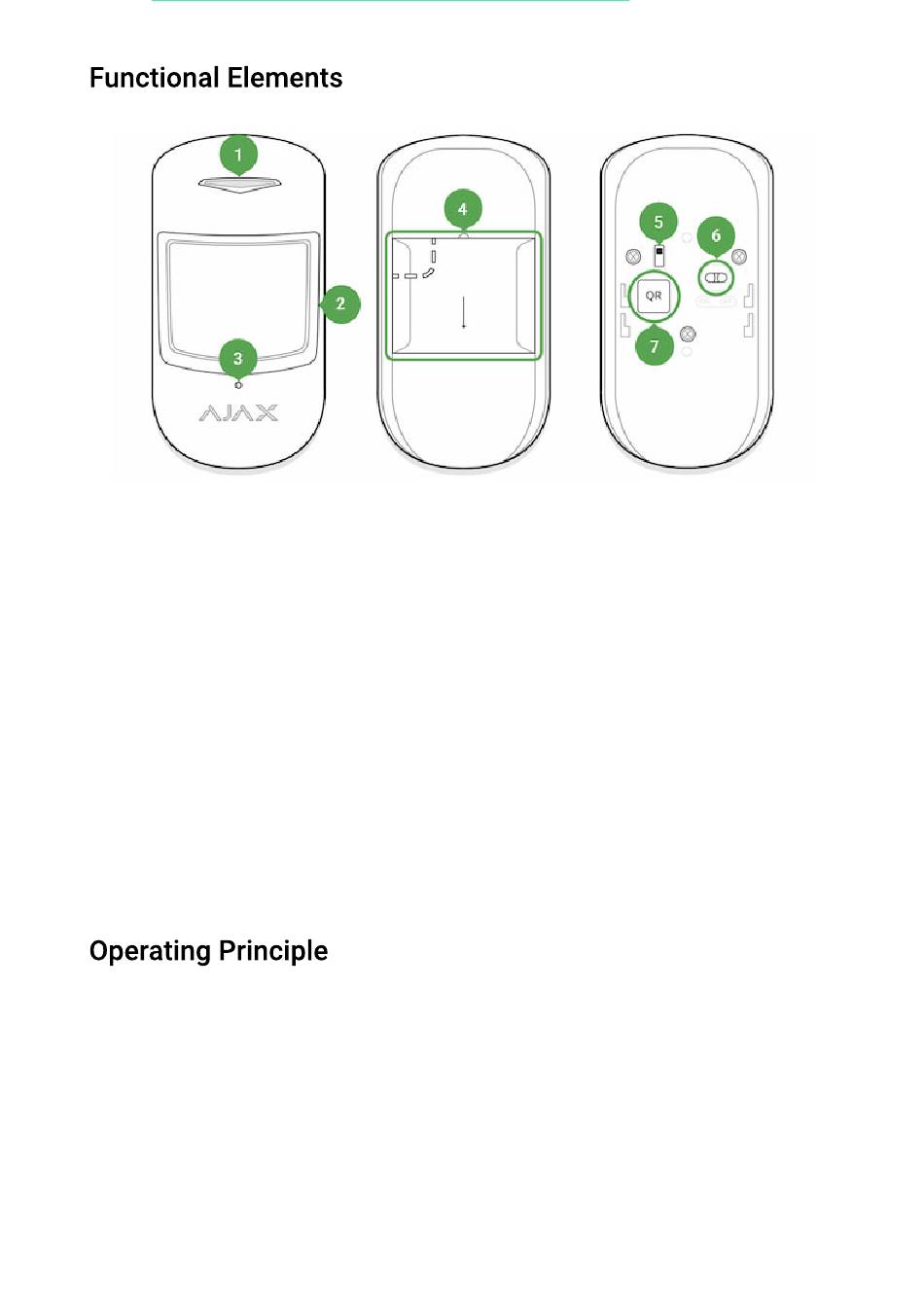

1. LED indicator
2. Motion detector lens
3. Microphone hole
4. SmartBracket attachment panel (perforated part is required for actuating the
tamper in case of any attempt to dismantle the detector)
5. Tamper button
6. Device switch
7. QR code
CombiProtect combines two types of security devices – motion detector and
glass break detector.
Thermal PIR sensor detects intrusion into a protected room by detecting moving
objects with a temperature close to the temperature of the human body.
However, the detector can ignore domestic animals if the suitable sensitivity has
been chosen in the settings.
The electret microphone is responsible for glass break detection. The intelligent
