Updated April 22, 2021

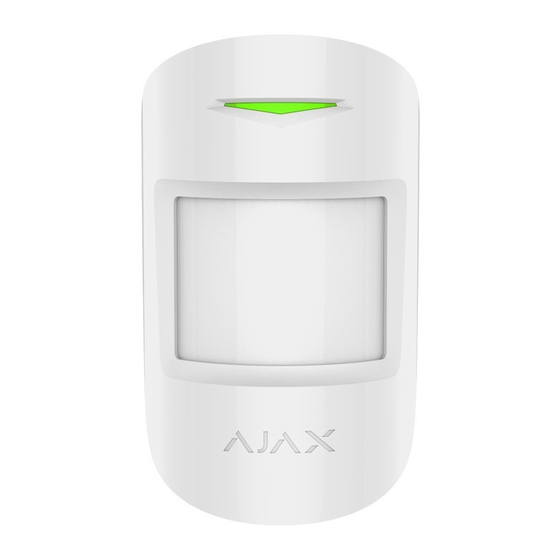

CombiProtect is a device combining a wireless motion detector with the viewing
angle of 88.5° and distance up to 12 meters, as well as a glass break detector
with the distance up to 9 meters. It can ignore animals and detects a person
within the protected zone from the first step. It can operate for up to 5 years
from a pre-installed battery and is used inside premises.
CombiProtect operates within the Ajax security system, connected to the
via
the protected
protocol. The communication range is up to 1200 meters
in the line of sight. In addition, the detector can be used as a part of third-party
security central units via the
or
integration
modules.
The detector is set up via a
for iOS and Android based
smartphones. The system notifies user of all events through push notifications,
SMS messages and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the
central monitoring station of a private security company.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AJAX CombiProtect
Summary of Contents for AJAX CombiProtect
- Page 1 Android based smartphones. The system notifies user of all events through push notifications, SMS messages and calls (if activated). The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company.
- Page 2 5. Tamper button 6. Device switch 7. QR code CombiProtect combines two types of security devices – motion detector and glass break detector. Thermal PIR sensor detects intrusion into a protected room by detecting moving objects with a temperature close to the temperature of the human body.
- Page 3 first dull blow, then ringing sound of falling chips, which prevents accidental actuation. CombiProtect does not detect glass breaking if the glass is covered with any film: shockproof, sunscreen, decorative or other. In order to detect the breaking of this type...
- Page 4 How to connect the detector to the hub: 1. Select the Add Device option in the Ajax app. 2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room. 3. Select Add — the countdown will begin.
- Page 5 — 36 seconds. To connect the detector to a third party security central unit using the integration module, follow the recommendations in the manual of the respective device. 1. Devices 2. CombiProtect Parameter Value Temperature of the detector. Measured on the Temperature...
- Page 6 By number of alarms — the device is automatically disabled when the number of alarms is exceeded (specified in the settings for Devices Auto Deactivation). The feature is configured in the Ajax PRO app. Firmware Detector firmware version Device ID Device identifier...
- Page 7 armed mode when using night mode Allows you to disable the flashing of the LED indicator during an alarm. Available for devices with firmware version 5.55.0.0 or higher Alarm LED indication Motion Detector If active, motion detector will be active Choosing the sensitivity level of the motion detector: High...
- Page 8 Two options are available: Entirely — the device will not execute system commands or participate in automation scenarios, and the system will ignore device alarms and other notifications Lid only — the system will ignore only notifications about the triggering of the device tamper button Temporary Deactivation The system can also automatically disable...
- Page 9 The device developed only for indoor use. Location of the CombiProtect depends on the remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted floors, large-size objects located within the room.
- Page 10 As a minimum, move the device even 20 cm shift can significantly improve the quality of reception. If after moving the device still has a low or unstable signal strength, use a The direction of the detector lens should be perpendicular to the probable way of intrusion into the room.
- Page 11 Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual CombiProtect detector can be attached to a vertical surface or in a corner. 1. Attach the SmartBracket panel to the surface using bundled screws, using at least two fixing points (one of them –...
- Page 12 8. within any premises with the temperature and humidity beyond the range of permissible limits; 9. closer than 1 m from the hub. Check the operational capability of the CombiProtect detector on a regular basis. Clean the detector body from dust, spider web and other contaminations as they...
- Page 13 smoothly light up and go out, if the detector detects any motion or if the tamper is actuated. To change the battery, switch off the device, loosen three screws and remove the front panel of the detector. Change the battery for a new one of type CR123A, observing the polarity.
- Page 14 1. CombiProtect 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) 4. Installation kit 5. Quick Start Guide Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to...
