CombiProtect User Manual | Ajax Systems Support

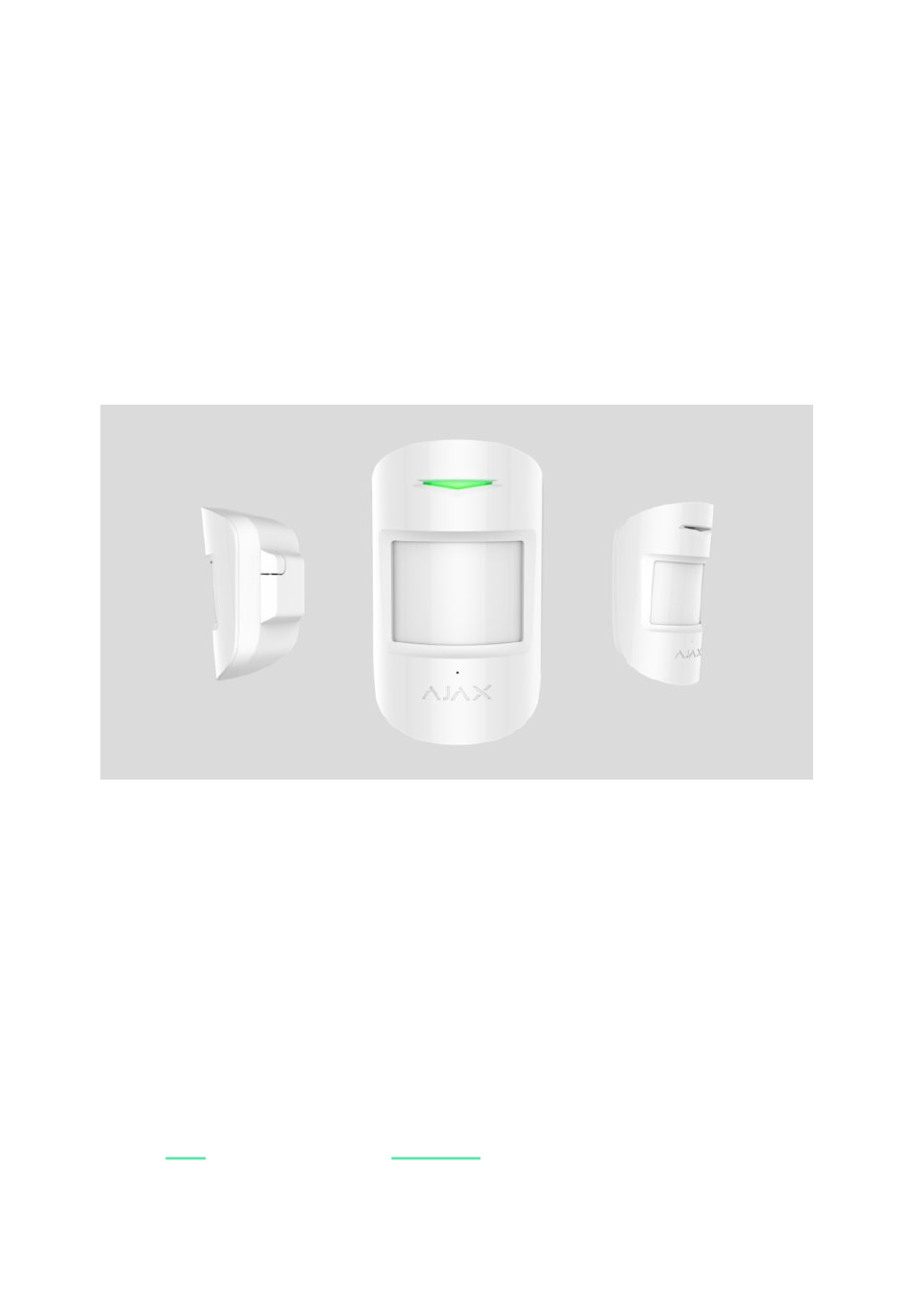

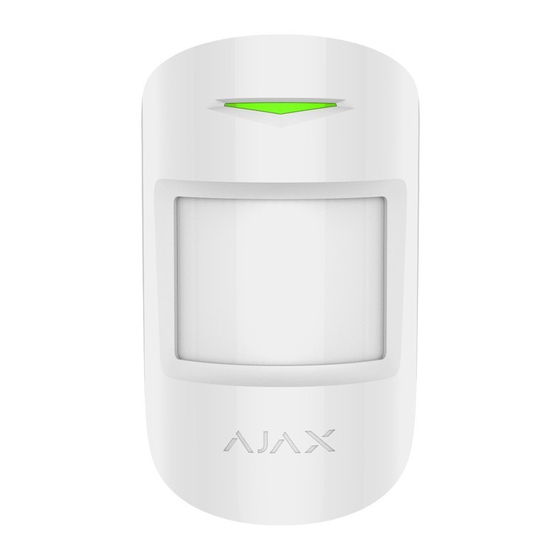

CombiProtect is a device combining a wireless motion detector with
the viewing angle of 88.5° and distance up to 12 meters, as well as a
glass break detector with the distance up to 9 meters. It can ignore
animals and detects a person within the protected zone from the
Frst step. It can operate for up to 5 years from a pre-installed battery
and is used inside premises.
CombiProtect operates within the Ajax security system, connected
to the
hub
range is up to 1200 meters in the line of sight. In addition, the
detector can be used as a part of third-party security central units
https://support.ajax.systems/en/manuals/combiprotect/?_ga=2.171224166.754703337.1648293156-504169808.1647685641
CombiProtect User Manual
Updated January 24, 2022
via the protected
Jeweller
protocol. The communication
26.03.2022 13.55
Side 1 af 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CombiProtect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX CombiProtect

Summary of Contents for AJAX CombiProtect

  • Page 1 CombiProtect User Manual Updated January 24, 2022 CombiProtect is a device combining a wireless motion detector with the viewing angle of 88.5° and distance up to 12 meters, as well as a glass break detector with the distance up to 9 meters. It can ignore animals and detects a person within the protected zone from the Frst step.

  • Page 2: Functional Elements

    The system notiFes user of all events through push notiFcations, SMS messages and calls (if activated). The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company.

  • Page 3: Operating Principle

    – Frst dull blow, then ringing sound of falling chips, which prevents accidental actuation. CombiProtect does not detect glass breaking if the glass is covered with any Flm: shockproof, sunscreen, decorative or other. In order to detect the...
  • Page 4 Connecting the Detector to the Ajax security system The detector is connected to the hub and set up via the Ajax Security system mobile application. To establish connection please locate the detector and the hub within the communication range and follow the device adding procedure.
  • Page 5 26.03.2022 13.55 How to connect the detector to the hub: 1. Select the Add Device option in the Ajax app. 2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room.
  • Page 6 Request for connection to the hub is transmitted for a short time at the time of switching on the device. If connection to the Ajax Hub failed, switch off the detector for 5 seconds and retry. The detector connected to the hub will appear in the list of devices of the hub in the application.
  • Page 7 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 uartBridge ocBridge Plus integration module, follow the recommendations in the manual of the respective device. States 1. Devices 2. CombiProtect Parameter Value Temperature of the detector. Measured Temperature on the processor and changes gradually...

  • Page 8: Setting Up The Detector

    CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 If active, the motion detector is always Motion Detector Always Active in the armed mode Glass Detector Sensitivity Sensitivity level of the glass detector If active, the glass detector is always in...
  • Page 9 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 2. CombiProtect 3. Settings Setting Value First Feld Detector name, can be edited Selecting the virtual room to which the Room device is assigned Delay When Entering, sec Selecting delay time when entering...
  • Page 10 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 animals and how to avoid it If active, the detector always registers Motion Detector Always Active motion If active, glass breaking detector will be Glass Detector Enabled active Choosing the sensitivity level of the...
  • Page 11 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 Entirely — the device will not execute system commands or participate in automation scenarios, and the system will ignore device alarms and other notiFcations Lid only — the system will ignore...

  • Page 12: Detector Testing

    Replacement manual Detector Testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when using the standard settings. The time of the start depends on the settings of the detector polling period (the paragraph on “Jeweller”...
  • Page 13 The device developed only for indoor use. Location of the CombiProtect depends on the remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted foors, large-size objects located within the room.
  • Page 14 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 Make sure that any furniture, domestic plants, vases, decorative or glass structures do not block the Feld of view of the detector. We recommend installing the detector at the height of 2.4 meters.
  • Page 15 Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual CombiProtect detector can be attached to a vertical surface or in a corner. https://support.ajax.systems/en/manuals/combiprotect/?_ga=2.171224166.754703337.1648293156-504169808.1647685641 Side 15 af 21...
  • Page 16 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 1. Attach the SmartBracket panel to the surface using bundled screws, using at least two Fxing points (one of them – above the tamper). If you select other attachment hardware, make sure that they do not damage or deform the panel.

  • Page 17: Detector Maintenance

    9. closer than 1 m from the hub. Detector Maintenance Check the operational capability of the CombiProtect detector on a regular basis. Clean the detector body from dust, spider web and other contaminations as they appear. Use soft dry napkin suitable for equipment maintenance.

  • Page 18: Tech Specs

    To change the battery, switch off the device, loosen three screws and remove the front panel of the detector. Change the battery for a new one of type CR123A, observing the polarity. How long Ajax devices operate on batteries, and what affects this Battery Replacement Tech Specs...
  • Page 19 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 animals and how to avoid it > Glass break detection distance Up to 9 m Microphone coverage angle 180° Tamper protection Jeweller Radio communication protocol Learn more 866.0 – 866.5 MHz 868.0 –...

  • Page 20: Complete Set

    CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 Overall dimensions 110 × 65 × 50 mm Weight 92 g Service life 10 years Security Grade 2, Environmental Class II in conformity with the requirements of CertiFcation EN 50131-1, EN 50131-2-7-1, EN 50131-...
  • Page 21 CombiProtect User Manual | Ajax Systems Support 26.03.2022 13.55 support service—in half of the cases, technical issues can be solved remotely! The full text of the warranty User Agreement Technical support: support@ajax.systems Subscribe to the newsletter about safe life. No spam...
